Creating a well‑lit workshop is more than an aesthetic choice – it improves safety, reduces eye strain and helps you do your best work. In dark garages or basement shops, shadows and glare can hide tool hazards and make it harder to see details. Upgrading your DIY overhead lighting is a high‑impact project that homeowners and makers can tackle themselves with basic tools. This guide will walk you through choosing the best workshop lighting, planning the layout and installing new lights so you can transform your workspace.
Why Choose LED Shop Lights?
Light‑emitting diode (LED) fixtures are the modern standard for workshops. The U.S. Department of Energy says that residential LEDs use at least 75% less energy and last up to 25 times longer than incandescent lighting. LEDs emit light directionally rather than wasting energy inside reflectors and diffusers; they generate very little heat. And their long lifespans mean fewer replacement bulbs. These benefits translate to lower operating costs and a cooler workspace.
Modern LED shop lights also eliminate the buzzing and flicker often associated with fluorescent tubes. They switch on instantly — even in unheated garages — and can be daisy‑chained through a single outlet. For energy‑efficient lighting for workshops, LEDs are the clear winner.
Key Considerations When Planning Overhead Lighting
Designing your DIY shop lighting project starts with understanding a few technical terms. The following sections summarize the factors that determine light quality and coverage.
Bulb Type
Most overhead shop lights come in either fluorescent or LED models. LEDs are becoming more affordable and offer many advantages over fluorescent tubes. They don’t flicker, consume less energy, and turn on instantly even in cold environments, while providing bright illumination.
Color Temperature
Color temperature describes how “warm” or “cool” the light appears. The industry measures it in Kelvins (K). Warm white (around 2,700 K) is cozy but can distort color rendition, while daylight bulbs around 5,000 K provide bright, neutral illumination ideal for woodworking and garages. Some makers prefer a slightly warmer 4,000 K light, but 5,000 K is a good starting point.
Color Rendering Index (CRI)
CRI measures how accurately a light source displays colors; it ranges from 0 to 100. When working with finishes or stains, you want a high CRI so that wood tones look natural. The industry recommends a CRI of 92–95 for LED tube lights.
Installation Type
Shop lights are available as plug‑in (linkable) units or fixtures that must be hardwired to your electrical system. Plug‑in lights are easier to install and can be daisy‑chained. You plug the first light into an outlet and connect the rest. Hardwired fixtures may require fishing wires through the ceiling and might need a licensed electrician, but they give a cleaner look and free up outlets.
Lumens and Lumens per Square Foot
Lumens measure total light output. For a bright workshop, you need enough lumens to cover the square footage of your space. A good rule of thumb is 70–100 lumens per square foot for a woodshop with an 8-foot ceiling. To calculate the minimum lumens you need, multiply the square footage of your shop by 70. For example, a 12 × 16 ft (192 ft²) shop needs at least 13,440 lumens. Divide that by the lumen output of your chosen fixture to determine how many lights to buy.
Fixture Layout
Proper spacing prevents dark corners and overlapping shadows. Wood Magazine’s formulas for fixture positioning advise that you measure A, the distance from your main work surface to the ceiling; the distance between fixtures (B) should be no more than 1.5 times A, and the distance from a fixture to the wall (C) should be between one‑third and one‑half of B. For example, if your work surfaces are 36 in. high and your ceiling is 9 ft high, then A = 6 ft, B = 9 ft and C ≈ 4.5 ft. Using these ratios helps achieve even lighting across the room.
| Factor | Recommended range / notes |
| Color temperature (K) | 4,000 – 5,000 K (Day light white) |
| CRI (Color Rendering Index) | 92 – 95 |
| Lumens per square foot | 70 – 100 LM/ft² |
Table 1 – Suggested lighting specifications for home workshops based on recommended best practices.
How to Install Shop Lights: Step‑by‑Step
With a plan in place, installing overhead shop lights is straightforward. Gather your materials: LED shop lights (linkable or hardwired), mounting hardware, a drill/driver, screws, a stud finder, measuring tape, a ladder, and safety goggles. If you’re using plug‑in lights, ensure you have enough outlets or extension cords rated for the load. Always turn off the power at the breaker when working with electrical wiring.
- Mark the layout. Use the formula above to mark the centerline for each row of lights on your ceiling. Measure the distance (B) between fixtures and (C) from the walls.
- Locate the ceiling joists or anchors. Use a stud finder to locate joists in drywall ceilings. If joists don’t align with your layout, install anchors rated for the weight of your fixtures.

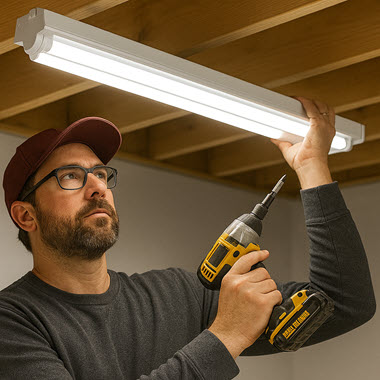

- Mount the fixtures. For plug‑in lights, mount the first light near an outlet and follow the manufacturer’s instructions to hang the fixtures. If you’re installing hardwired lights, follow local codes and consider hiring an electrician if you’re not comfortable with electrical work.
- Connect and secure wiring. Plug‑in linkable lights connect; hide cords using cable clips along the ceiling. For hardwired fixtures, connect wires (hot, neutral and ground) using wire nuts and secure them in junction boxes.
- Test and adjust. Turn on the circuit or plug in the lights. Check for even coverage and reposition fixtures if necessary. Adjust the number of lights if the space feels dim; consider adding task lighting over specific workbenches.
Budget‑Friendly Lighting Tips
A great lighting setup for a garage workspace doesn’t have to break the bank. LED prices continue to drop, and choosing fixtures with integrated LEDs eliminates the cost of replacement tubes. Linkable shop lights save on installation costs because you only need one outlet and no hardwiring. For maximum bang for your buck:
- Start with the lumen calculation; buy only as many lights as you need.
- Look for ENERGY STAR‑rated lights to maximise efficiency and qualify for rebates.
- Consider a combination of overhead shop lights and portable task lights to target key work areas.
- If you have a limited budget, install lights in phases, beginning with the primary workbench and expanding as funds allow.
