Wera Tools 4pc VDE-Insulated Self-Setting Spanner Set

Wera Tools

Please follow our Community Guidelines and be kind!

Description

Wera Tools 4pc VDE-Insulated Self-Setting Spanner Set

Individually tested tools as per IEC 60900 at 10000 V for safe working at the approved voltage of 1000 V. The adjustable VDE spanner continuously and automatically grips all hexagonal sizes in the indicated range of dimensions - metric and imperial. The integrated lever mechanism securely clamps the hexagon screw or bolt between the jaws, which significantly reduces the risk of slippage or damage. The ratchet feature ensures fast and consistent screwdriving without removing the tool. By using the corner-width rectangular prisms, a back-pivoting angle of only 30 Deg can be achieved. The single-arm design, in conjunction with the ratchet feature and the corner-width prism, makes it possible to work even in confined spaces. The adjustable Joker 6004 VDE has a naturally comfortable handle thanks to the 2-component plastic insulation. Safety is increased by the anti-slip protection at the front end of the handle. The sliding function offers contactless and safe opening of the non-insulated jaws, thereby providing extra protection.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Warranty - PDF

Features

The compact textile box with four adjustable Joker 6004 VDE covers all metric and imperial dimensions in the field of application from 7 to 19 mm or 1/4 In. to 3/4 In.

Individually tested tools with insulated handles for safe working up to 1000V, with anti-slip protection and sliding function for contactless and safe opening of the non-insulated jaws

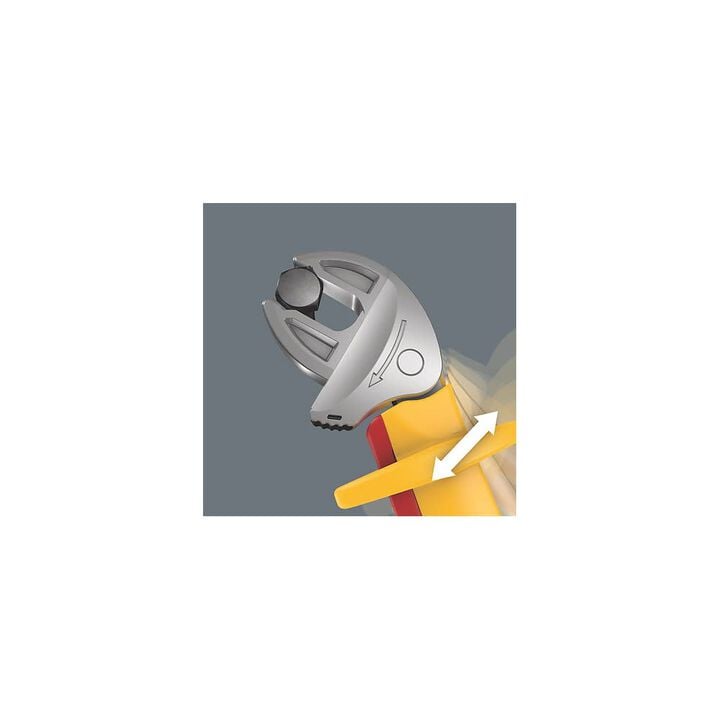

Automatic and continuous grip of hexagon screws and bolts

Lever mechanism when gripping avoids slipping and damage

Fast and consistent screwdriving without removing the wrench thanks to mechanical ratchet function

Return angle of only 30 Deg through placement in the corner-width rectangular prisms in the mouth

Includes 6004 Joker VDE XS VDE-insulated, self-setting spanner: 7-10 x 1/4-3/8 In. x 119 mm, 6004 Joker VDE S VDE-insulated, self-setting spanner: 10-13 x 7/16-1/2 In. x 155 mm, 6004 Joker VDE M VDE-insulated, self-setting spanner: 13-16 x 1/2-5/8 In. x 190 mm, 6004 Joker VDE L VDE-insulated self-setting spanner: 16-19 x 5/8-3/4 in. x 226 mm, Hook and Loop Fastener Strip 120: 120 x 50 mm

Specifications

Brand Name

Wera Tools

Assembled Weight (lbs)

2.63

Country of Origin

Czech Republic

MFG Part # (OEM)

05020170001

Package Contents

(1) 6004 Joker VDE XS VDE-Insulated, Self-Setting Spanner, (1) 6004 Joker VDE S VDE-Insulated, Self-Setting Spanner, (1) 6004 Joker VDE M VDE-Insulated, Self-Setting Spanner, (1) 6004 Joker VDE L VDE-Insulated, Self-Setting Spanner, (1) Hook and Loop Fastener Strip 120
