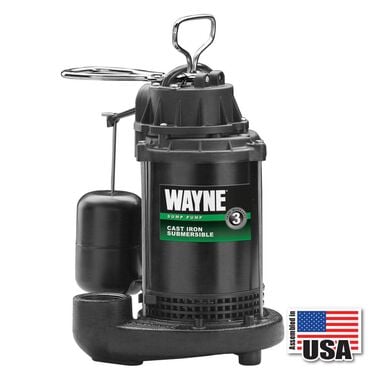

Wayne Water Systems 1/3HP Cast Iron Submersible Sump Pump
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Assembled in US, with foreign and domestic components
Submersible cast iron and coated steel sump pump with vertical float switch
Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit
1/3 HP; max. flow rate is 3800 gallons per hour; 2700 gph at 10 Ft. of discharge lift
Epoxy-coated steel motor housing and rugged, cast iron pump base
Fully submersible
1-1/2 In. NPT discharge
For use in 11 In. diameter or larger sump basins; 9 In. on level and 4 In. off level
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival
- Est. Ship
- Est. Arrival
- Get it as soon as {0}
Edit location
Add Zip Code
Est. Email Delivery: within 24 hours
Made In USAWayne Water Systems 1/3HP Cast Iron Submersible Sump Pump
Sale:
Was:
Out of Stock
Selected Delivery Method:
Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Ready within 4 hours
Not Available for Pick Up
Qty
(Max. order of 1,000)
Secure Checkout
Pay with
Product Details

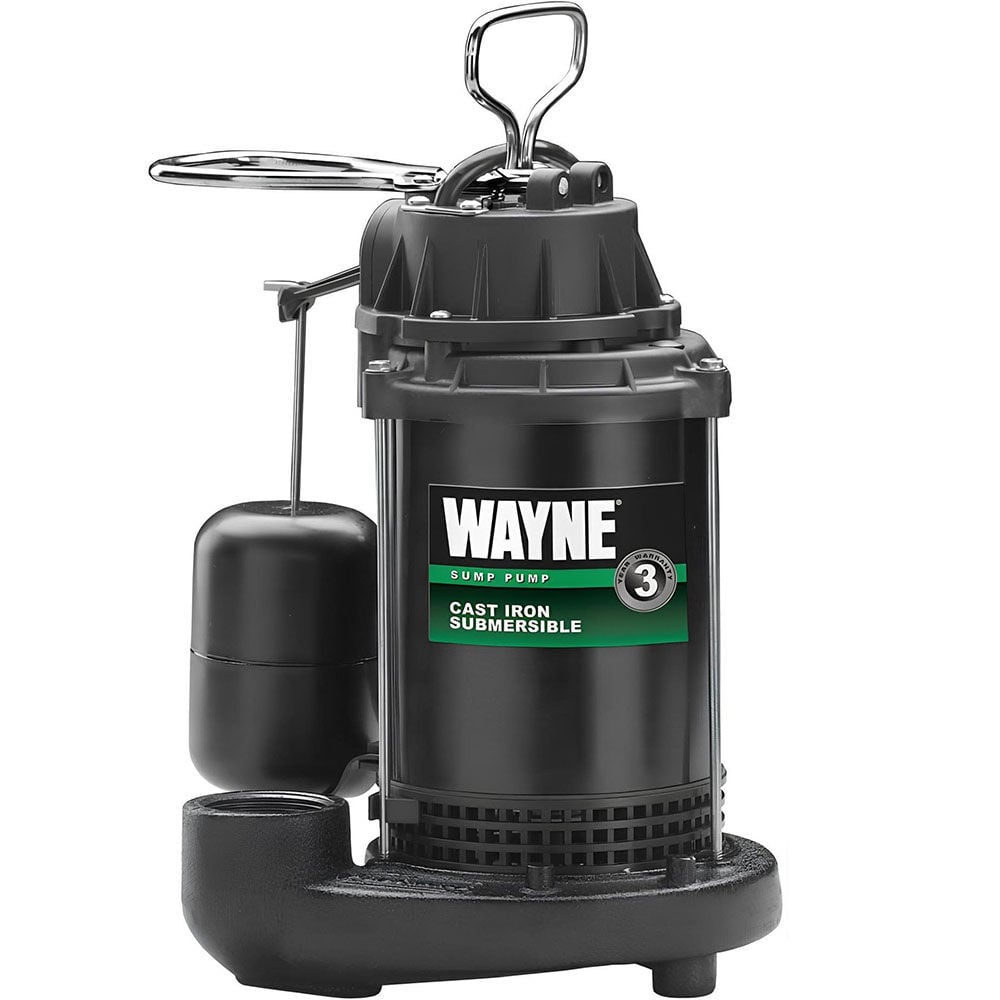

Wayne Water Systems 1/3HP Cast Iron Submersible Sump Pump
Wayne Water Systems
Description
Wayne Water Systems 1/3HP Cast Iron Submersible Sump Pump
Wayne's CDU790 features a durable cast iron base and epoxy-coated housing for long life and quiet operation. This submersible pump is designed for 11 In. or larger sump pits. The cu series is one of the most popular replacement pumps in America, and proudly assembled in the USA. The ceramic mechanical seal assures long life in the most demanding applications and the 1-1/2 In. discharge allows easy installation plus maximum flow.
Features
Assembled in US, with foreign and domestic components
Submersible cast iron and coated steel sump pump with vertical float switch
Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit
1/3 HP; max. flow rate is 3800 gallons per hour; 2700 gph at 10 Ft. of discharge lift
Epoxy-coated steel motor housing and rugged, cast iron pump base
Fully submersible
1-1/2 In. NPT discharge
For use in 11 In. diameter or larger sump basins; 9 In. on level and 4 In. off level
Specifications
Brand Name
Wayne Water Systems
Amperage (A)
9.5
Assembled Weight (lbs)
16
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Flow Rating (gpm)
63.333333333333336
Horsepower (hp)
0.33
Impeller Material
Reinforced Thermoplastic
Inlet Size (in)
2.33
Length
8 ft
MFG Part # (OEM)
CDU790
Material
Plastic
Package Contents
1/3HP Cast Iron Submersible Sump Pump
Package Depth
0
Package Height
0
Package Weight
16
Package Weight (lbs)
16
Product Condition
New
Switch Type
Vertical
UPC
040066100016
Voltage
120
Warranty Type
3 Years Limited
