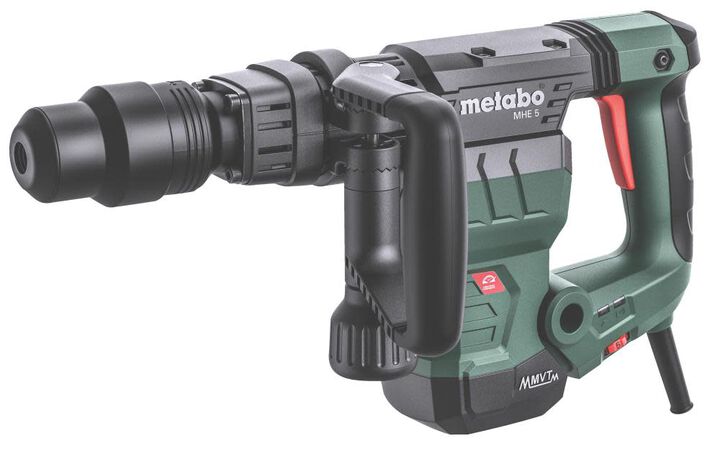

Metabo MHE 5 SDS MAX Chipping Hammer with Electronics, large image number 0
Metabo MHE 5 SDS MAX Chipping Hammer with Electronics, large image number 1
Metabo MHE 5 SDS MAX Chipping Hammer with Electronics, large image number 2
Previous Next
Metabo Metabo Brand Page
SKU# 600148620
4.9 out of 5 Customer Rating
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
  Free Shipping (Ground shipping to lower 48)
Metabo MHE 5 SDS MAX Chipping Hammer with Electronics
Out of Stock
Out of Stock
Qty
Secure Checkout

About this product

Metabo MHE 5 SDS MAX Chipping Hammer with Electronics

The Metabo MHE 5, SDS-MAX Chipping Hammer is German engineered for maximum productivity, durability and safety for extreme-duty use on renovation, construction and industrial work sites. The high efficiency 9.6 Amp motor is encapsulated to protect against harsh dust particles and combined with the extreme duty impact mechanism delivers powerful chiseling with 7.1 Joules (EPTA) and 3000 blows per minute. Metabo VibraTech (MVT) Technology provides ultimate user comfort utilizing a decoupled vibration-absorbing rear handle. The Metabo VC electronics package maintains the number of blows, even under heavy loads, thermal overload protection, soft start, and power interruption protection. An LED status light glows green when the tool is energized, and the service indicator LED will start flashing 8 working hours prior to the carbon brushes needing replacement. The tool also features a heavy duty die-cast aluminum gear-housing creating an extremely stable design and heat dissipation for long service life. The easily accessible lock-on switch for ease when chiseling continuously, and thumb wheel for precise speed/impact energy control offer user comfort and precision. The MHE 5 is compatible with the Metabo ESA-MAX Dust Extraction Set (623271000 - sold separately).

California Proposition 65 Warning.

Features

Good demolition performance thanks to 7.1 Joules and 3,000 blows per minute
Long service life thanks to extremely stable die-cast aluminum gear and motor housing
Metabo VibraTech (MVT) vibration dampening: decoupled handle
Adjustable front handle can be rotated 360° and adjusted for optimum working position
Ergonomically shaped, slim handle with large speed control trigger for comfortable work
Easily accessible lock-on switch for chiseling continuously
Optional impact energy reduction for precise spot chiseling and increased control
Vario- Constamatic (VC)-Full Wave Electronics for working at customized impact rates to suit the application material
Electronic soft start for precise chisel placement and control
Restart protection prevents unintentional start-up after power supply interruption
Overload protection protects the motor from overheating
Service indicator LED light flashes 8 working hours prior to needed carbon brush replacement
Status LED glows green when the tool is energized

Specifications

Brand Name
Metabo
Amperage (A)
9.6
Assembled Weight (lbs)
12.6
California Proposition 65 Warning Required
No
Chuck Design
Not Applicable
Chuck Size
SDS-Max
Color
Green
Country of Origin
China
CSA Certified
Yes
Electronic Speed Control
Yes
ETL Listed
No
Handle Type
D-Handle
Height (in)
5.73
Length
19 ft

MFG Part # (OEM)
600148620

Material
die cast aluminum
Maximum RPM
0
Net Tool Weight (lbs)
12.6
Package Contents
MHE 5, front handle, lubricant for tool shank end, duster, plastic carrying case

Product Condition
New

Reversible
No
Side Handle
Yes
Thin Wall Core Bit Capacity
No
UL Listed
No

UPC
400001028124

Variable Speed
Yes
Voltage
120
Warranty Type
3 Years Limited
Weight (lbs)
12.6

Leave a comment

Add Product

Please follow our Community Guidelines and be kind!

2 Comments

View full discussion

Lawrence Fay
2026-07-27T12:46:39.565Z Joined December 2024

was wondering what size of chisel will fit this product and is it compatible with any other brands chisel sets?

1
View full discussion

Duster Tools
Emblem
2026-07-27T13:58:18.056Z Joined February 2026

Hi Lawrence. This Hammer will accept all brands SDS Max, Hilti TE-Y, and TE-YX chisels.

0
