Southwire X TREME BOX Power Distribution Unit
Southwire

Please follow our Community Guidelines and be kind!

Description

Southwire X TREME BOX Power Distribution Unit

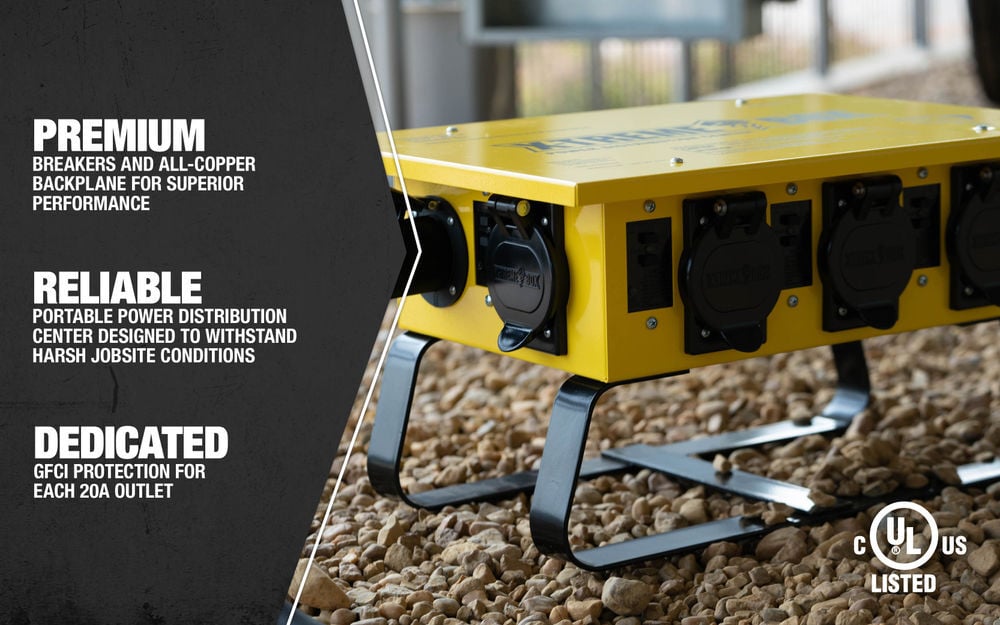

Southwire X-TREME BOX power boxes, sometimes called spider boxes or spider box, are a portable power distribution center that allows for temp power to be provided to a job site in a more effective way as it allows for power to be distributed more locally. The 6506UGSX is a single phase electrical distribution box that takes a 50 AMP 125/250v, 12, 000 watt input and distributes it to 6 20 AMP receptacles and 1 30 AMP receptacle. There is also a 50 AMP pass through for running portable power distribution boxes in series. It is a great temp power box with premium features like independent GFCI modules on the 20 amp outlets, premium breakers, and all-copper backplane. This X-TREME BOX is a Portable Power Distribution Unit that provides a quick and simple way to provide power in a multitude of situations. On industrial and residential jobsites, this unit effectively reduces labor costs in establishing power panels and GFCI's. Simply power the box with a 50 amp, 125/150 volt power supply cord. The power is then broken down into useable, 20 amp, 125 volt twist-lock outlets for jobsite related equipment. This unit has weather-resistant covers, making it perfect for both indoor and outdoor use. The Extreme Box has six GFCI protected NEMA 5-20R straight blade receptacles and one, NEMA L6-30, 250V, 30A locking outlet. All outlets are circuit breaker protected.

California Proposition 65 Warning.

Features

14 Ga. Steel Construction endures for years of use
Heavy-duty, impact & flame-resistant enclosure
GFCI Protection includes open neutral, reverse phasing, & 240V shut-off with indicator light
GFCI meets UL 943 requirements with 4-6 milliamp trip level, <25 milliseconds trip time
Rating: 50-Amp 125/250V 3 Pole 4 Wire, Power Inlet CS6375, Feed-Thru CS6369
cULus Listed, Type 3R Outdoor

Specifications

Brand Name
Southwire
Assembled Depth (in)
15.5
Assembled Width (in)
22
Color
Yellow
Country of Origin
United States
Height (in)
11.75
L5-20R Receptacle Count
0
L5-20R Receptacle GFI (Ground Fault Interrupter) circuits?
No
L5-20R Receptacle Type
Twist Locking
L6-30R Receptacle Count
1
L6-30R Receptacle Type
Twist Locking

MFG Part # (OEM)
6506UGSX

Net Tool Weight (lbs)
18.58
Overload Protection
No
Package Contents
TEMP PWR BOX STRT BLD SLED

Product Condition
New

Restrictions
No Restrictions

UPC
029892029845

Warranty Type
Lifetime against Manufacturer's Defects
Weather Resistant
Yes
Weight (lbs)
28.459
