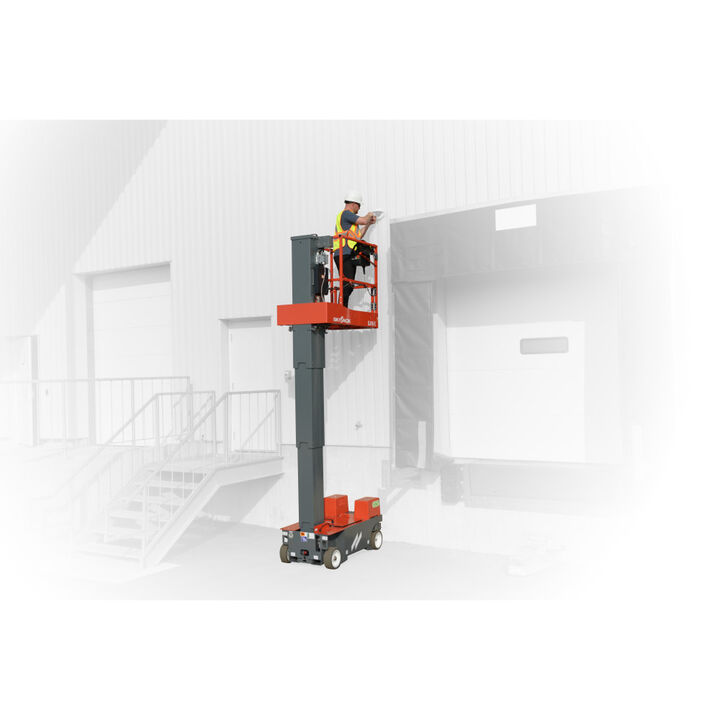

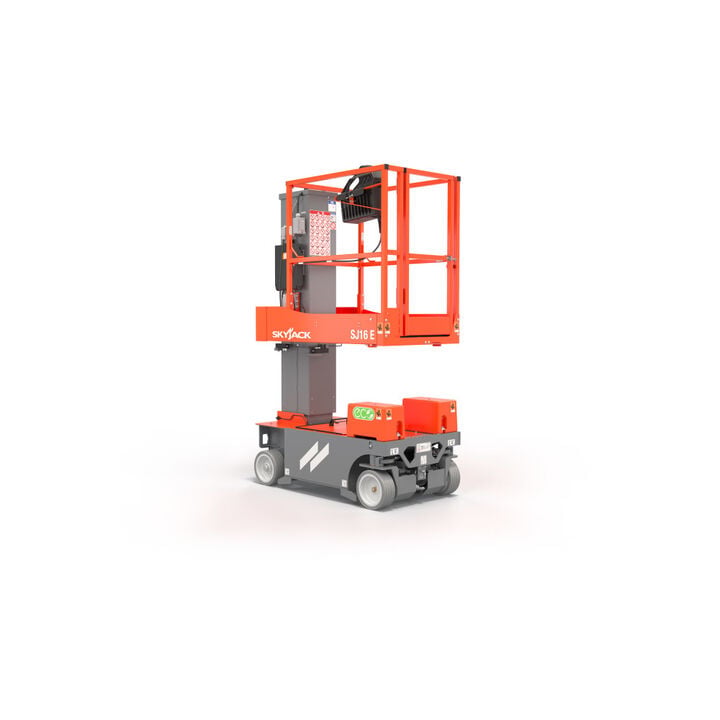

Skyjack 21.5 ft Working Height Vertical Mast Lift

SKU# SJ16 E
4.5 out of 5 Customer Rating
Skyjack 21.5 ft Working Height Vertical Mast Lift, large image number 0
Skyjack 21.5 ft Working Height Vertical Mast Lift, large image number 1
Skyjack 21.5 ft Working Height Vertical Mast Lift, large image number 2
Skyjack 21.5 ft Working Height Vertical Mast Lift, large image number 3
Skyjack 21.5 ft Working Height Vertical Mast Lift, large image number 4
Skyjack 21.5 ft Working Height Vertical Mast Lift, large image number 5
Skyjack 21.5 ft Working Height Vertical Mast Lift, large image number 6
Previous Next
+ 2 more
Call for Pricing Information: 833-860-7137
Made In USA

Freight Shipping Rates Apply
Affirm
Pay as low as $669/mo.
with Affirm

Product Details

Skyjack 21.5 ft Working Height Vertical Mast Lift
Skyjack

Please follow our Community Guidelines and be kind!

Description

Skyjack 21.5 ft Working Height Vertical Mast Lift

Skyjack's Next Generation Vertical Mast Lifts provide a quiet and versatile package with zero emissions and other ECO benefits. Variable speed direct AC electric drive provides exceptional duty cycles, while their proportional drive and lift controls offer superior drive efficiency and consistent torque. Located at Acme Equipment 3401 Gateway Dr Grand Forks, ND 58203.

California Proposition 65 Warning.

Manuals

Specification - PDF

Features

Variable speed, front two wheel electric drive, Overload sensing system
Drivable at full height with platform retracted, 90 Deg Steering (zero inside turning radius), Dual holding brakes
On-board visual interface with diagnostic capabilities, Shroud style, impact resistant composite control box
Proportional controls for drive & lift functions, 16 In. (0.41 m) Traversing platform
Multistage lift cylinders, 24VDC power source, 2 x 12V Batteries
Low voltage battery protection, 25% Gradeability
Solid rubber, non-marking tires, Fixed pothole protection system, 110V AC outlet at platform with GFI
Tilt alarm with drive & lift cut-out (2.5 Deg x 1.5 Deg), All motion audible alarm
Lanyard attachment points, Operator horn, Lift rings/tie downs
Half height spring hinged entry gate, Removable oil filter, Forklift pockets (2.5 In. x 5 In.), Telematics ready

Specifications

Brand Name
Skyjack
Assembled Weight (lbs)
2054
Country of Origin
United States
Drive Motor System
Electric
Ground Clearance (in)
1 Stowed, 3.5 Raised

MFG Part # (OEM)
SJ16 E

Overall Length (ft)
4.5
Overall Length (in)
54
Overall Width (in)
30.5
Package Contents
Vertical Mast Lift
Platform Length (in)
36
Platform Width (in)
27

Product Condition
New

Restrictions
CA Prop 65
Tire Size
10 x 4 In.
Turning Radius (in)
55

UPC
419016000520

Warranty Type
2 Years
Weight (lbs)
2054
