Simpson Strong-Tie Titen HD 3/8 x 1-3/4 Inch Carbon Steel Mechanical Screw Anchor, 50 Pieces

Description

Simpson Strong-Tie Titen HD 3/8 x 1-3/4 Inch Carbon Steel Mechanical Screw Anchor, 50 Pieces

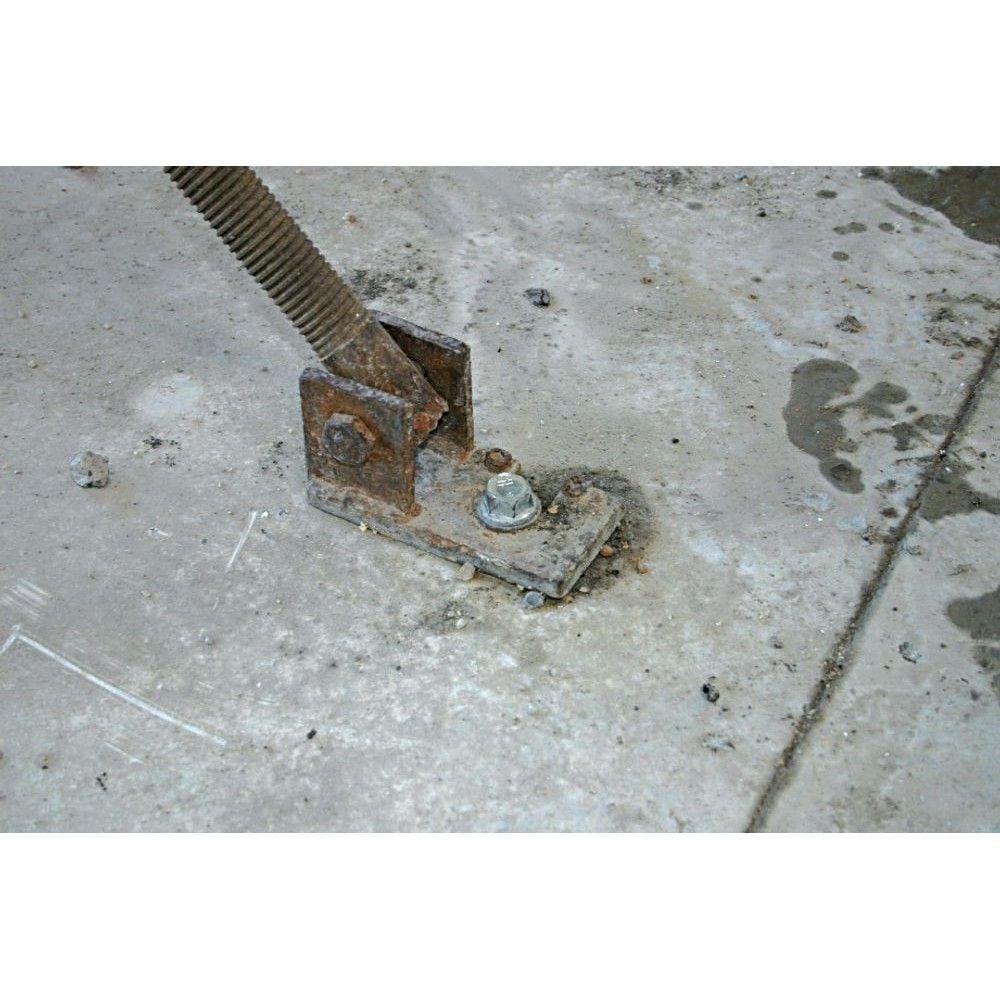

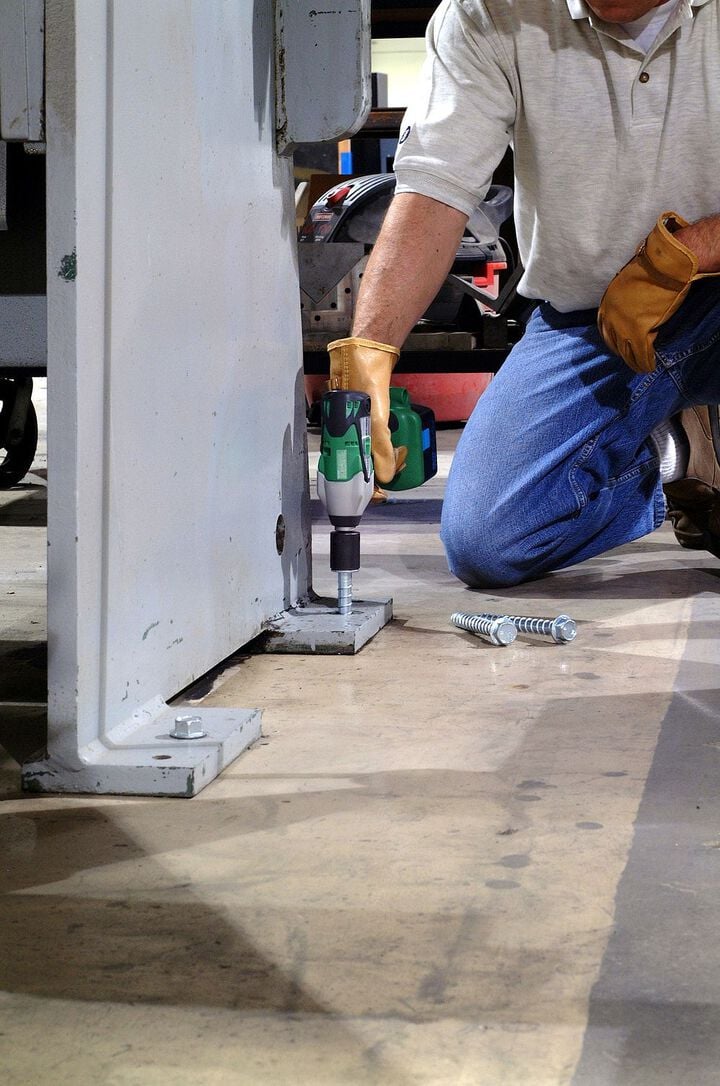

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating, and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated. The stainless-steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present.

Features

Tested in accordance with ACI 355.2, AC193 and AC106
Qualified for static, wind and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
Standard fractional sizes
Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
No special drill bit required - designed to install using standard-sized ANSI tolerance drill bits
Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
Removable - ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
Use in dry interior environments only

Specifications

Brand Name
Simpson Strong-Tie
Assembled Weight (lbs)
5
Country of Origin
China
Fastener Head Style
Hex
Fastener Material
Steel
Finish
Zinc Plated

MFG Part # (OEM)
THD37134H

Material
Zinc Plated Carbon Steel
Package Contents
(50) Screw Anchor

Product Condition
New

Restrictions
CA Prop 65
Size
3/8 In. Diameter x 1-3/4 In. Length, 9/16 In. Hex, 3/8 In. Drill Bit, 1-1/4 In. Thread Length

UPC
707392594703

Warranty Type
Limited
