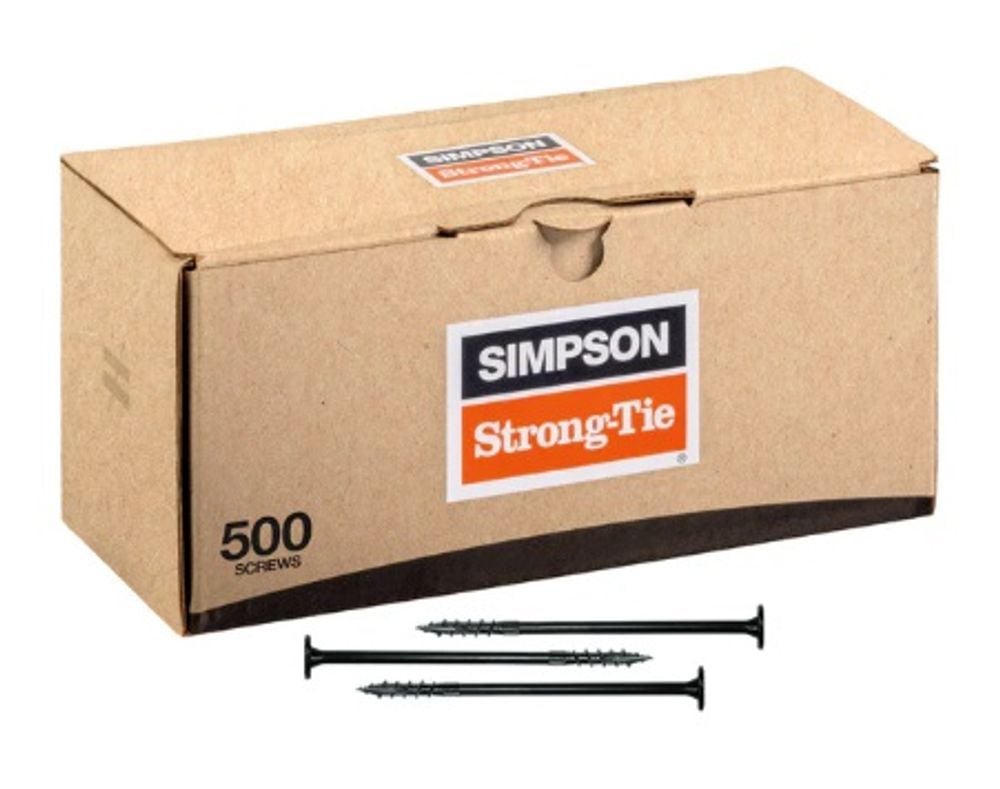

Simpson Strong-Tie 6 Inch Steel Truss-Ply Wood Screw 500 Pieces, large image number 0
Simpson Strong-Tie 6 Inch Steel Truss-Ply Wood Screw 500 Pieces, large image number 1
Simpson Strong-Tie 6 Inch Steel Truss-Ply Wood Screw 500 Pieces, large image number 2
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
Simpson Strong-Tie 6 Inch Steel Truss-Ply Wood Screw 500 Pieces
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $22/mo.
with Affirm

Product Details

Simpson Strong-Tie 6 Inch Steel Truss-Ply Wood Screw 500 Pieces
Simpson Strong-Tie

Please follow our Community Guidelines and be kind!

Description

Simpson Strong-Tie 6 Inch Steel Truss-Ply Wood Screw 500 Pieces

The Strong-Drive SDW Truss-Ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply wood members, such as joining plated trusses and solid-sawn lumber. The SDW installs easily with no predrilling and is available in optimized lengths for fastening 2, 3, and 4-ply trusses. With the SDW Truss-Ply screw, multi-ply trusses and components can be fastened from one side without requiring the lifting and flipping of heavy assemblies. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for the most common wood framing applications with wood and engineered wood.

California Proposition 65 Warning.

Manuals

Specification - PDF

Features

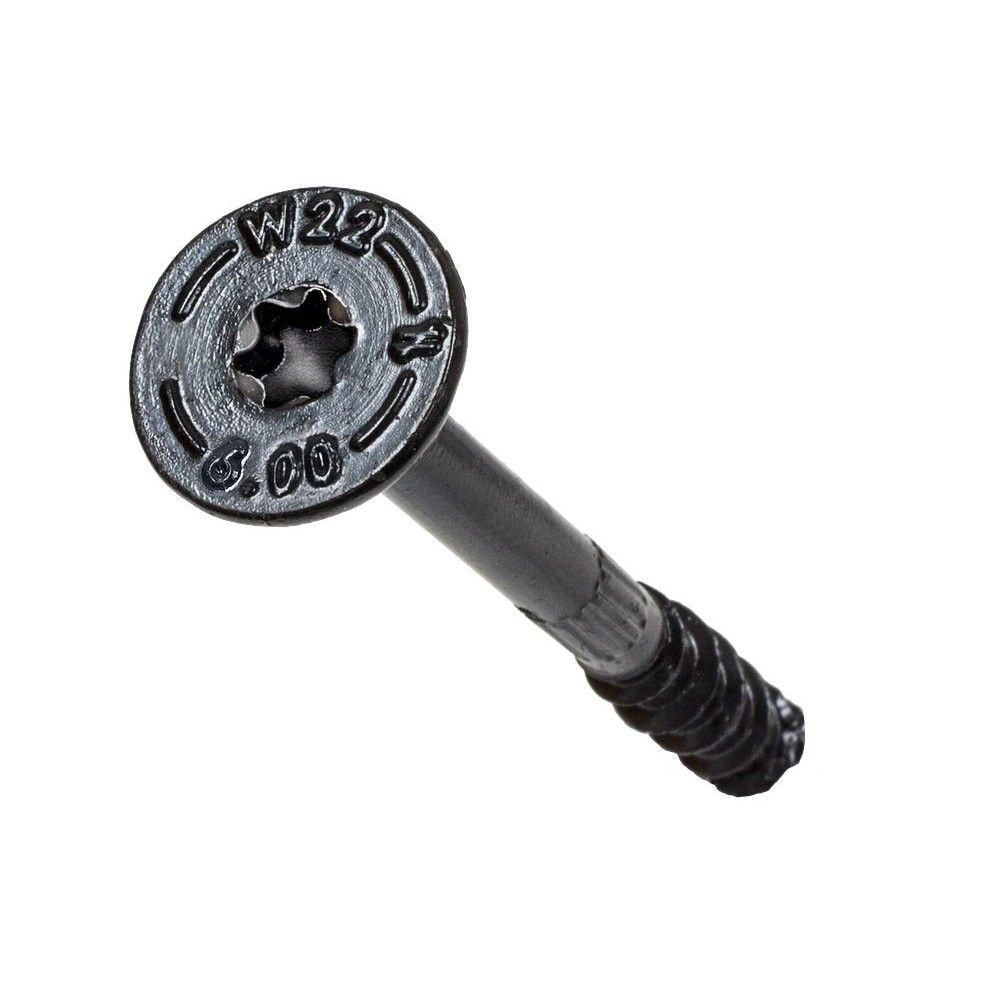

Large washer head with nibs provides maximum bearing area; stamped with the Simpson Strong-Tie sign and fastener length for easy identification after installation
6-Lobe, T40 drive provides positive engagement that makes the screw easy to drive and improves bit life
Low-profile head results in less interference after installation; makes stacking and sliding members easier and allows installation of hardware and finishes to be virtually flush
Higher shear values than competitive products enable wider spacing, saving time and money
Bold thread design provides superior holding power and cinches fastened members together for consistent installation
SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
Retail and mini-bulk packs include one 6-lobe, T40 driver bit; bulk packs include two driver bits
US Patents 9,523,383; 11,181,138

Specifications

Brand Name
Simpson Strong-Tie
Assembled Weight (lbs)
34.69
Country of Origin
China

MFG Part # (OEM)
SDW22600

Material
E-Coat® Electrocoating Carbon Steel
Package Contents
(500) Truss-Ply Screw

Product Condition
New

Restrictions
CA Prop 65
Size
0.22 In. Shank Diameter, 6 In. Length, 1-3/8 In. Thread Length, 0.76 In. Head Diameter

UPC
707392576303

Warranty Type
No Manufacturer's Warranty
