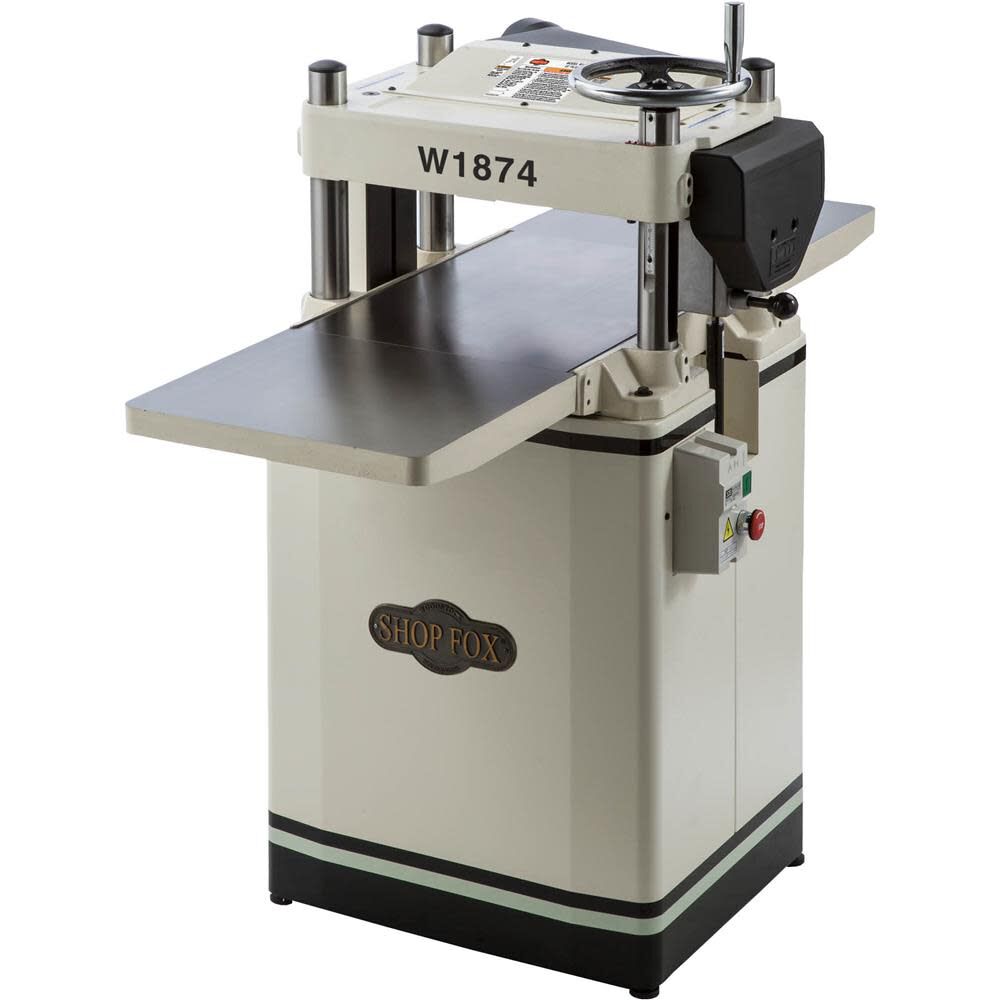

Shop Fox 230V 3HP 15in Fixed Table Planer with Helical Cutterhead

SKU# W1874
4.1 out of 5 Customer Rating
See Price in Cart
Discounted Price Shown in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location
Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

Freight Shipping Rates Apply
Shop Fox 230V 3HP 15in Fixed Table Planer with Helical Cutterhead
See Price in Cart
Discounted Price Shown in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Qty
Secure Checkout
Affirm
Pay as low as $118/mo.
with Affirm

Product Details

Shop Fox 230V 3HP 15in Fixed Table Planer with Helical Cutterhead

Description

Shop Fox 230V 3HP 15in Fixed Table Planer with Helical Cutterhead

The W1874 15 In. Fixed table planer with helical cutterhead features a powerful 3HP motor and 5200 Rpm, 4-row helical cutterhead. The fixed table height design allows for permanent infeed/outfeed roller setups for greater efficiency in production settings. Carbide inserts with 4 cutting edges make for ultra-smooth finishes in figured wood and last up to 10 times longer than conventional knives. The 2-speed gearbox allows you to choose between 16 and 28 Fpm for a smooth finish or high production feed rate. Sturdy four-column supports with twin gas struts on either side make for easy headstock height adjustments. Four heavy-duty support columns. Fixed table height design. Anti-kickback fingers. Oil bathed 2-speed gearbox. Cast-iron extension wings. Elevation scale with both inch and metric. Magnetic switch. Poly-V belt drive. Cabinet-style stand. Large top-mounted handwheel. Includes 5 spare carbide inserts. CSA certified.

Features

Poly-V belt drive
Magnetic switch
Elevation scale with both inch and metric
Cast-iron extension wings
Oil bathed 2-speed gearbox
Anti-kickback fingers
Fixed table height design
Four heavy duty support columns
Large top-mounted handwheel

Specifications

Brand Name
Shop Fox
Amperage (A)
20
Assembled Weight (lbs)
377
Bench or Stationary
Stationary
Blade Count
5
Blade Length (in)
15
Color
White
Country of Origin
Taiwan
CSA Certified
Yes
Drive Motor System
Electric
Horsepower (hp)
3
Length
10 ft
Maximum Cutting Depth (in)
1/16
Maximum RPM
5200
Maximum Width Cutting Capacity (in)
15
Package Contents
15 In. Fixed-Table Planer with Helical Cutterhead, Knife-Setting Jug, 5 Spare Cabinet Inserts

Product Condition
New

Restrictions
CA Prop 65
Switch Type
Magnetic Switch with Thermal Overload Protection
Warranty Type
2 Years
Weight (lbs)
377
