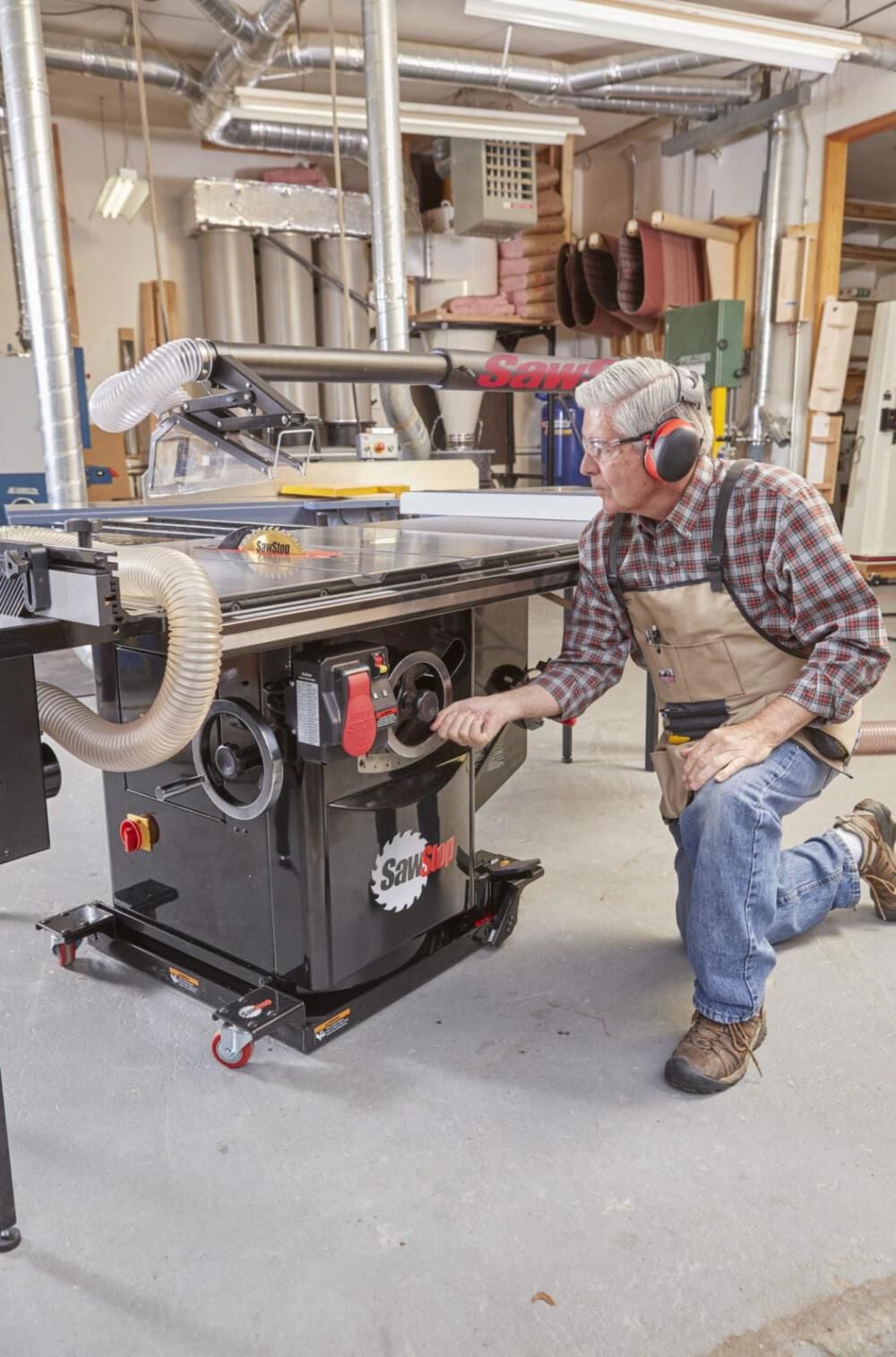

Sawstop 10 Inch 230V 3HP 1 Phase Cabinet Saw with 52 Inch T-Glide Rip Fence, large image number 3

Sawstop 10 Inch 230V 3HP 1 Phase Cabinet Saw with 52 Inch T-Glide Rip Fence, large image number 4

Sawstop 10 Inch 230V 3HP 1 Phase Cabinet Saw with 52 Inch T-Glide Rip Fence, large image number 5

Freight Shipping Rates Apply

Calculated Delivery Rate at Checkout

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Sawstop 10 Inch 230V 3HP 1 Phase Cabinet Saw with 52 Inch T-Glide Rip Fence

Sawstop

Please follow our Community Guidelines and be kind!

Description

Sawstop 10 Inch 230V 3HP 1 Phase Cabinet Saw with 52 Inch T-Glide Rip Fence

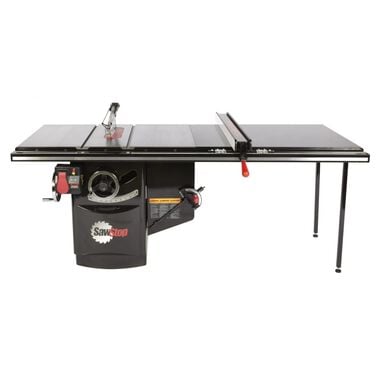

The SawStop® industrial cabinet saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10 In. cabinet saw available. The 3HP, 1 Phase, 230V configuration with a 52 In. industrial T-Glide fence assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide. The 52 In. T-Glide fence & rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. The industrial cabinet saw is almost 700 Lbs of iron and steel - built for heavy-duty cycles with maximum stability and precision. Larger, heavier tabletop provides an extensive cutting surface. 99% Dust collection is delivered above the table with the included dust collection blade guard, and below the table with advanced shrouding around the blade.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Features

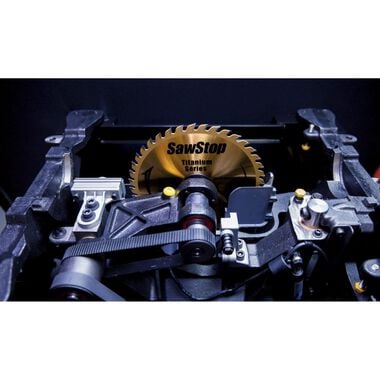

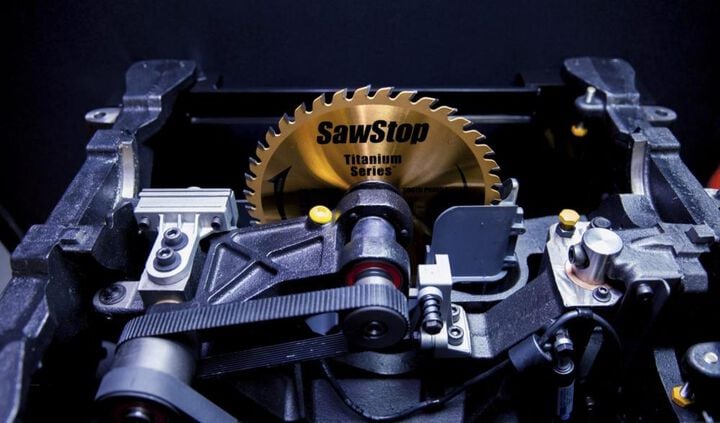

Saw stop patented safety system - Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds and drops below the table, minimizing a potentially life-altering injury to a mere scratch. Revolutionary SawStop safety system stops on contact with skin.

Strength & stability - Durable craftsmanship of almost 700 Lbs of iron and steel, and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments.

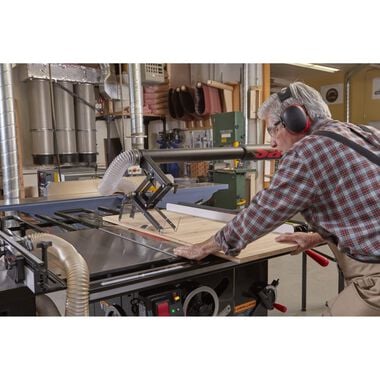

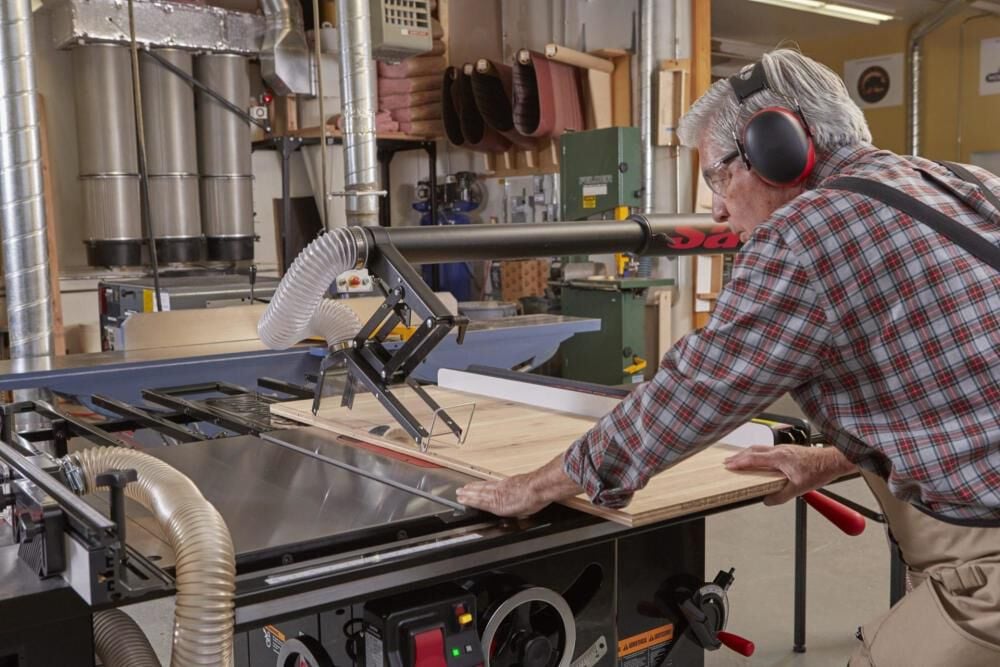

Dust collection - Provides outstanding 99% dust collection both above the table via the included dust collection blade guard and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4-inch port.

Added safety - The ICS has an integrated lock-out tag-out switch for additional safety to ensure that only authorized operators can use the saw. As another added feature, interlock switches on the motor access panels prohibit saw operation if any doors are unlatched.

52 In. T-Glide fence assembly - The 52 In. industrial T-glide advance rip fence delivers accuracy, versatility, ease of use, and safety like no other rip fence on the market. The 52 In. T-glide fence & rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection.

Expansive table - Larger, heavier tabletop provides an extensive cutting surface.

Reliability - The control box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.

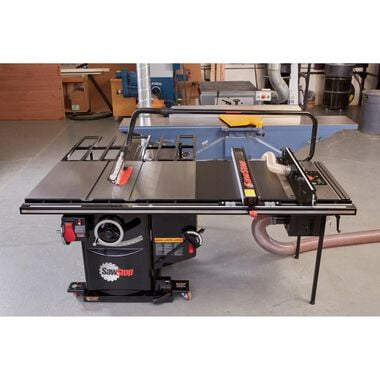

52 Inch Industrial T-glide fence system provides smooth operation, an expansive work surface, precision measurement, and sure lockdown without deflection.

Specifications

Brand Name

Sawstop

Assembled Weight (lbs)

685

Blade Thickness (in)

0.078

California Proposition 65 Warning Required

Yes

Country of Origin

Taiwan

Horsepower (hp)

MFG Part # (OEM)

ICS31230-52

Package Contents

(2) Cast Iron Extension Wings, (1) Miter Gauge, (1) Dust Collection Blade Guard, (1) Riving Knife, (2) Blade Wrenches, (1) Push Stick, (1) 10" Blade, (1) Standard Lockdown Insert, (1) Standard Brake Cartridge, (1) Owner's Manual, (2) Hardware Packs, (1) 3mm Hex Key, (1) 5mm Hex Key, (1) 8mm Hex Key, (1) Blade Spacing Adjustment Gauge

Phase

Single Phase

Product Condition

New

Size

Saw - 85-1/4 In. Width x 36-1/2 In. Depth x 34 In. Height, , 10 In. Blade Diameter, Cast Iron Table with Extension Rings - 44 In. Width x 30 In. Depth, Cast Iron Table - 24 In. Width x 30 In. Depth, Saw Body Footprint - 20 In. Width x 25 In. Depth (Cabinet), Extension Table (52 In.) - 40 In. Width x 30 In. Depth, Extension Wings - 10 In. Width x 30 In. Depth
