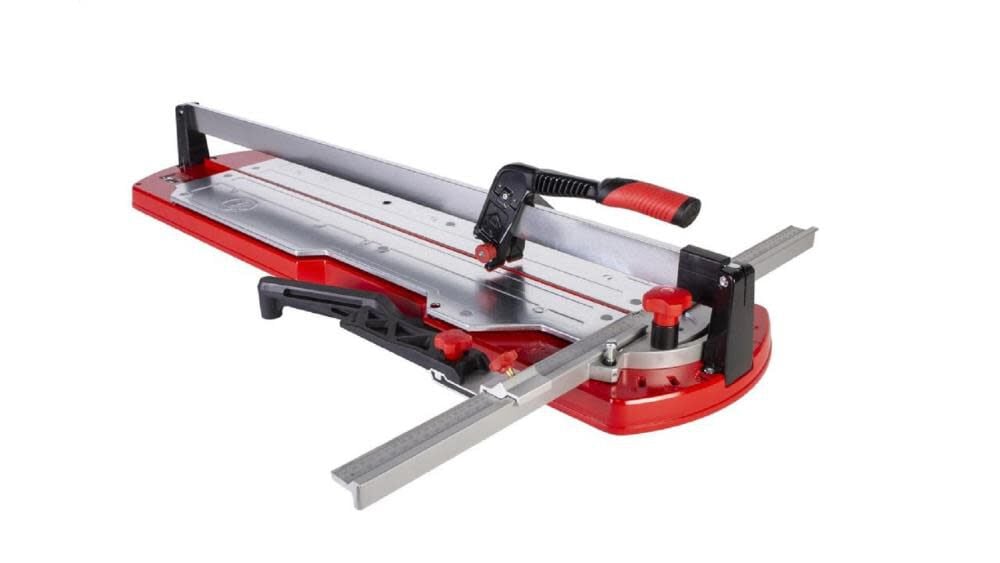

Rubi Tools 40 in. TP T Tile Cutter

SKU# 11903
Rubi Tools 40 in. TP T Tile Cutter, large image number 0
Previous Next
Discontinued by Manufacturer
Contact for more Information: 877-345-2263

Product Details

Rubi Tools 40 in. TP T Tile Cutter
Rubi Tools

Please follow our Community Guidelines and be kind!

Description

Rubi Tools 40 in. TP T Tile Cutter

The TP-102-T is a top quality professional pull tile cutter and it is the strongest made by Rubi with 2,205 lbs. of breaking force to cut the hardest tile up to 13/16 In. thick. 40 In. straight cut and 20 In. diagonal. It has a sturdy die cast aluminum construction for the base, scoring handle and protractor gauge. Spring loaded tray to deflect during cutting, a 10 In. long tile support extension and a carrying handle. The breaker foot has two replaceable plastic pads to prevent tile marking. The protractor gauge can be locked in any position between 45° and -45° and has a lateral stop for accurate and repetitive cuts. Dual inch scales are graduated for the width of straight cuts and also for the height of 45° cuts. Six rubber feet prevent the cutter from moving during use. Cutter includes a no. 18912 22 mm (7/8 In.) gold (titanium coated) wheel. Case is not available.

California Proposition 65 Warning.

Features

For intensive cutting of ceramic tile, ideal for porcelain tile
Single guide system highly resistant to impacts for longer life
Slice thickness adjustment system with 3 positions
Fast and accurate
Single guide cutter with multi point separator and angular measurement
Separator set with height adjustment. Optimum separation for each thickness.
Swivel bracket with central pivot for fast and accurate measurement of angular cuts
Scoring wheel of 22 mm. gold titanium coated and bearings. Higher quality and performance.
Reinforced prancing
Lateral stop for repetitive and accurately cuts

Specifications

Brand Name
Rubi Tools
Assembled Weight (lbs)
30
Blade Material
Titanium Coated
Blade Thickness (in)
0.02
California Proposition 65 Warning Required
Yes
Commercial / Residential
Commercial
Country of Origin
Spain
Cutting Capacity
27" Diagonal, 40" Rip
Handle Length (in)
12
Height (in)
10
Length
51 in

MFG Part # (OEM)
11903

Package Contents
40 in. TP T Tile Cutter

Product Condition
New

Tile Accessory Category
Manual Tile Cutter

UPC
400190003421

Weight (lbs)
36
