Rolair K30 2-Stage Compressor Pump with Flywheel
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $52/mo.
with Affirm

Product Details

Rolair K30 2-Stage Compressor Pump with Flywheel
Rolair

Please follow our Community Guidelines and be kind!

Description

Rolair K30 2-Stage Compressor Pump with Flywheel

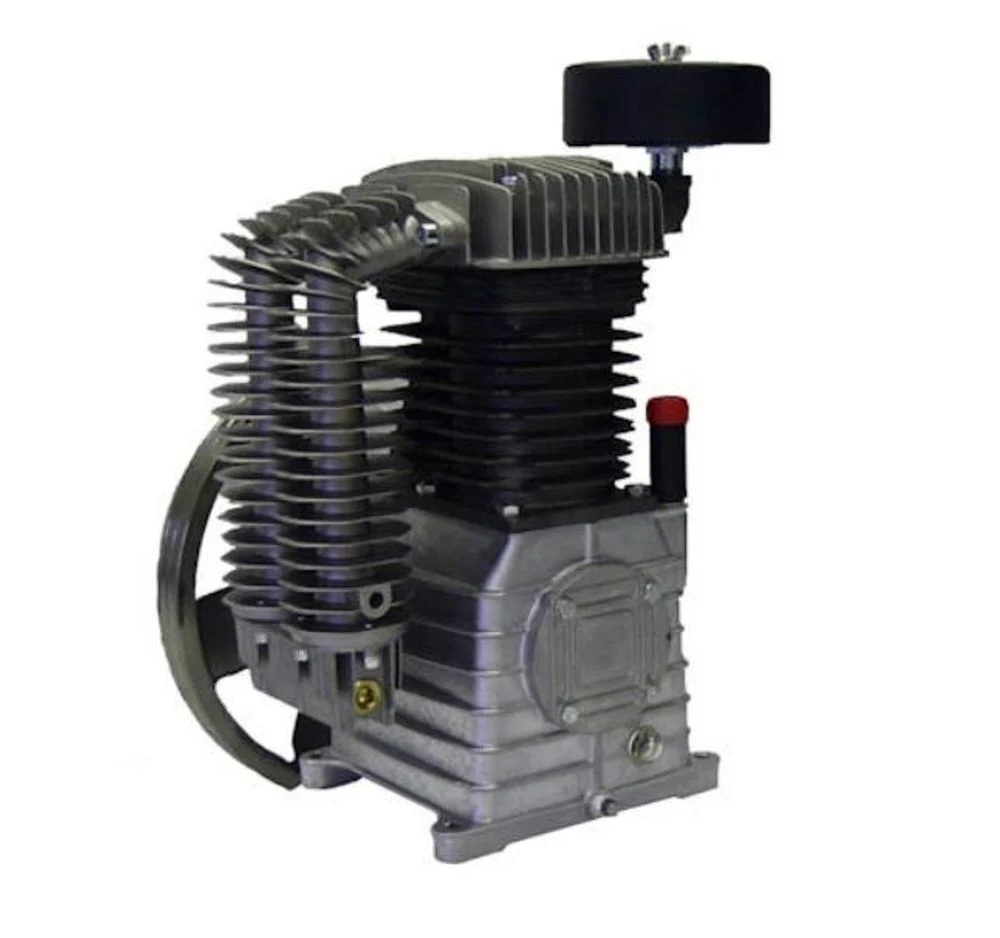

The Rolair K30 2-Stage Compressor Pump with Flywheel is an excellent choice for saving yourself the trouble of manually rebuilding your old compressor. It is a whole pump assembly that comes with a flywheel, cast iron cylinders, oil drain extension, after-cooler and intake filter assembly. The cast aluminum crankcase and head of the replacement compressor pump extend lifespan by running at a lower temperature. It has an oil capacity of 47 ounces and runs at 1100 RPM for greater efficiency and less wear and tear. With a footprint of 8.97 x 7.48 inches, the flywheel has a 15.16-inch diameter, and the stroke measures 3.31 inches for space saving power. The Rolair compressor pump is a direct replacement for models 5230K30CS, V5312K30, H5312K30, H75160K30, V75180K30, V5112K30, H5112K30, V5360K30, V5180K30, H5180K30, H5360K30, V5380K30, H5380K30, H75180K30, V75112K30, H75112K30, H75360K30, V75380K30, V75312K30, 8422HK30, 8230HK30, V5160K30, H5160K30, 13GR30HK30. It also fits other OEM models. It has a maximum pressure of 200 psi, making it perfect for many different projects.

California Proposition 65 Warning.
View Warning Label

Manuals

Use and Care Manual - PDF
Instructions / Assembly - PDF

Features

Two cylinder compressor pump assembly is designed as a total pump replacement
Complete with cast iron cylinders, flywheel, after-cooler, oil drain extension and intake filter assembly
47-ounce oil capacity
Rolair compressor pump operates at 1100 RPM
Footprint: 8.97 x 7.48 inches
Flywheel diameter: 15.16 inches
Stroke: 3.31 inches
Maximum of 200 psi
Cast aluminum crankcase and head lower operating temperature
Direct replacement for many OEM models

Specifications

Brand Name
Rolair
Air Compressor Pump Design
Oil Lubricated
Assembled Weight (lbs)
83.8
California Proposition 65 Warning Required
Yes
Capacity
Oil: 47.0 Oz
Country of Origin
Italy
Dry Weight (lbs)
83.8
Height (in)
18.7
Horsepower (hp)
5.0, 7.5 (Electric) & 8.0, 9.0, 11.0, 13.0 (Gas)

MFG Part # (OEM)
PMP22K30CH

Material
Cast Iron & Cast Aluminum
Maximum Pressure Rating (psi)
200
Package Contents
K30 2-Stage Compressor Pump with Flywheel
Phase
1

Product Condition
New

RPM
1100.0
Shut Off PSI
175.0
Stroke Length (in)
3.31
Switch Type
Switchless

UPC
662865009576

Warranty Type
30 Day
Weight (lbs)
95.0
