Product Details

Rolair K17 Single-Stage Compressor Pump without Flywheel

Rolair

Please follow our Community Guidelines and be kind!

Description

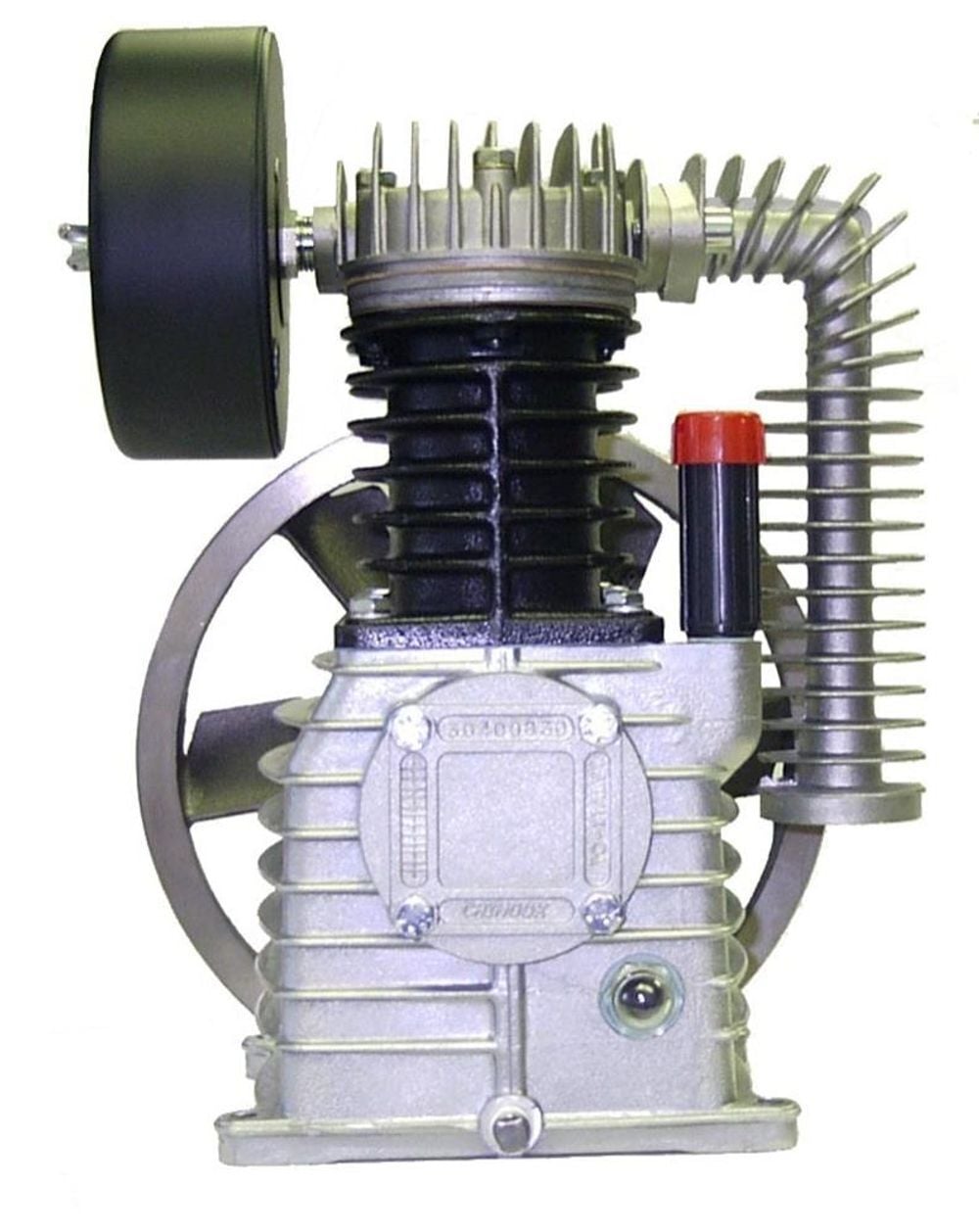

Rolair K17 Single-Stage Compressor Pump without Flywheel

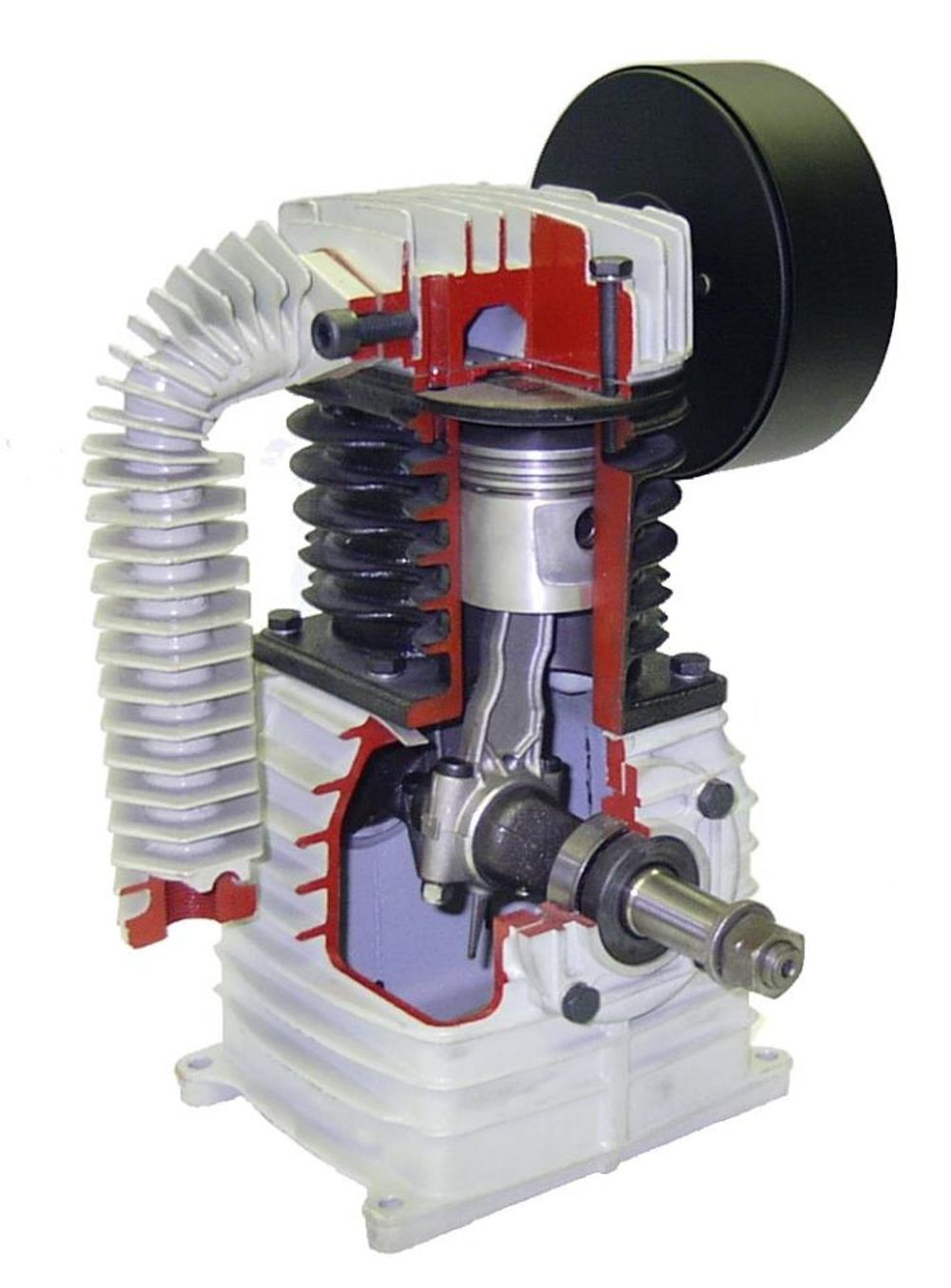

Manually fixing a compressor pump can involve lots of time and effort, which is why you should use the Rolair K17 Single-Stage Compressor Pump. It has two cast iron cylinders, an oil drain extension, and bearing inserts for ultra efficiency. This replacement compressor pump has a cast aluminum head and crankcase, which allows the pump to run at a lower temperature and last longer. It comes with a filter assembly, which does not include a flywheel or after-cooler. With an oil capacity of 34 ounces, an RPM of 1000, a stroke of 1.97 inches and a footprint of 7.08 x 5.19 inches, this single stage compressor pump has a maximum pressure rating of 150 psi for strength and durability. It is designed to replace models 4090HK17, 5715K17, 5520K17, 6820K17, V15160K17, H15160K17, V2130K17, V15130K17, H15130K17, H2130K17, V2160K17, H2160K17 as well as additional OEM models.

California Proposition 65 Warning.

View Warning Label

Manuals

Use and Care Manual - PDF

Instructions / Assembly - PDF

Features

Replacement compressor pump has two cast iron cylinders; bearing inserts; oil drain extension; stainless steel reed valves; air filter/silencer

The cast aluminum head and crankcase increases lifespan of pump and lowers operating temperature

34-ounce oil capacity

Runs at 1000 RPM

Footprint: 7.08 x 5.19 inches

Stroke: 1.97 inches

Comes with filter assembly

Two cylinder compressor pump doesn't come with flywheel or after-cooler

150 psi pressure rating

Directly replaces many OEM models

Specifications

Brand Name

Rolair

Air Compressor Pump Design

Oil Lubricated

Assembled Weight (lbs)

27.1

California Proposition 65 Warning Required

Yes

Capacity

Oil: 34.0 Oz

Country of Origin

Italy

Dry Weight (lbs)

33.1

Height (in)

13.77

Horsepower (hp)

1.5, 2.0 (Electric), 5.5 (Gas)

MFG Part # (OEM)

PMP12K17CHLF

Material

Cast Iron & Cast Aluminum

Maximum Pressure Rating (psi)

150

Package Contents

K17 Single-Stage Compressor Pump without Flywheel

Phase

Product Condition

New

RPM

1000.0

Shut Off PSI

135.0

Stroke Length (in)

1.97

Switch Type

Switchless

UPC

662865009521

Warranty Type

30 Day

Weight (lbs)

32.0
