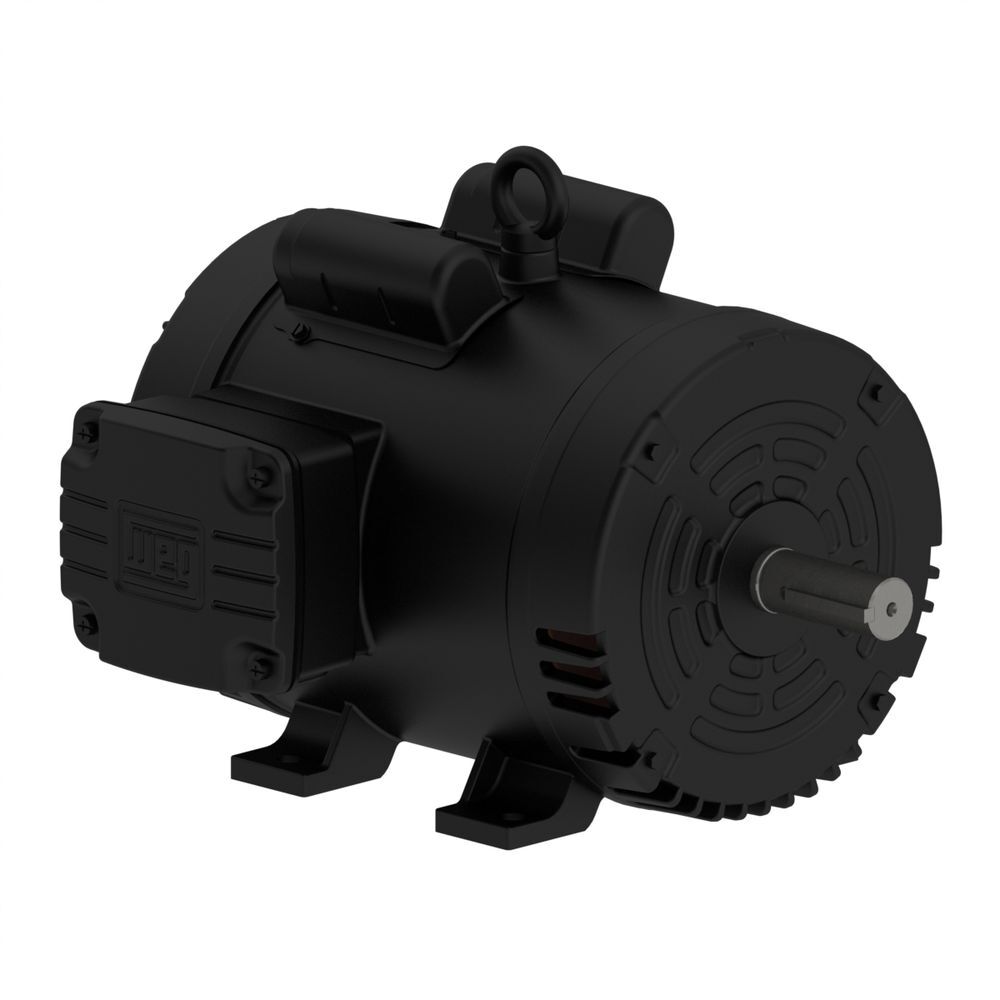

WEG 208-230V 5HP 1750 Rpm Compressor Electric Motor W/Reset

Description

WEG 208-230V 5HP 1750 Rpm Compressor Electric Motor W/Reset

WEG 208-230 4 Poles 1725 Rpm open drip proof enclosure compressor motor. This electric motor is used by many other brands of air compressors and ROLAIR models 5230K30, 5230K30CS compressors.

Features

Rotation: Both clockwise & counter clock wise
Service Factor: 1.15
Frame: 184T, 4 poles
Duty Cycle: Continuous (S1)
Enclosure: Open Drip Proof (ODP)
Standard: NEMA MG-1
Without flange
Mounting: F-1 Foot-mounted
Electrical Ratings: 208-230V, 23-20.7A, 60 Hz

Specifications

Brand Name
WEG
Assembled Weight (lbs)
97
Country of Origin
Mexico
Horsepower (hp)
5
Material
Cast Iron Frame, SAE 1040/45 Carbon Steel Shaft, Plastic Fan
Maximum RPM
1750
Package Contents
Compressor Motor
Phase
Single Phase

Product Condition
New

Restrictions
CA Prop 65
Voltage
208/230
Warranty Type
No Manufacturer's Warranty
Weight (lbs)
97
