Rolair 20 Gallon 10.1 CFM 1.5HP 115/230V Wheeled Electric Air Compressor

Description

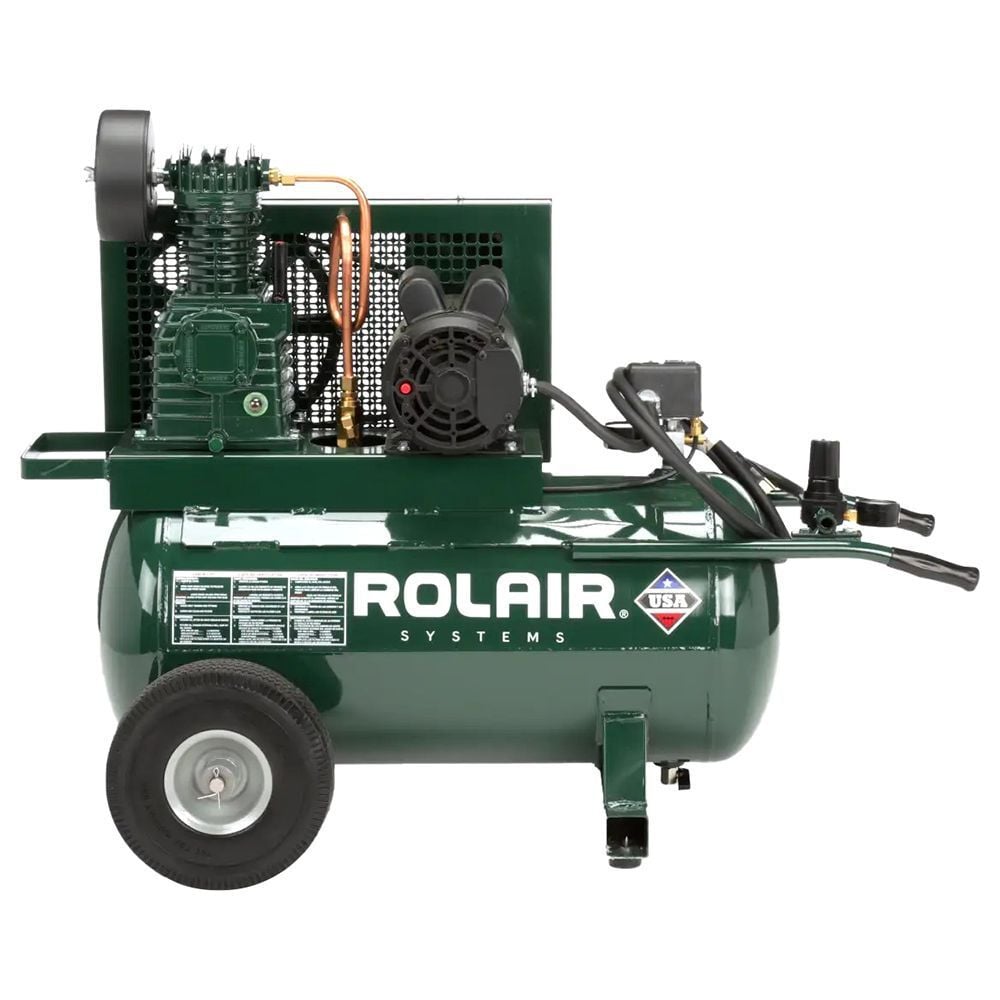

Rolair 20 Gallon 10.1 CFM 1.5HP 115/230V Wheeled Electric Air Compressor

Model 5520K17A is a step up from our classic 1.5 HP twin-tank wheelbarrow design. Featuring a single 20-gallon tank assembly, it sustains 7.3 CFM @ 90 PSI longer than the traditional 9-gallon twin tank design. The low-RPM pump and motor combine for quiet operation and minimal amp draw.

Features

Pressure gauge 0-200 in 5 lb. graduations.
Square D pressure switch with unloader.
Accessory support clip.
Intake filter with silencer and replaceable element.
Totally enclosed steel belt guard.
Safety relief valve.

Specifications

Brand Name
Rolair
Air Volume (CFM)
10.1
Assembled Weight (lbs)
195
Average Air Consumption (CFM)
7.3
Capacity
34 Oz Pump Oil
Compressor Design
Horizontal (Stationary)
Country of Origin
United States
ETL Listed
No
Horsepower (hp)
1.5

MFG Part # (OEM)
5520K17A-0003

Maximum Pressure Rating (psi)
90
Maximum RPM
1755
Maximum Speed (rpm)
1755
Operating Position
Horizontal
Package Contents
(1) Air Compressor

Product Condition
New

Restrictions
CA Prop 65
Size
42 in. Length x 22 In. width x 34 In. Height
Start Type
Electric
Tank Capacity (gal)
20
Tank Configuration
Single
Tank Pressure Gauge
Yes

UPC
662865010312

Voltage
115/230 Volts
Warranty Type
No Manufacturer's Warranty
Weight (lbs)
205
Wheel Size
11 In.
Wheeled
Yes
