Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor

SKU# 5520K17A-0001
5 out of 5 Customer Rating
Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor, large image number 0

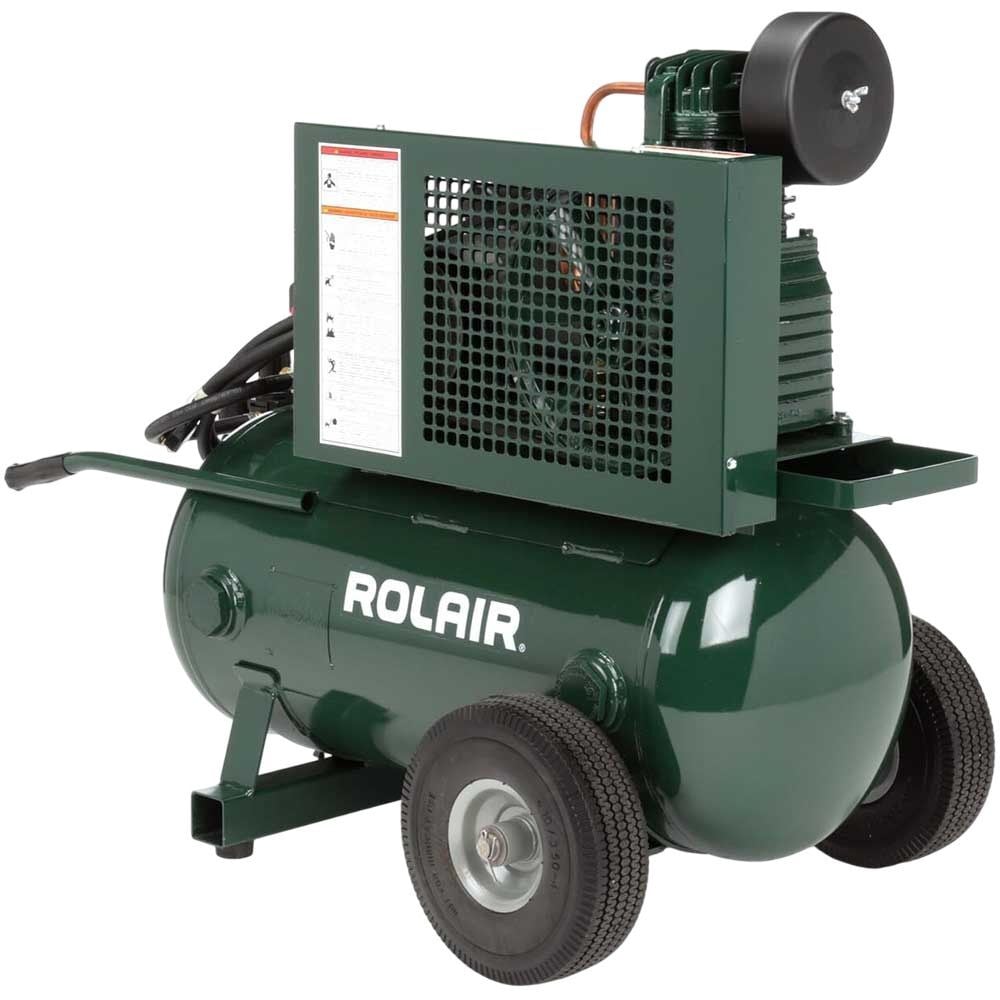

Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor, large image number 1

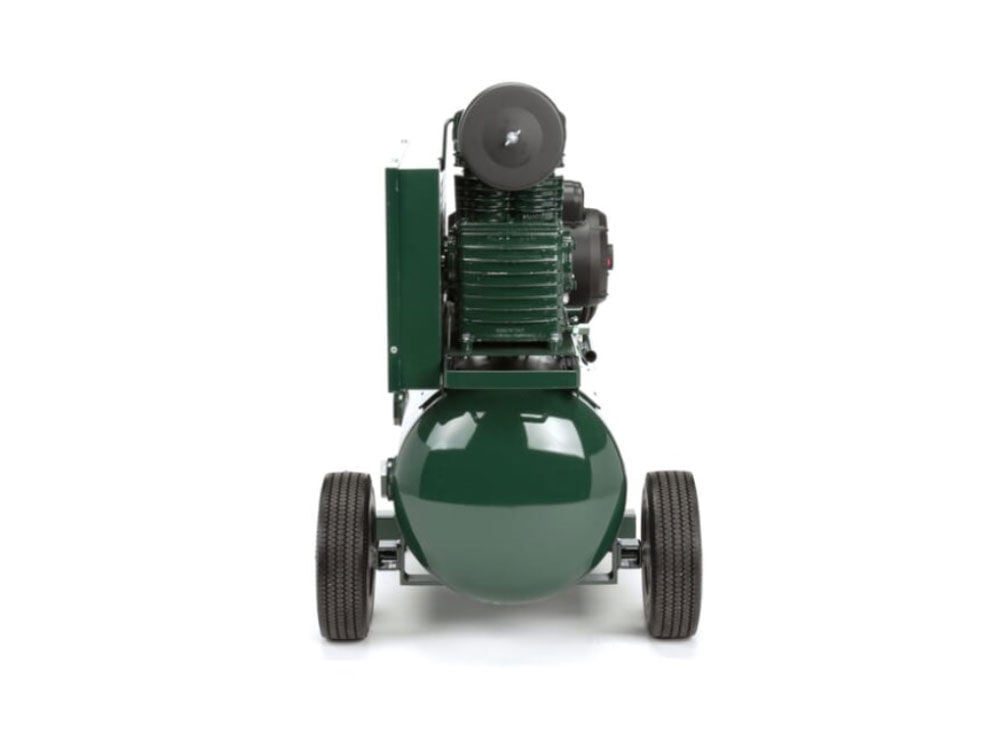

Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor, large image number 2

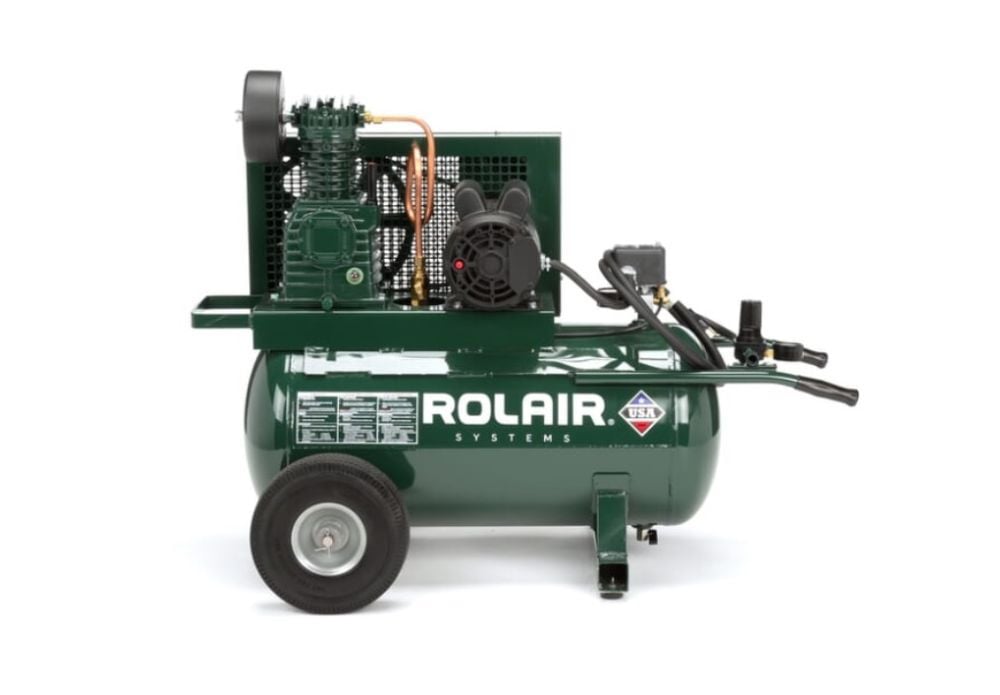

Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor, large image number 3

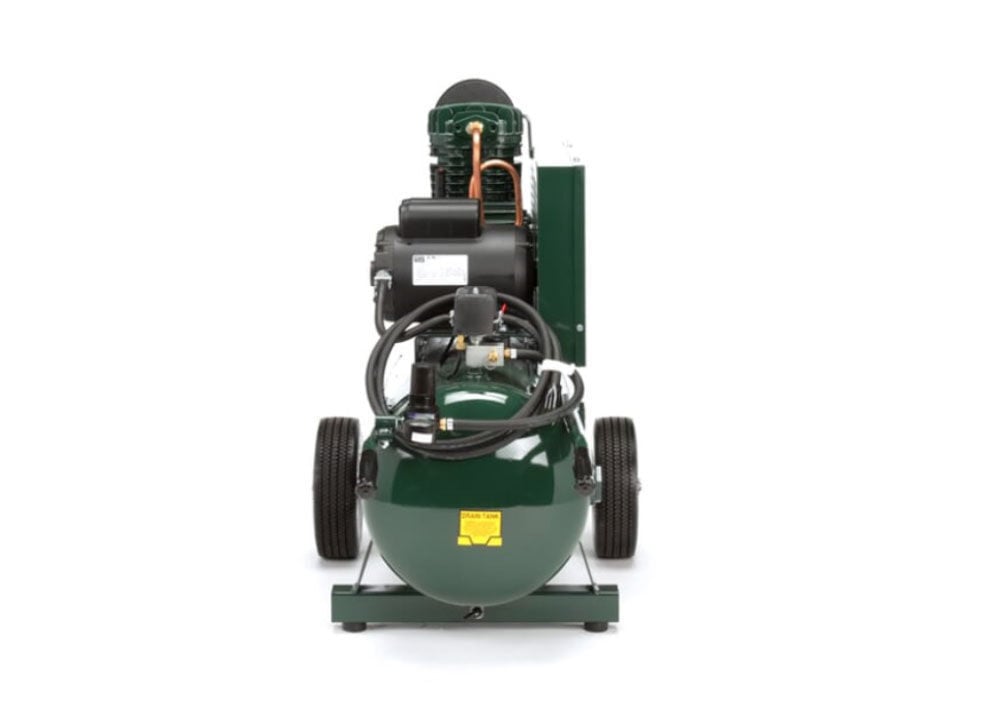

Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor, large image number 4
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

  Free Freight  Shipping  (Truck freight shipping to lower 48)

Lift Gate Service (freight lowered to ground)
Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Freight Delivery
Freight Delivery
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $95/mo.
with Affirm

Product Details

Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor
Rolair

Please follow our Community Guidelines and be kind!

Description

Rolair 1.5 HP (115V) 7.3 CFM@90PSI 20 Gallon ASME Compressor

This model provides the most reserve air available in an electric wheelbarrow, with a 20 Gallon ASME tank--more than twice the storage capacity of the standard twin tank. Capable of running on a 20 Amp breaker, this unit will deliver 7.3 CFM, doubling the output of many direct-drive units. Additionally, the low RPM pump and motor combine for quiet operation. Battle tested contractor tough? There's only one way to find out. Get it dirty, run it hot and don't let up - just like a contractor. That's how they're used, so that's how they're tested. Engines, pumps, motors, switches - every component of every ROLAIR compressor is battle-tested both in the field and at our Wisconsin factory. You have our guarantee that your ROLAIR compressor is ready to roll on day one, no excuses.

California Proposition 65 Warning.
View Warning Label

Manuals

Installation Guide - PDF
Warranty - PDF
Specification - PDF
Instructions / Assembly - PDF

Features

Capable of running 3-4 framing guns, 3-5 roofing guns, or 7-9 trim/finish guns
20 Gallon ASME-certified tank more than doubles the reserve air of a standard twin tank
Two-cylinder, high-efficiency single-stage pump includes cast iron cylinders, stainless steel reed valves, oil sight glass, oil drain extension, finned after cooler and automotive style bearing inserts
Heavy-duty two piece 16 gauge bolted belt guard
Includes: stop-start pressure switch, thermal overload w/manual reset, regulator and gauge set, ball valve drains, safety valve and cold-start valve and tank is not rated for California use.

Specifications

Brand Name
Rolair
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
17.0
Assembled Weight (lbs)
205
California Proposition 65 Warning Required
Yes
Color
Green
Compressor Design
Wheelbarrow/Wheeled
Country of Origin
United States
ETL Listed
No
Full Roll Cage
No
Handle Included
Yes
Height (in)
34.0
Horsepower (hp)
1.5
Indoor / Outdoor
Indoor/Outdoor
Length
6 ft
Lock-on Switch
No

MFG Part # (OEM)
5520K17A-0001

Maximum Pressure Rating (psi)
135.0
Operating Position
Horizontal
Package Contents
Air Compressor
Phase
1

Product Condition
New

Side Handle
Yes
Switch Type
Pressure
Tank Capacity (gal)
20.0
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
UL Listed
Yes

UPC
662865258752

Voltage
115
Warranty Type
1 Year Limited
Weight (lbs)
198.0
Wheel Size
3.5 in
Wheeled
Yes
