RIKON 12 Inch x 16-1/2 Inch VSR MIDI Lathe with 4-Jaw Chuck
RIKON

Please follow our Community Guidelines and be kind!

Description

RIKON 12 Inch x 16-1/2 Inch VSR MIDI Lathe with 4-Jaw Chuck

12” x 16.5” Variable Speed Midi Lathe #70-1516VSR is has been designed to offer features seen on larger industrial lathes. An ideal lathe for novice to professional turners. Designed with a powerful 1.25HP DC motor, electronic variable speed controls, a wide range of operating speeds, digital RPM readout, ample diameter and spindle length turning capacities in forward and reverse drives. Corded control box has a magnetic back that allows it to be moved along the front of thecast iron lathe bed, and positioned where you want it for easiest access when turning. Left, outboard end of the lathe bed is milled to take a special 13-1/2" bed extension (#70-903 sold separately) to allow outboard turning of diameters up to 15" . Lathe includes spur center, live center, 3” faceplate, 6" tool rest with 1" diameter post, knock-out bar, wrenches and tool holder.The RIkon 70-1516VSR-K comes with a 4-jaw chuck (K). Variable speed ranges from 250-850 RPM, to 430-1450 RPM to 950-3200 RPM depending on your turning needs. Forward and reverse. 6 amps, 60HZ, up to 3200 RPM. Single phase, 115V.

California Proposition 65 Warning.
View Warning Label

Manuals

Warranty - PDF
Brochure - PDF

Features

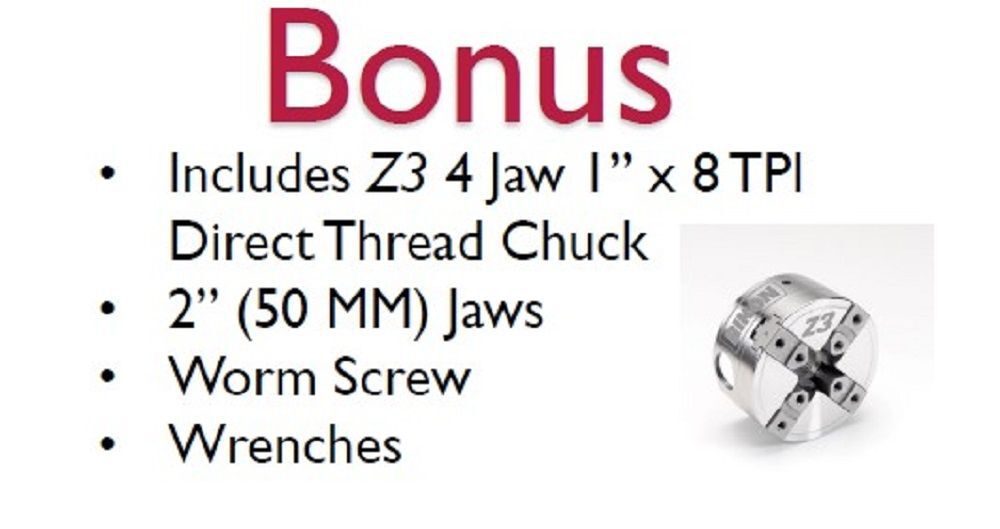

3 Variable speeds and 4-jaw chuck included
115V, 1.25 HP, 250-3200 RPM
Machined edges and optional bed extension
Heavy duty cast iron
Swing over bed: 12"; 15" w/extension
Swing over tool rest: 9-1/4"
Working distance between centers: 16.5"
Tool rest post diameter: 1"
MT2 Head & tailstock taper
3 Speed RPM ranges

Specifications

Brand Name
RIKON
Amperage (A)
10
Assembled Weight (lbs)
95
Built-In Accessory Storage
No
California Proposition 65 Warning Required
Yes
Country of Origin
China
Dust Collection
No
Horsepower (hp)
1.25

MFG Part # (OEM)
70-1516VSR-K

Material
Cast
Maximum Speed (rpm)
3200
Net Tool Weight (lbs)
95
Package Contents
Lathe, spur center, live center, 3" faceplate, 6" tool rest, knock-out bar, wrenches & tool holder

Product Condition
New

Restrictions
CA Prop 65
Swing Over Bed
12

UPC
814463016269

Variable Speed
Yes
Voltage
120
Warranty Type
5 Years Limited
Weight (lbs)
95
