Powermatic Tilt/Slide Shaper 7.5HP 3PH 230/460V
Powermatic

Please follow our Community Guidelines and be kind!

Description

Powermatic Tilt/Slide Shaper 7.5HP 3PH 230/460V

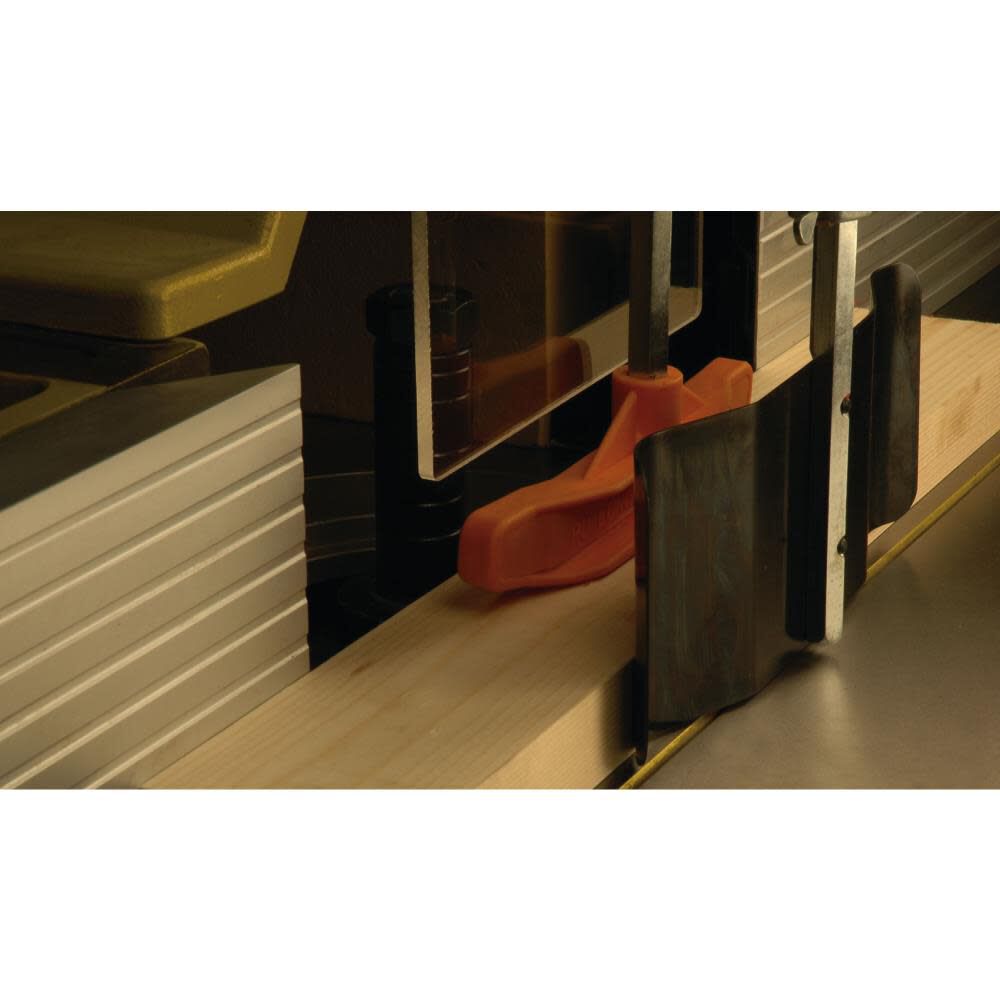

The new TS29 tilt/slide shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2 HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56 In. miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.

California Proposition 65 Warning.
View Warning Label

Features

Sliding table with 4-foot stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons

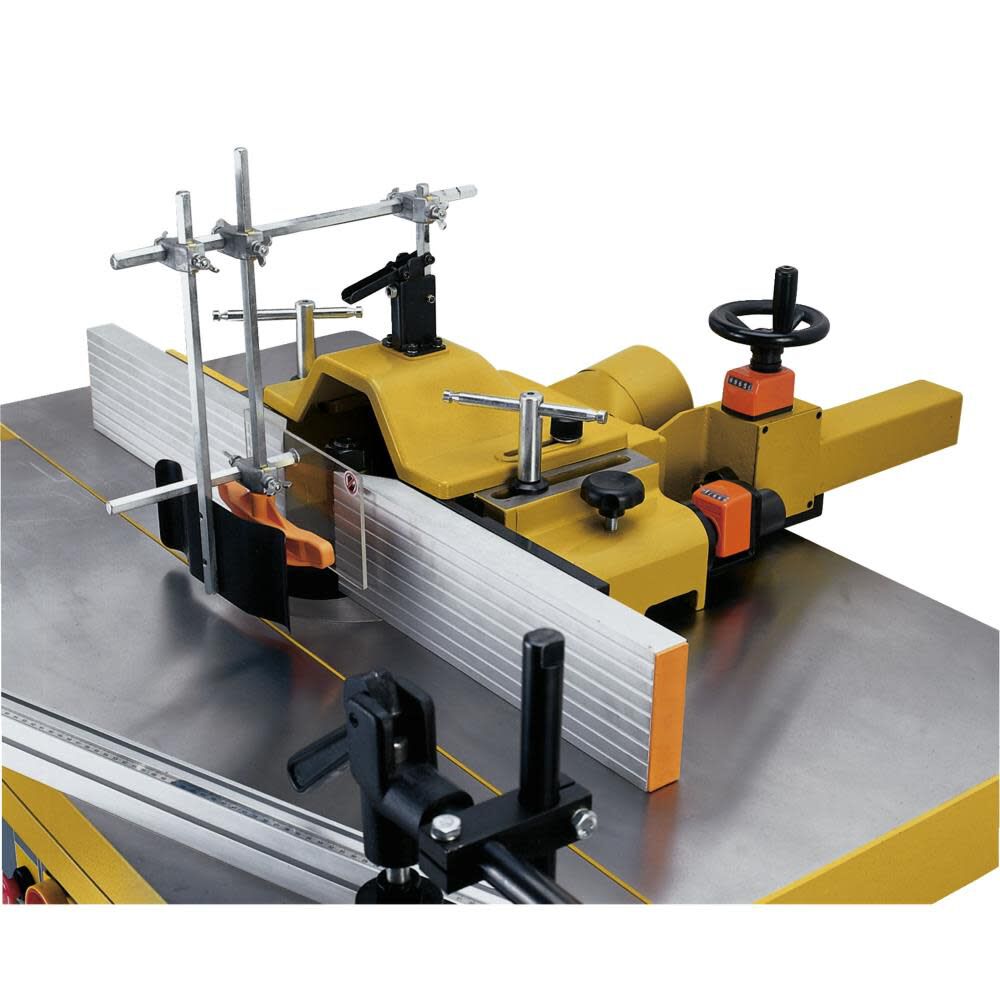

Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
Large table with built-in slider with room for stock feeder

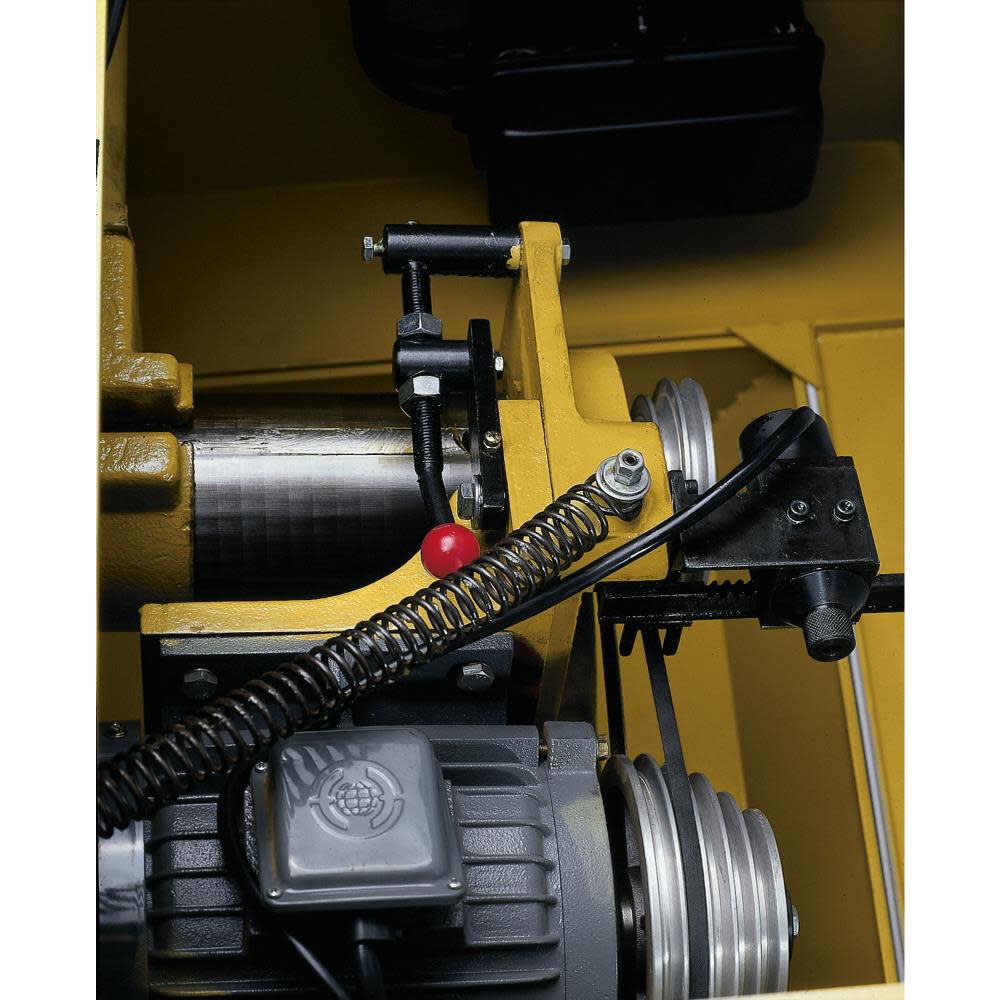

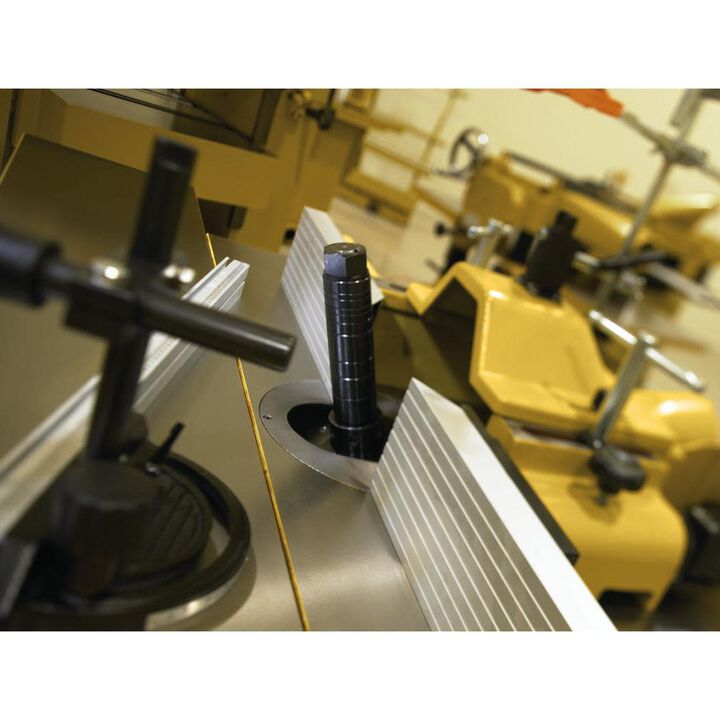

7 inch vertical spindle travel allows stacked tooling
Spindle tilts negative 5° to positive 45° for increased versatility
Large diameter multiple table inserts accommodate virtually any size cutter
Five spindle speeds in forward and reverse with lighted indicator

Specifications

Brand Name
Powermatic
Amperage (A)
2
Assembled Weight (lbs)
1100.0
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
CSA Certified
Pending
Dust Port
Yes
ETL Listed
Pending
Horsepower (hp)
1.5

MFG Part # (OEM)
PM9-1791284

Package Contents
Tilt/Slide Shaper 7.5HP 3PH 230/460V
Phase
Three Phase

Product Condition
New

Stand Included
No
Table Length (in)
51.0
Table Width (in)
44.0
UL Listed
Pending

UPC
662755464232

Variable Speed
Yes
Voltage
230 Volts
Warranty Type
5 Years
