Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V

Name: Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V
Brand: Powermatic
SKU: 1792820
Price: 2499.00 USD
Availability: InStock

SKU# PM9-1792820

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 0

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 1

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 2

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 3

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 4

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 5

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 6

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 7

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 8

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V, large image number 9

+ 5 more

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V

Powermatic

Please follow our Community Guidelines and be kind!

Description

Powermatic PM2820EVS Drill Press 1HP 1 Phase 120V

Gear up for the ultimate performance with the Powermatic PM2820EVS drill press. Gear driven power transfers torque consistently and efficiently for any project a wide range of materials. With a removable table with 45 degree rotation it has capacity for projects large and small. A high visibility laser pinpoints the drilling location for total accuracy. Powermatic has added a patented depth stop make countersinking easy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability. Integrated LED light reduces shadows for project visibility.

California Proposition 65 Warning.

View Warning Label

Features

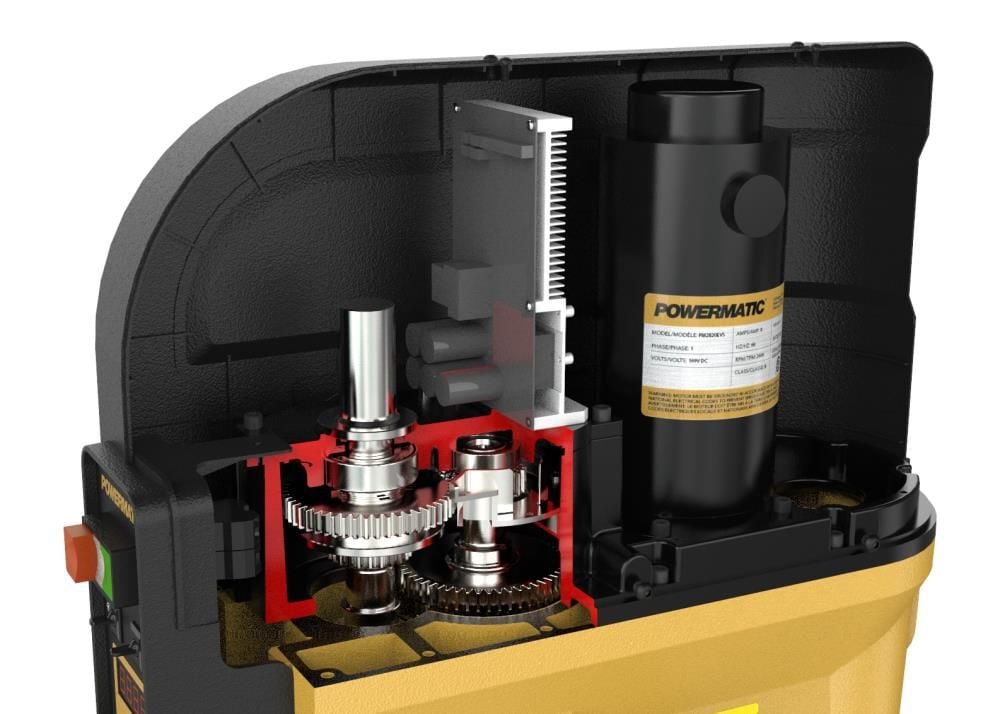

Gear driven power transfers torque consistently and efficiently for a wide range of materials

The electronic variable speed means torque is not lost using either the higher or low speed settings

Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM

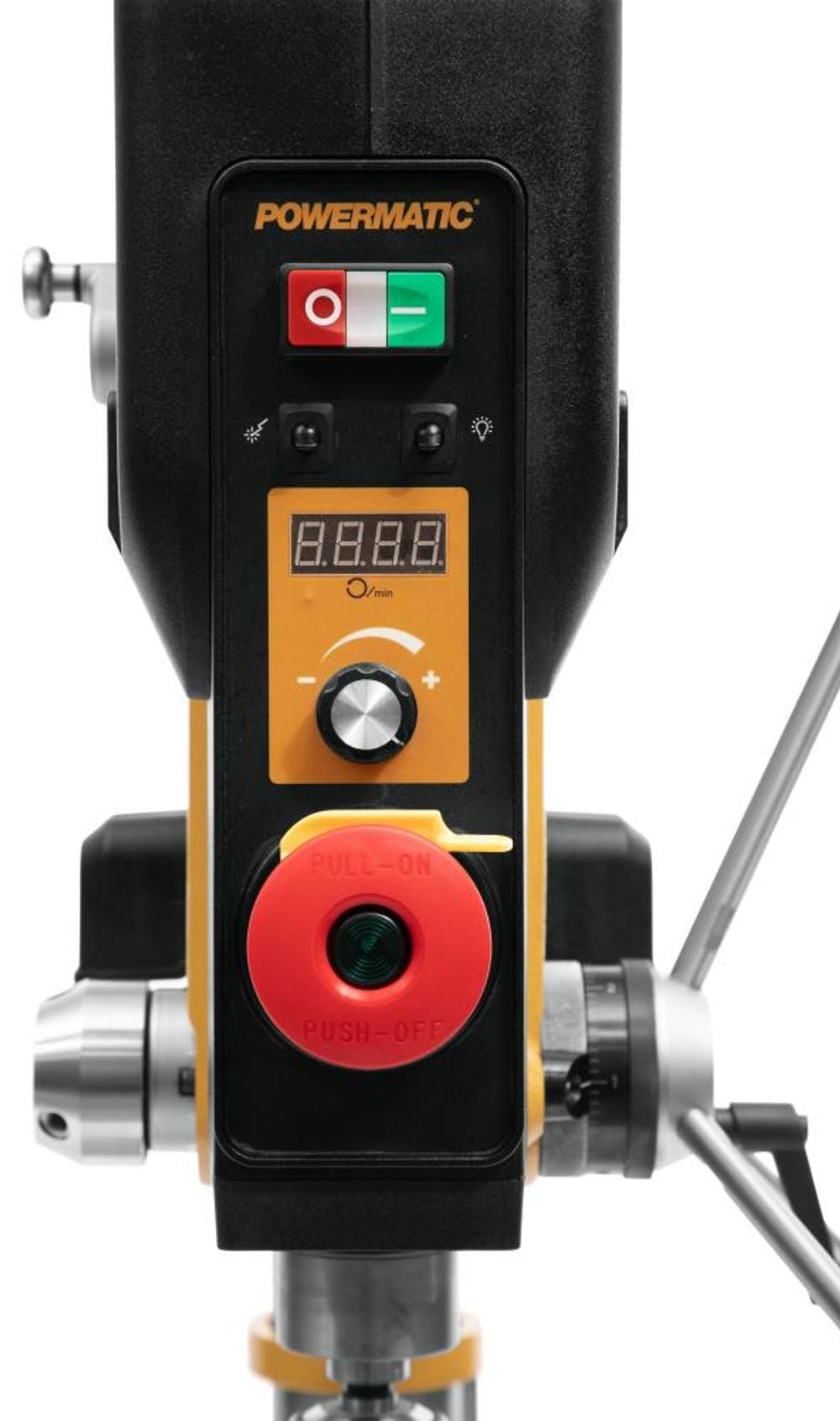

Highly visible digital readout gives users control

Designed for a range of materials and applications

Standing on an oversized cast base for outstanding stability for the 20 inch swing

Handles can be reversed for left or right sided operation

The large cast table adjusts to a range of positions and tilts to a full ninety degree position

Includes the most versatile table in the drill press market; allows insert to be removed for better access to oversized pieces

Includes Powermatic’s patented integrated depth stop for efficient drilling

Specifications

Brand Name

Powermatic

Amperage (A)

Assembled Weight (lbs)

336.6

California Proposition 65 Warning Required

Yes

Chuck Design

Keyed

Color

Gold

Country of Origin

Taiwan

CSA Certified

Yes

Drill Press Type

Stationary

Drive Motor System

Electric

Height (in)

71.85

Horsepower (hp)

Integrated Laser Guide

Yes

Length

24.5 in

MFG Part # (OEM)

PM9-1792820

Material

Cast Iron

Net Tool Weight (lbs)

336.6

Package Contents

Drill Press Head Assembly, Column Assembly, Base, Table Assembly, Fence, Work Stop, 3 Turret Handles, Keyed Chuck, Arbor, Chuck key, table lock handle, drift key, lock handle with washer Crank handle, worm drive, 4 socket head cap screws and lock washers, 3 hex wrenches, Owners Manual, product registration card
