Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head

Name: Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head
Brand: Powermatic
SKU: 1791283
Price: 9999.00 USD
Availability: InStock

SKU# PM9-1791283

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head, large image number 0

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head, large image number 1

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head, large image number 2

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head, large image number 3

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head, large image number 4

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head, large image number 5

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head, large image number 6

+ 2 more

No Air Shipments

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head

Powermatic

Please follow our Community Guidelines and be kind!

Description

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head

This 16" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutter head consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.

California Proposition 65 Warning.

View Warning Label

Features

Helical cutter head with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes

Parallelogram construction maintains close table-to-cutter head proximity and ensures table parallelism

Large 96x16-in table surface for maximum support and fine finish

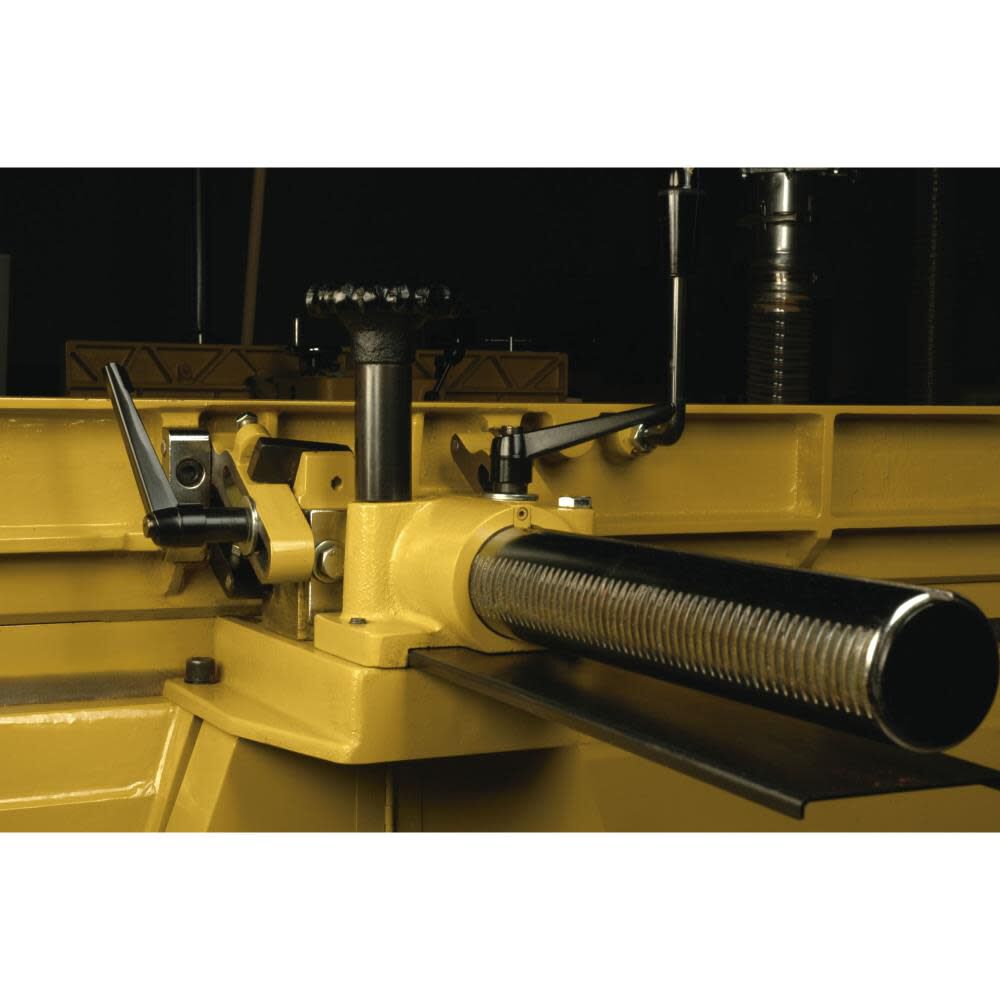

Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support

Full size rabbeting table supports large workpieces for rabbets up to 3/4-in deep

7.5HP motor for industrial duty

Helical cutter head with inserts

Tilting fence

Dust collection adapter

Cutter head guard

Specifications

Brand Name

Powermatic

Amperage (A)

Assembled Weight (lbs)

1280.0

Bench or Stationary

Bench

Blade Count

Blade Material

Steel

California Proposition 65 Warning Required

Yes

Color

Yellow

Country of Origin

Taiwan

CSA Certified

Pending

Dust Port

Yes

Horsepower (hp)

7.5

MFG Part # (OEM)

PM9-1791283

Maximum Cutting Depth (in)

0.75

Maximum Speed (rpm)

5200

Package Contents

16" Jointer 7.5HP 3PH 230/460V Helical Head

Product Condition

New

Speeds

5200

Table Length (in)

Table Width (in)

UPC

662755464225

Voltage

230 Volts

Warranty Type

5 Years

Weight (lbs)

1400.0

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head
