Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head

Name: Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head
Brand: Powermatic
SKU: 1791308
Price: 10339.00 USD
Availability: InStock

SKU# PM9-1791308

Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head, large image number 0

Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head, large image number 1

Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head, large image number 2

Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head, large image number 3

No Air Shipments

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head

Powermatic

Please follow our Community Guidelines and be kind!

Description

Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutter head or the solid steel helical cutter head. The helical system makes fast work of knife changing and never needs adjustment.

California Proposition 65 Warning.

View Warning Label

Features

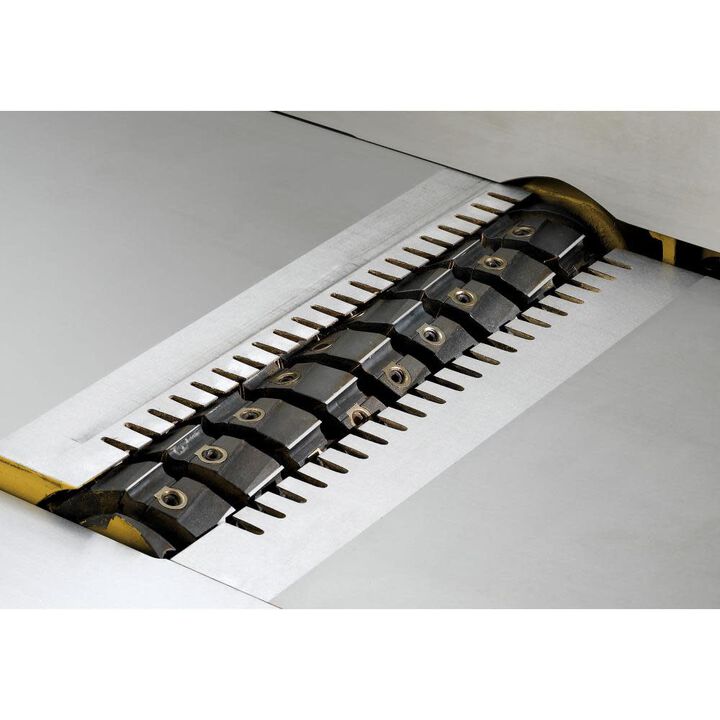

Helical cutter head with 2-sided carbide inserts for fast knife changes with no adjustments

Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play

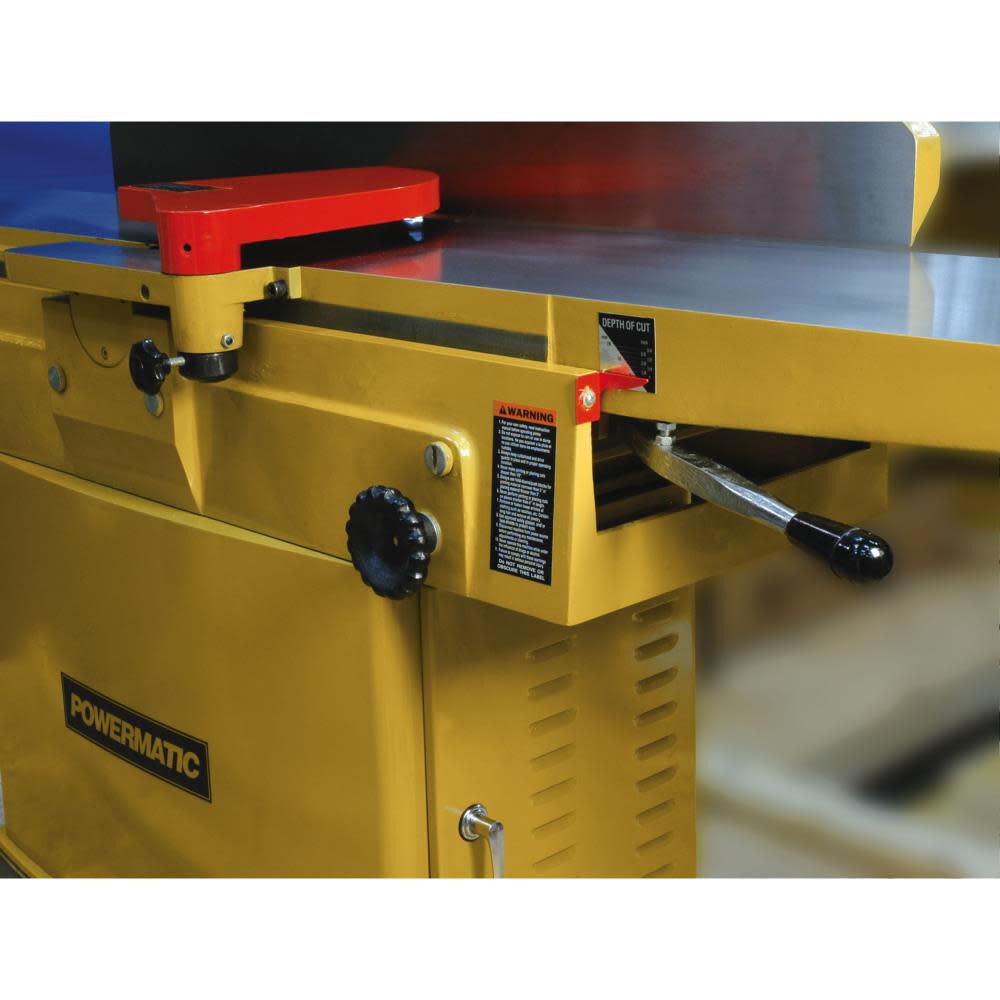

Parallelogram design for close table-to-cutter head proximity and fast depth of cut adjustments

Large 84 x 12 table surface for heavy-duty work

Table "lips" on both sides of cutter head aid in noise reduction

Full size rabbeting ledge supports large workpieces for rabbets up to 3/4-in deep

Motor provides plenty of power

Cutter head guard

Heavy duty fence

Dust port

Specifications

Brand Name

Powermatic

Amperage (A)

1.5

Assembled Weight (lbs)

762

Bench or Stationary

Bench

Blade Count

Blade Material

Steel

California Proposition 65 Warning Required

Yes

Color

Yellow

Country of Origin

Taiwan

CSA Certified

Pending

Dust Port

Yes

Horsepower (hp)

MFG Part # (OEM)

PM9-1791308

Maximum Cutting Depth (in)

0.75

Maximum Speed (rpm)

5000

Package Contents

12 in Jointer 3HP 3PH 230/460V Helical Head

Product Condition

New

Speeds

5000

Table Length (in)

Table Width (in)

UPC

662755506109

Voltage

230 Volts

Warranty Type

5 Years

Weight (lbs)

880.0

Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head
