Porter Cable 4.5 Amp Single Speed 1/4 In. Laminate Trimmer

SKU# PCE6430
Porter Cable 4.5 Amp Single Speed 1/4 In. Laminate Trimmer, large image number 0

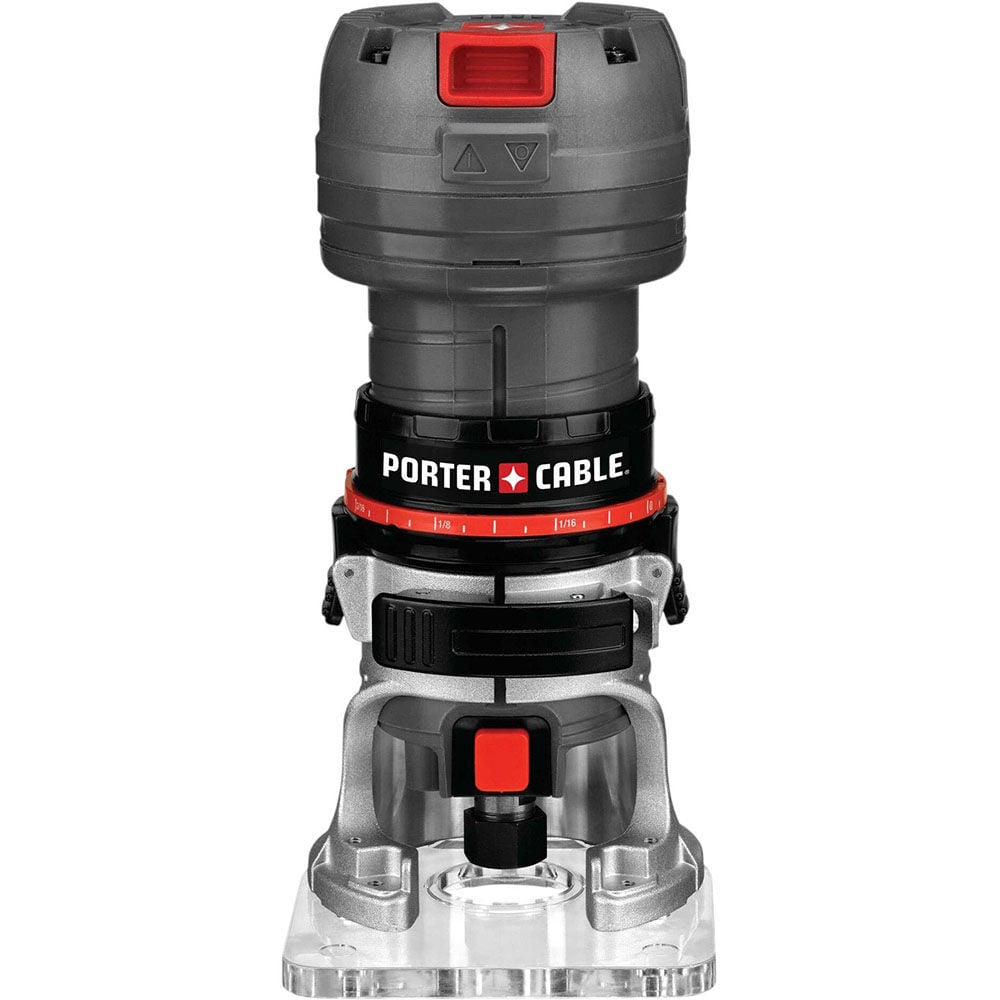

Porter Cable 4.5 Amp Single Speed 1/4 In. Laminate Trimmer, large image number 1
Porter Cable 4.5 Amp Single Speed 1/4 In. Laminate Trimmer, large image number 2

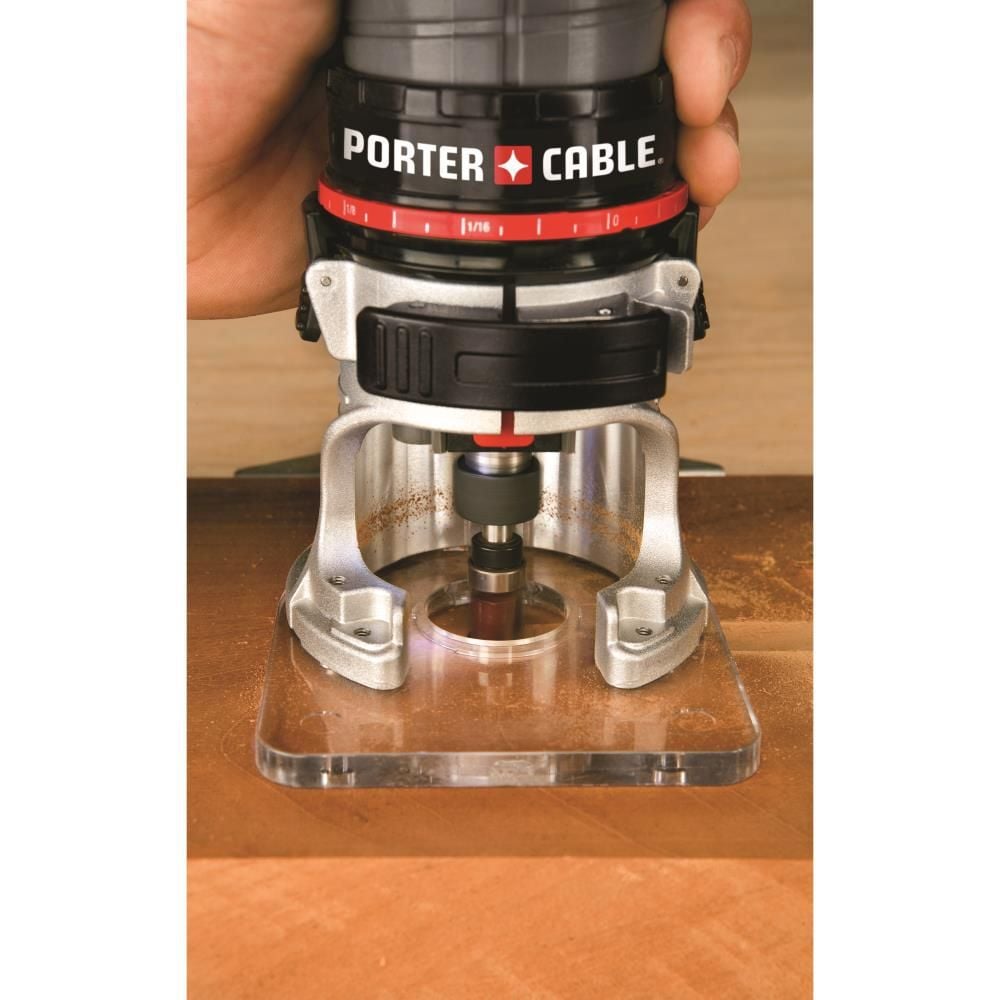

Porter Cable 4.5 Amp Single Speed 1/4 In. Laminate Trimmer, large image number 3
Previous Next
Discontinued by Manufacturer
Contact for more Information: 877-345-2263

Product Details

Porter Cable 4.5 Amp Single Speed 1/4 In. Laminate Trimmer
Porter Cable

Please follow our Community Guidelines and be kind!

Description

Porter Cable 4.5 Amp Single Speed 1/4 In. Laminate Trimmer

Choose the fixed-base Porter-Cable® 4.5 Amp Single Speed 1/4-Inch Laminate Trimmer to have precision and control for refined routing work. Use the laminate trimmer on wood or laminated surfaces for a variety of tasks, including trimming, edging, beveling and slotting, plus it's ideal for routing out mortises for hinges and strike plates. A 4.5-Amp motor powers the single-speed Porter-Cable laminate trimmer at 31,000 rpm. The collar of the trimmer has an adjustment ring that works in conjunction with a micro-scale ring to set the depth of cut. A locking lever on the Porter-Cable trimmer maintains cutting depth after it's set. The spindle holds a 1/4-inch collet, and quick-release tabs let you remove the router easily from its base for free-hand routing with jigs and templates. The electric laminate trimmer comes with an LED task light that shines through a clear sub-base for excellent workpiece visibility.

California Proposition 65 Warning.
View Warning Label

Features

31,000 RPM, 4.5-amp motor provides the power and durability required to cut in various materials
Perfect for most trimming, small edge forming and hinge routing applications
Ergonomics allow for comfortable, single-handed control
Precision-machined, cast-aluminum fixed base provides long term durability
Quick release clips to remove the motor from the base
Micro-set collar for quick and accurate bit height adjustments
Spindle-lock button allows for single-wrench bit changes
LED light and clear sub-base ensure maximum visibility in operation
Electric laminate trimmer comes with a 3-year limited warranty; 90-day money back guarantee and 1-year free service contract

Specifications

Brand Name
Porter Cable
Amperage (A)
4.5
Assembled Weight (lbs)
3.3
Blade Material
Metal
California Proposition 65 Warning Required
Yes
Color
Yellow
Country of Origin
China
Depth Adjustment
No
Dust Collection
No
Electronic Speed Control
No
ETL Listed
No
Handle Type
N/A
Height (in)
5.75
Horsepower (hp)
0.6
Length
96 in
Lock-on Switch
Yes

MFG Part # (OEM)
PCE6430

Maximum RPM
31000.0
Net Tool Weight (lbs)
3.3
Package Contents
Motor, Standard fixed base, 1/4" Collet, Collet Wrench, Straight Edge Guide, Operating Manual

Product Condition
New

Router Base Type
Fixed
Spindle Lock
Yes
Switch Type
On/Off
UL Listed
No

UPC
885911319881

Variable Speed
No
Voltage
120.0
Warranty Type
3 Year Limited, 1 Year Free Service, 90 Day Money Back
Weight (lbs)
3.6
