Milescraft PocketJig400 Professional Pocket Hole Kit

Name: Milescraft PocketJig400 Professional Pocket Hole Kit
Brand: Milescraft
SKU: 1327M
Price: 99.99 USD
Availability: InStock

SKU# 1327

Milescraft PocketJig400 Professional Pocket Hole Kit, large image number 0

Milescraft PocketJig400 Professional Pocket Hole Kit, large image number 1

Milescraft PocketJig400 Professional Pocket Hole Kit, large image number 2

Milescraft PocketJig400 Professional Pocket Hole Kit, large image number 3

Milescraft PocketJig400 Professional Pocket Hole Kit, large image number 4

Milescraft PocketJig400 Professional Pocket Hole Kit, large image number 5

Milescraft PocketJig400 Professional Pocket Hole Kit, large image number 6

+ 3 more

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Milescraft PocketJig400 Professional Pocket Hole Kit

Milescraft

Please follow our Community Guidelines and be kind!

Description

Milescraft PocketJig400 Professional Pocket Hole Kit

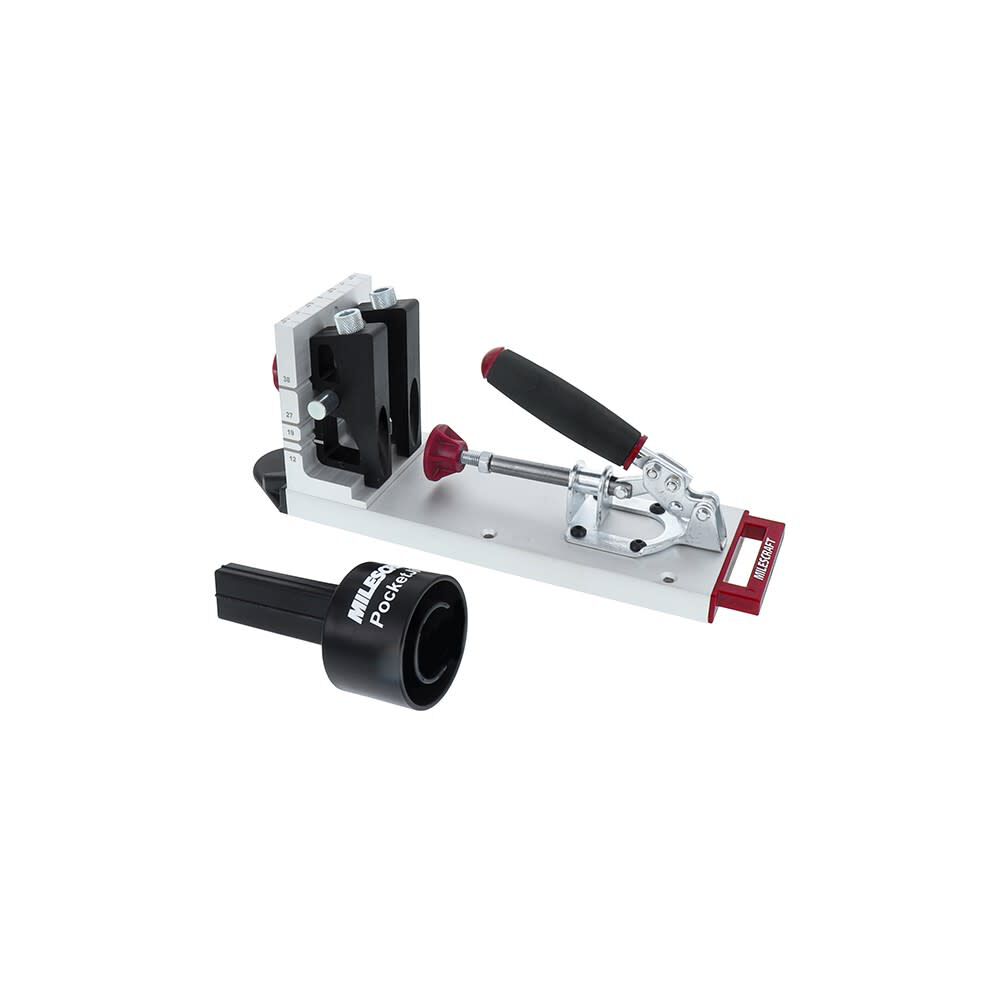

Creating professional quality pocket hole results has never been easier with the Milescraft PocketJig400™. Solid aluminum construction ensures accurate pocket holes and a long product life. The hardened steel bushings, dust extraction, and sleek design will make this your go-to for pocket hole joints going forward. A convenient storage drawer contains markings for all common board thicknesses to make setting the depth stop simple and easy. For mobile or repair jobs, the clamping wall of the PocketJig400™ is removable, turning it into a hand-held jig that fits and clamps almost anywhere. Kit comes complete with 3/8 In. Pocket Hole Bit, T20 Magnetic Driver, 3/8 In. Split-Ring Depth Stop, 60 Pocket Hole Screws, 10 Pocket Plugs, and 3mm Hex Key.

California Proposition 65 Warning.

Manuals

Instructions / Assembly - PDF

Features

All-Metal Construction: Increased rigidity reduces the flex for more precise results

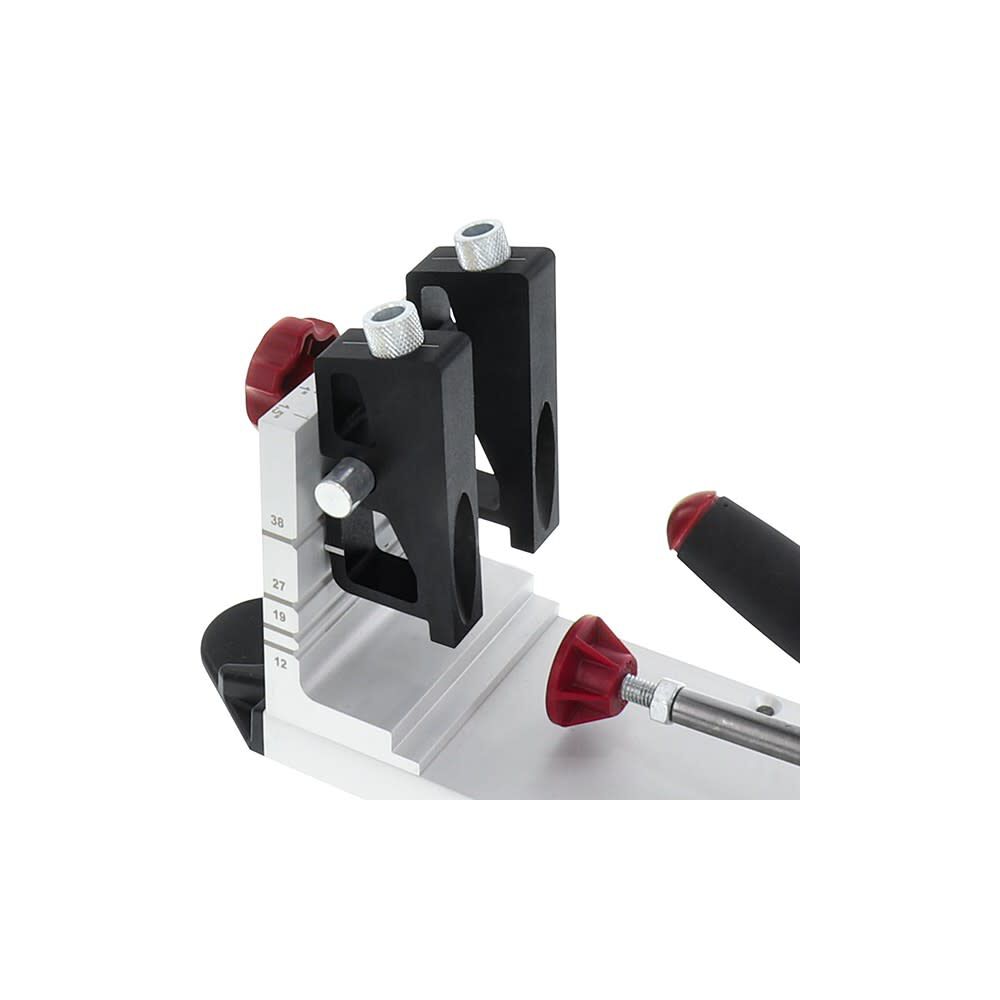

Durable Drill Guides: Height and width adjustable bushing blocks contain two, 3/8 In. steel drill guides that can be positioned for drilling boards from 1/2 In. up to 1-1/2 In. thick and holes from 3/4 In. to 3 In. apart

Dial In The Pressure: Steel toggle clamp with micro-adjust clamp-head dials in perfect clamping pressure for different board thicknesses

Store Your Stuff: Convenient storage drawer holds bits, drivers, depth stops, and more and contains markings for all common board thicknesses to make setting the depth stop simple and easy

Portable Pocket Hole: L-Base can be removed from main body and used for mobile pocket hole projects and repairs

Accessories Included: Kit comes complete with 3/8 In. Pocket Hole Bit, T20 Magnetic Driver, 3/8 In. Split-Ring Depth Stop, 60 Pocket Hole Screws, 10 Pocket Plugs, and 3mm Hex Key

Board Size Range: 1/2 In. to 1-1/2 In.1-1/4 In. T20 Self-Tapping PH Screws Fine x 10, 1-1/2 In. T20 Self-Tapping PH Screws Coarse x 10, 1 In. T20 Self-Tapping PH Screws Coarse x 10

Specifications

Brand Name

Milescraft

Assembled Weight (lbs)

Country of Origin

China

MFG Part # (OEM)

1327

Material

Aluminum Main Body, Hardened Steel Drill Guide

Package Contents

Main Jig Body with Toggle Clamp, Removeable L-shaped Clamping Wall, (2) Solid Steel Drill Guides, 3/8 In. Pocket Hole Bit, 6 In. T20 Magnetic Driver, 3/8 In. Split-Ring Depth Stop, (10) 1 In. Coarse Pocket Screws, (10) 1.25 In. Coarse Pocket Screws, (10) 1.25 In. Fine Pocket Screws, (10) 1.5 In. Coarse Pocket Screws, (10) 2 In. Coarse Pocket Screws, (10) 2.5 In. Coarse Pocket Screws, (10) 3/8 In. Pocket Plugs, and 3 mm Hex Key
