Milescraft HingeJig Self-Clamping Door Hinge and Latch Jig

Milescraft

Please follow our Community Guidelines and be kind!

Description

Milescraft HingeJig Self-Clamping Door Hinge and Latch Jig

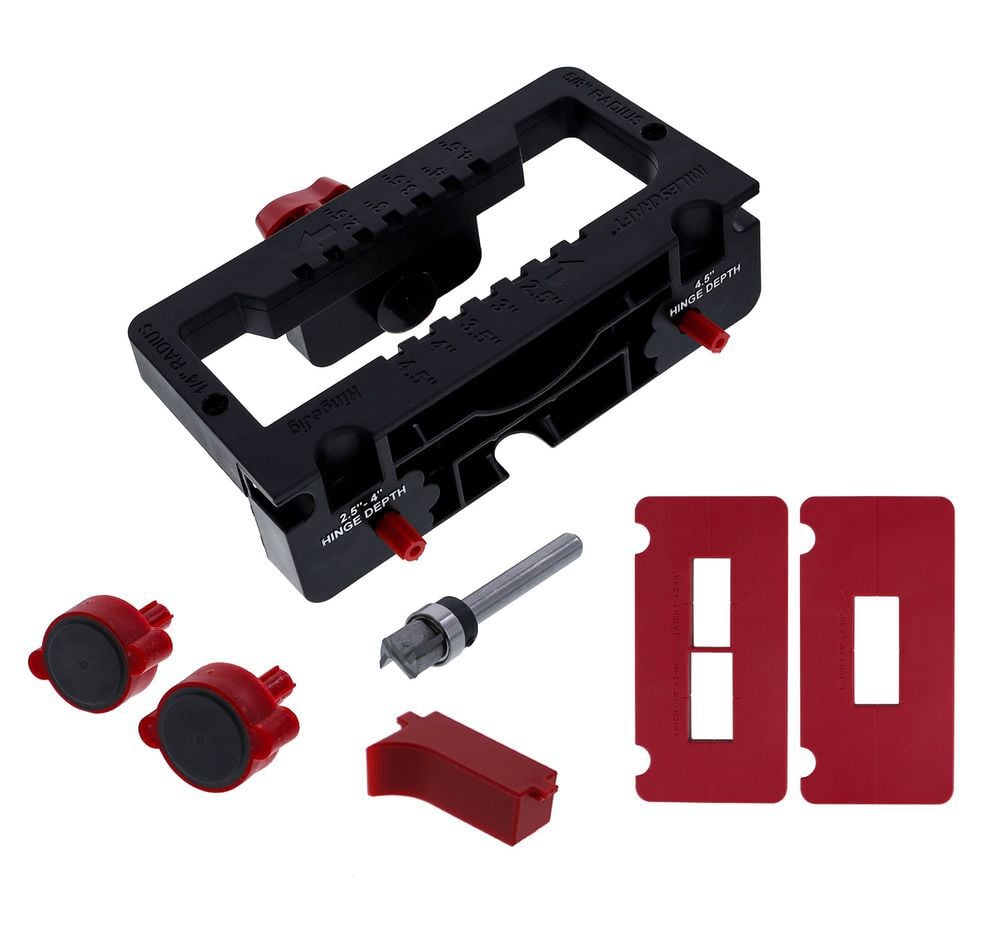

Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig™. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig™ in place while routing without the use of screws or nails that can leave holes in a finished door. Kit includes templates to rout common door latch mortises sized 1 In. x 2-1/4 In. , 1-1/8 In. x 2-1/4 In. , and 1-1/8 In. x 2-3/4 In. Not for use when routing door hinges on jamb/frame.

California Proposition 65 Warning.

Manuals

Instructions / Assembly - PDF

Features

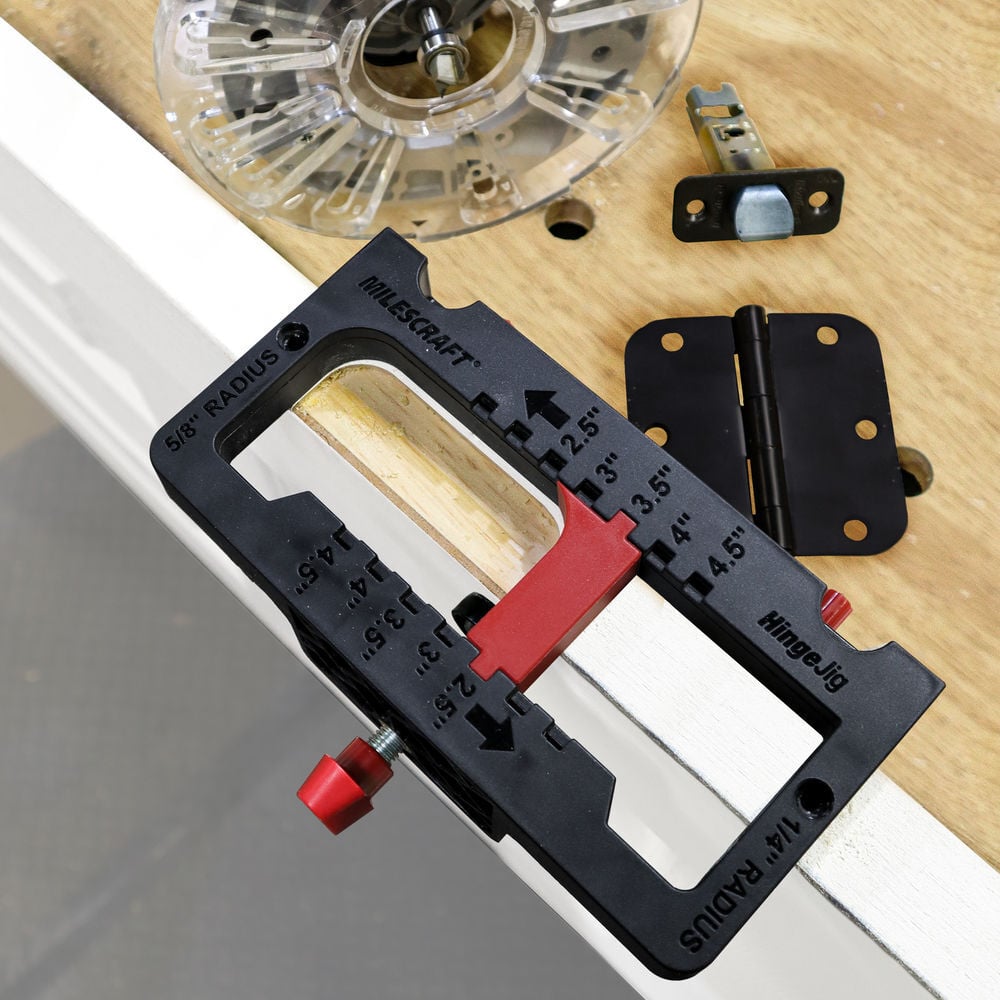

Self-Clamping: Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails

Fits All Doors: Adjustable settings allow door hinge jig to be used on all standard size 1-3/8 In. and 1-3/4 In. thick doors

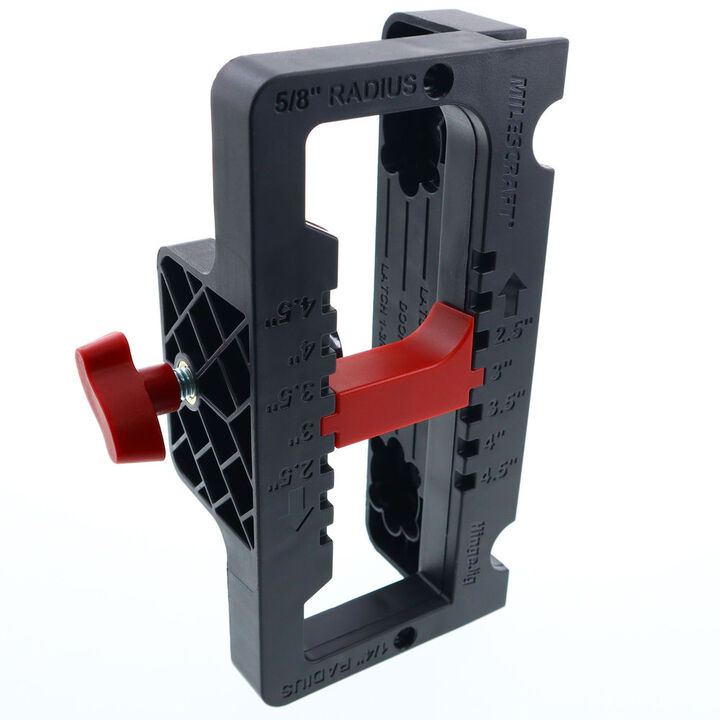

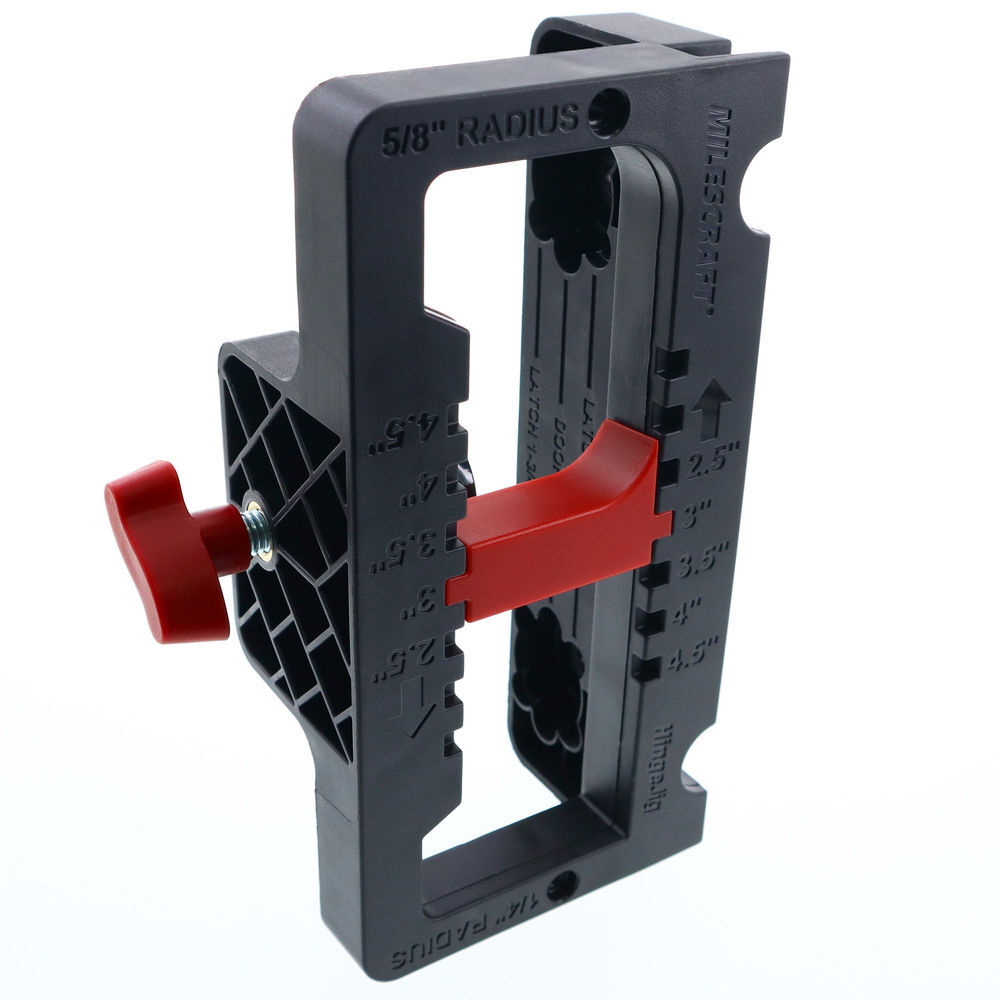

Works with Multiple Hinge Sizes: Routs hinge mortises for 2-1/2 In. to 4-1/2 In. hinges

Rout Different Radiuses: Cut professional hinge mortises with 1/4 In., 5/8 In., or square corners. (Chisel Required)

Unique Design: Design of the HingeJig™ eliminates need for multiple inserts to rout different hinge corner radiuses

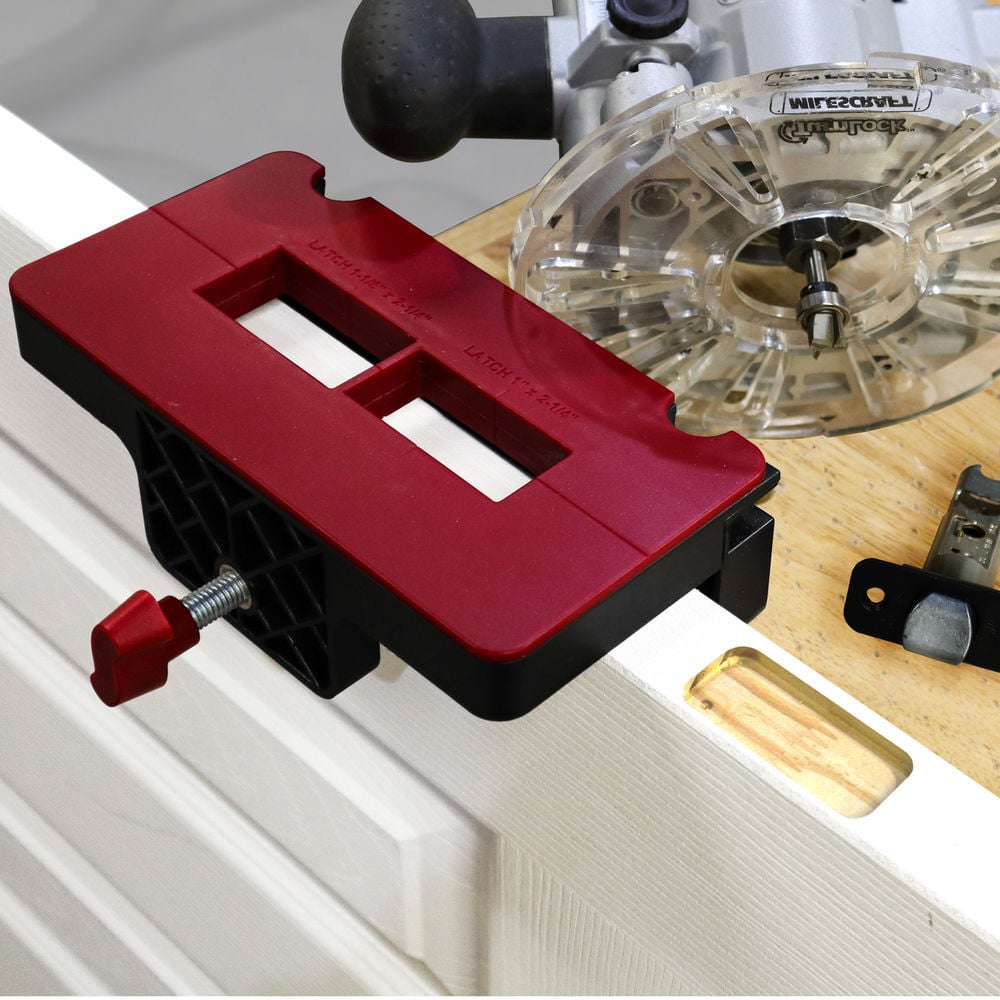

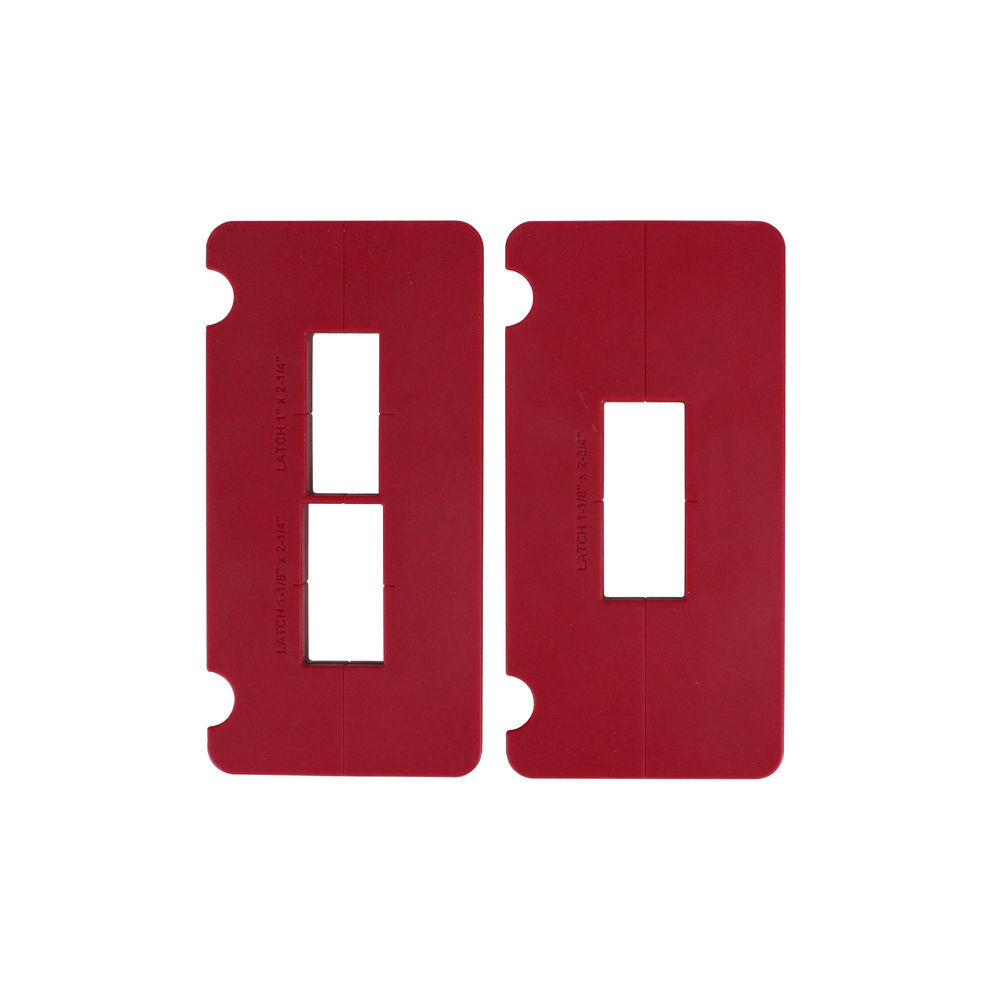

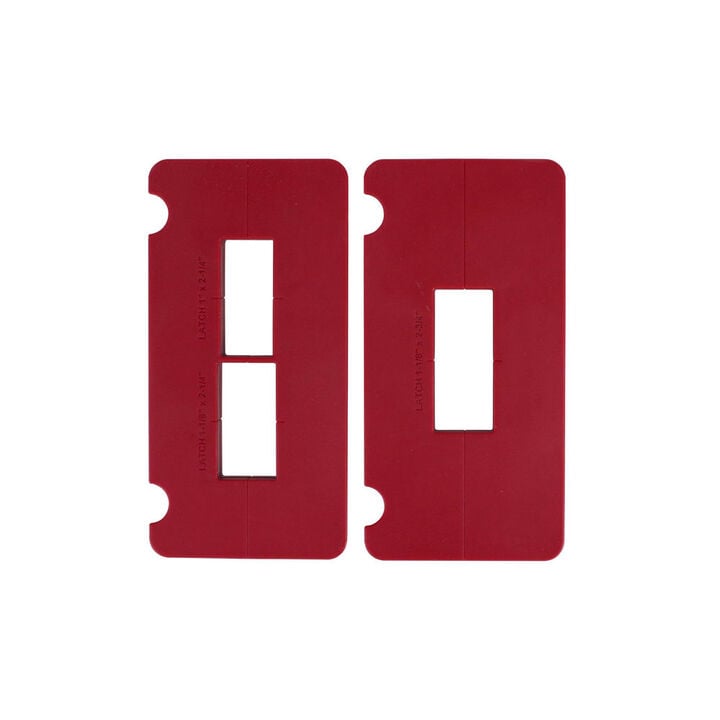

Create Latch Plate Mortises: Kit includes templates to rout common door latch mortises sized 1 In. x 2-1/4 In. , 1-1/8 In. x 2-1/4 In. , and 1-1/8 In. x 2-3/4 In.

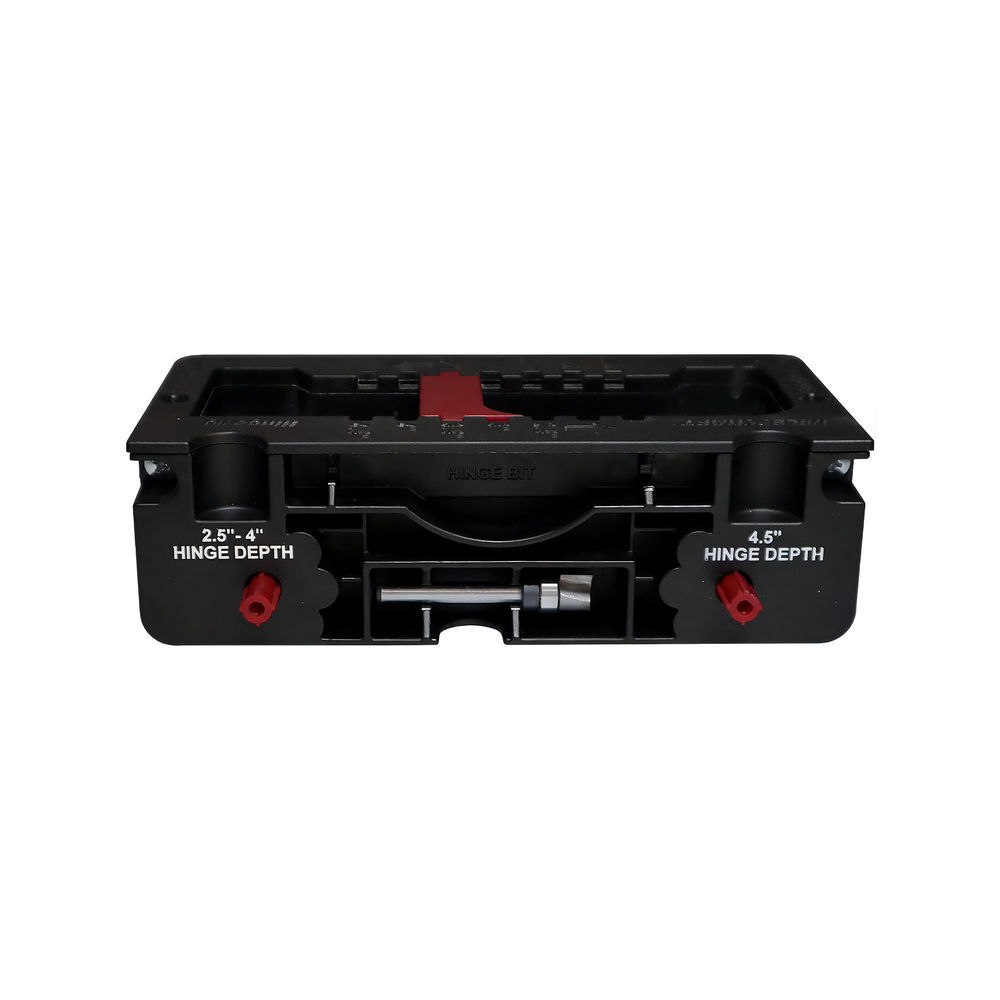

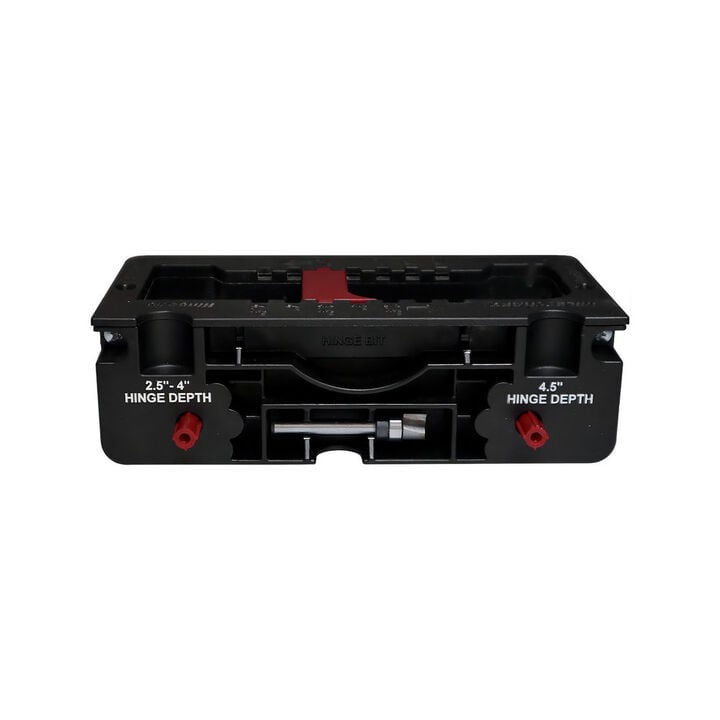

Built in Depth Setting: Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges

Self-Guided Router Bit: Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises

Built-in Storage: Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval

For Doors Only: Not for use when routing door hinges on jamb/frame
