Milescraft Euro Hinge Jig

Name: Milescraft Euro Hinge Jig
Brand: Milescraft
SKU: 1342M
Price: 27.99 USD
Availability: InStock

SKU# 1342

Milescraft Euro Hinge Jig, large image number 0

Milescraft Euro Hinge Jig, large image number 1

Milescraft Euro Hinge Jig, large image number 2

Milescraft Euro Hinge Jig, large image number 3

Milescraft Euro Hinge Jig, large image number 4

Milescraft Euro Hinge Jig, large image number 5

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Milescraft Euro Hinge Jig

Milescraft

Please follow our Community Guidelines and be kind!

Description

Milescraft Euro Hinge Jig

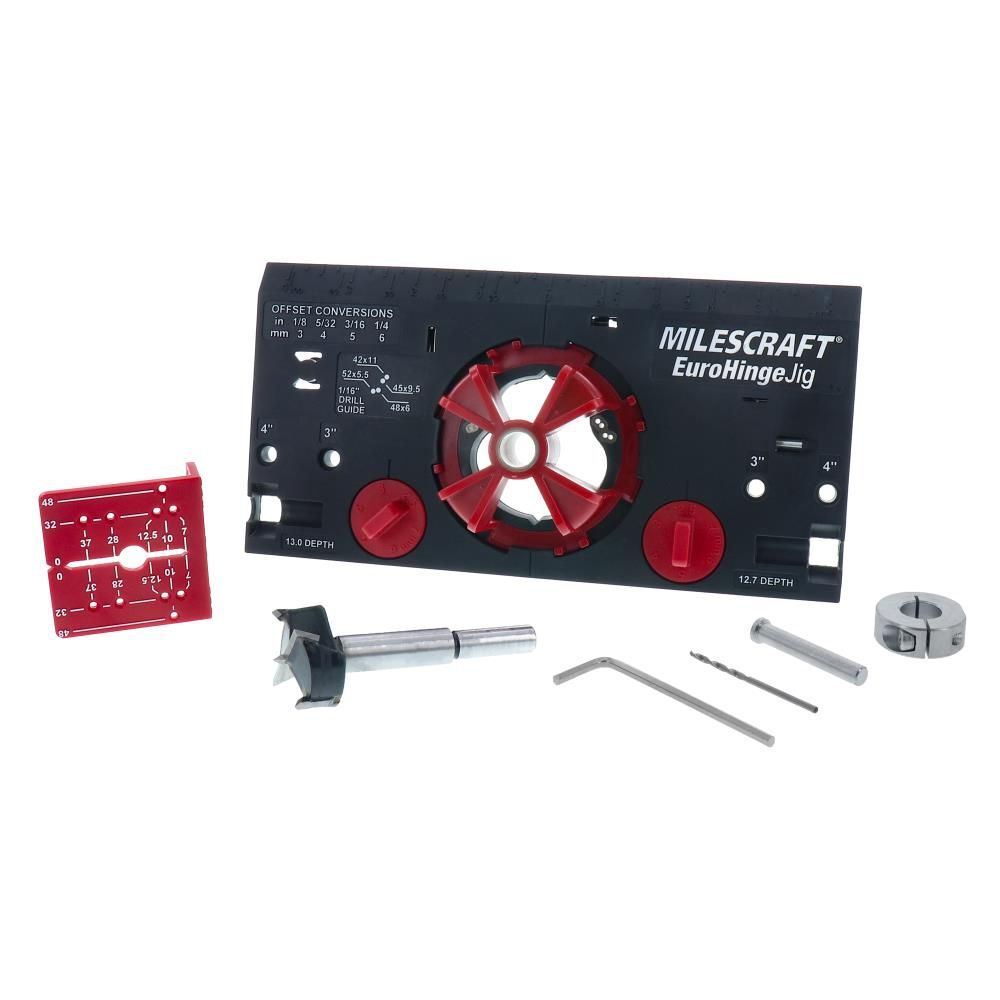

The Milescraft 1342 EuroHingeJig helps create and install perfect 35mm concealed hinges on your cabinet door projects. Perfect repeatable holes every time on both framed and frameless cabinets. The Jig aligns to 6 common cup hole edge distance settings and an edge locator pin quickly sets cup hole vertical position at 3" or 4". The Metal bushing drill guide provides accurate, repeatable drilling that doesn't wear down. Built in depth gauges on the left and right side of the jig allow you to set your hinge hole depth to one of two depths. The marking guide aligns measurements from door to frame. Included in the package are: Allen key, 1/16" drill bit for pilot holes, locator pin, and cabinet locator measuring tool.

California Proposition 65 Warning.

View Warning Label

Features

Two edge alignment knobs position the cup hole from the edge of the door, while the edge pin sets the distance from the top/bottom.

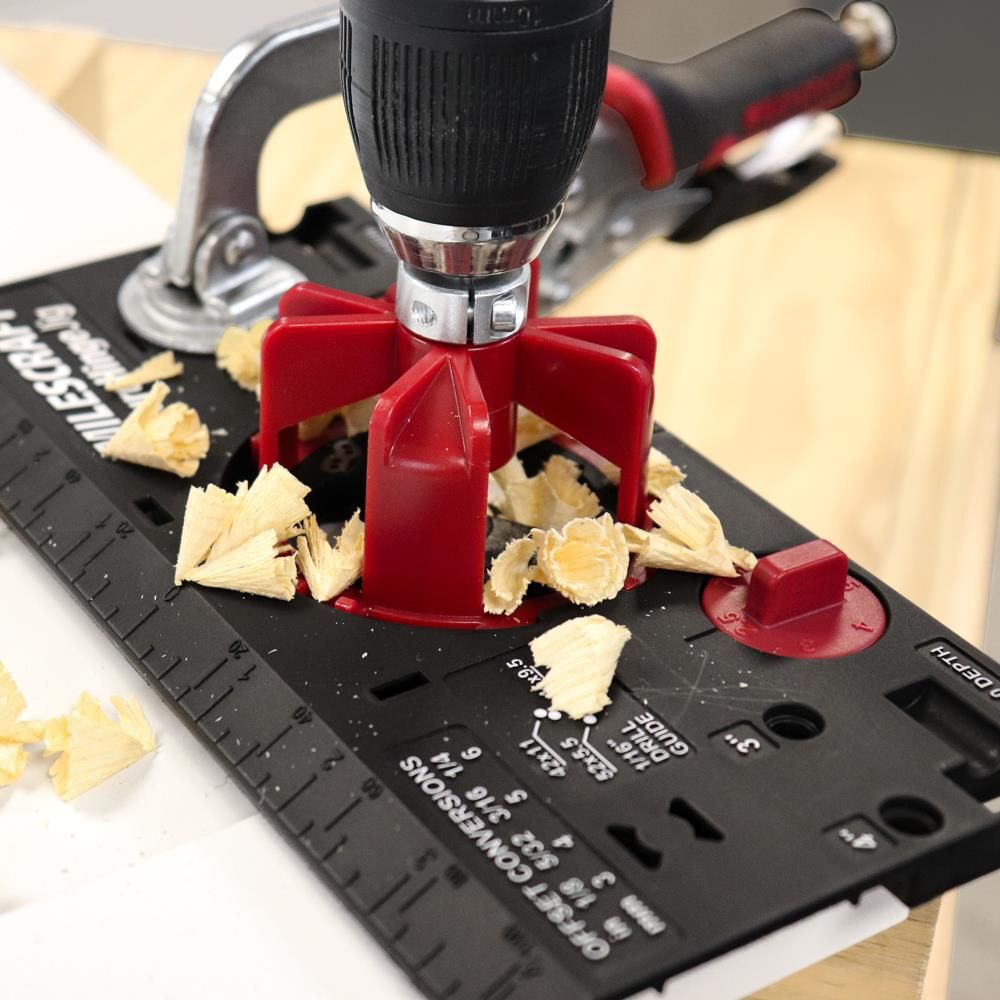

The drill guide with metal bushing locks into jig and creates a perfectly straight hinge cup hole

Guide bushings built into body of drilling jig leta you pre-drill pilot holes in 4 common locations, making sure hinges are straight and door closes true. The 1/16" diameter drill bit for pilot holes is included.

Easily set your cup hole depth on the included 35mm drill bit using the built-in depth setting fixtures on the left and right side.

The hinge marking guide detaches from bottom of jig and allows you to transfer and mark center lines and hinge location to cabinet wall or frame
