Milescraft CabinetPro 1-1/4 - 32 Inch Aluminum Hardware Installation Jig

Milescraft

Please follow our Community Guidelines and be kind!

Description

Milescraft CabinetPro 1-1/4 - 32 Inch Aluminum Hardware Installation Jig

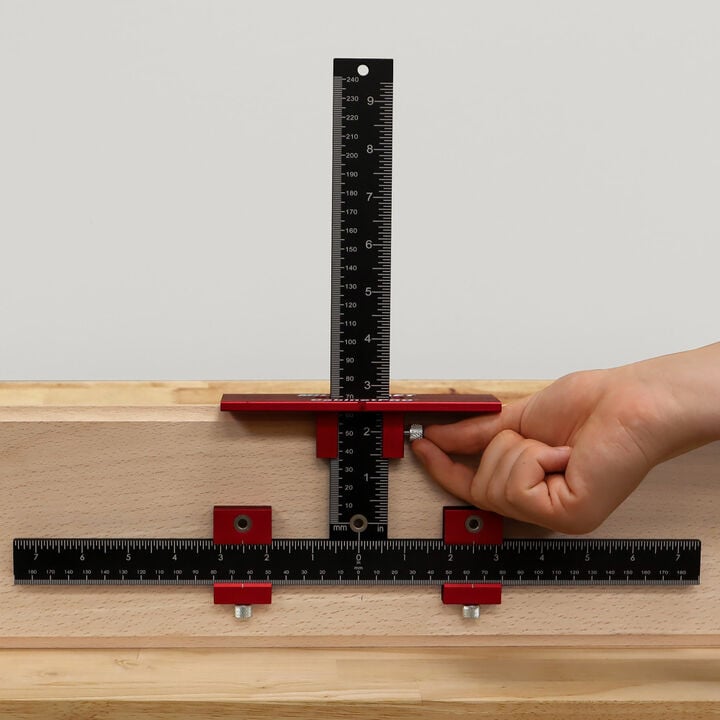

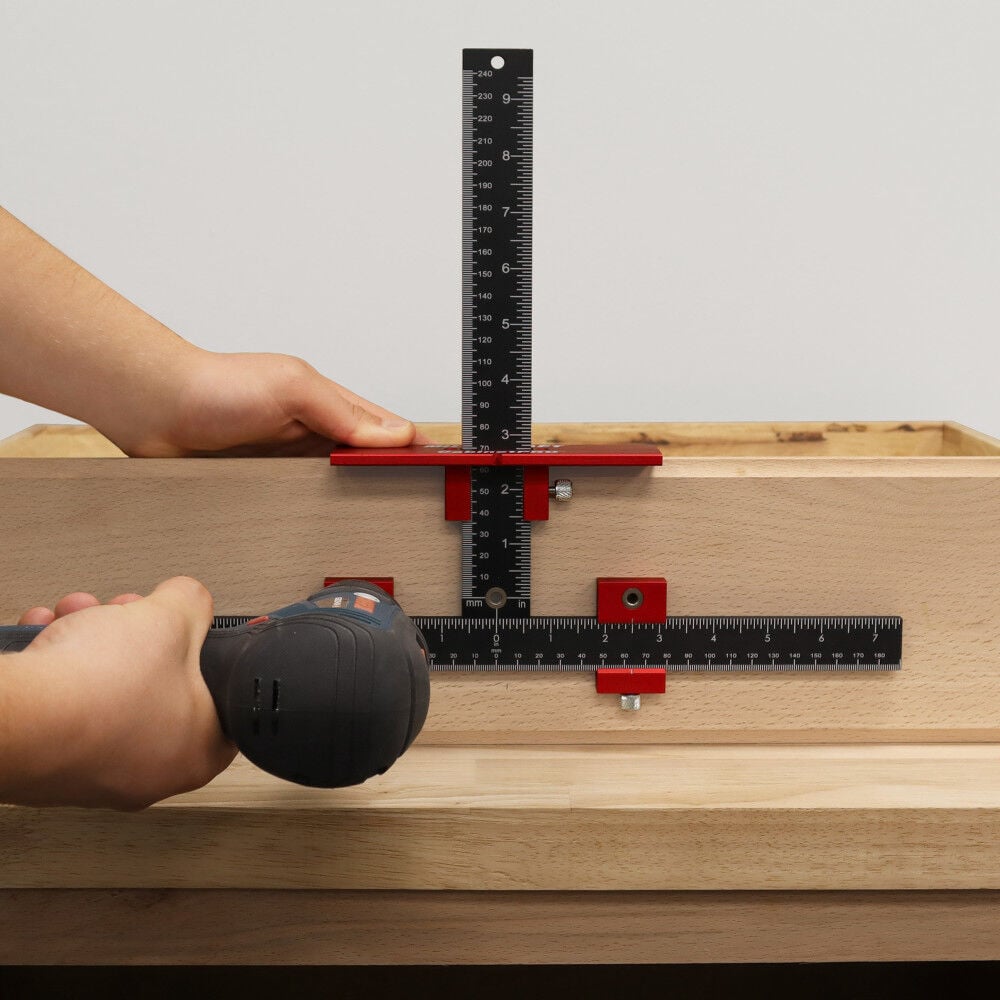

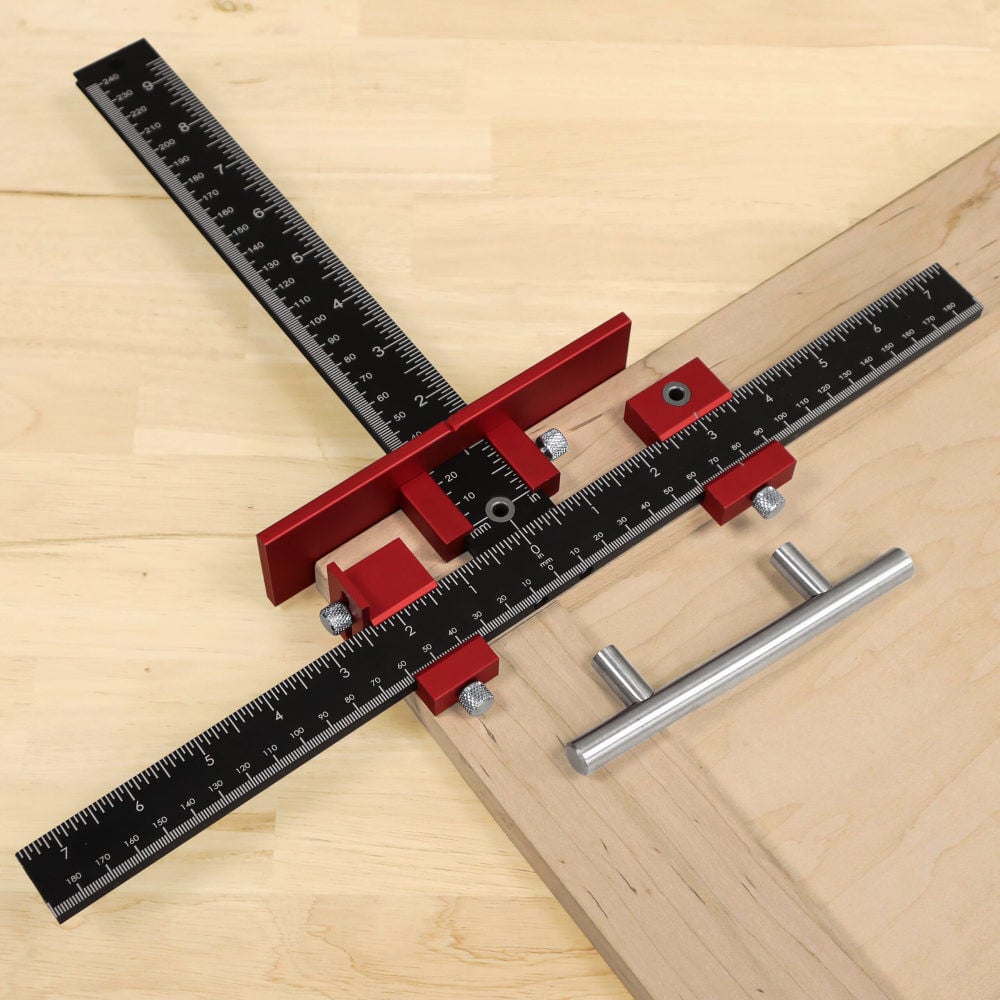

Tackle cabinet installation projects like a Pro with the CabinetPRO™ hardware installation jig, from Milescraft®. Eliminate guesswork and make cabinet drawer and door hardware installation fast and easy while delivering precision results. The 100% Metal Construction eliminates flexing, while precision etched high visibility scales, in both inches and metric, make sure the setting is correct every time. Quick-set hardened steel drill guides adjust to the required spacing, while dual-edge stops perfectly position the jig for knob, pull, and handle installation. Door after door, and drawer after drawer. The CabinetPRO™ is reversible. Drill both left and right door handles with a quick flip of the jig. No new settings required. The CabinetPRO™ can even be used to drill shelf pin holes due to the precise 32mm spacing between drill guides. Attaching the included Extension Ruler expands the range. With spacing from 1-1/4” to 32”, wide drawers, tall doors, and long hardware are easily installed. Convenient centering notches allow alignment of the jig to center marks, and the drill guides can be adjusted from zero. The CabinetPRO™ includes hardware spacers that set the drill guides at the perfect distance. Just place the spacers into the guides and adjust until the handle fits onto the centering cones. For protection during storage and transportation, the CabinetPRO™ comes pre-assembled in a heavy-duty foam-lined case. When done for the day, the jig can be stored with the current setup so it’s ready to get back to work.

California Proposition 65 Warning.

Manuals

Specification - PDF

Features

Install cabinet handles, pulls, and knobs like a professional.

All-Metal Construction - High Quality materials produce rapid, level, accurate results.

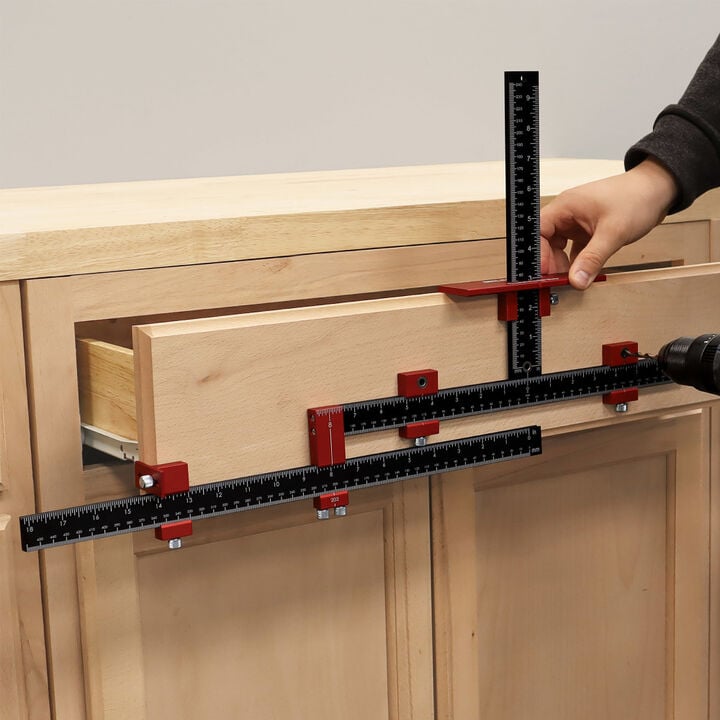

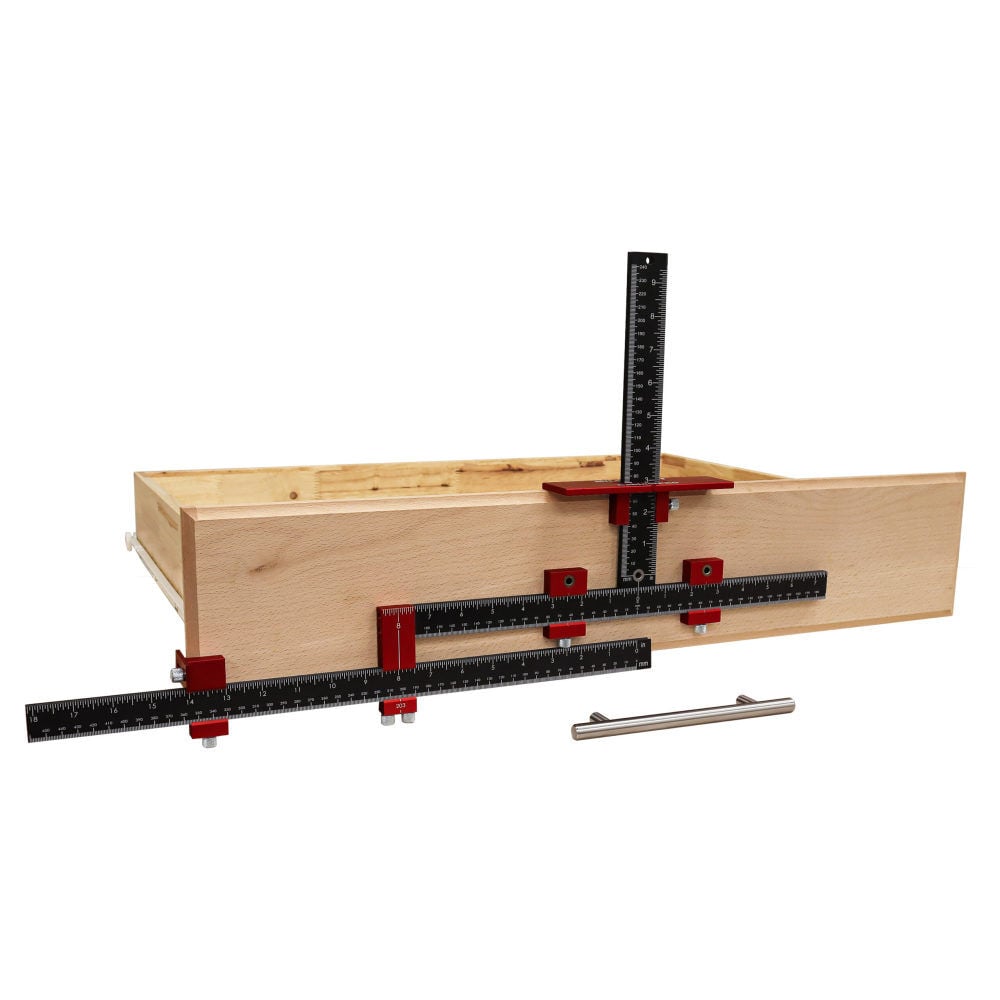

Extended Range - Included extension expands range up to 32”.

Precision Markings - High visibility laser etched scales in both metric and imperial measurements.

Quick & Repeatable - Reversable design with end stops transfers from door to door or drawer to drawer

Dual Use - 32mm drill guide spacing allows for drilling of up to 3 cabinet shelf pin holes at a time.

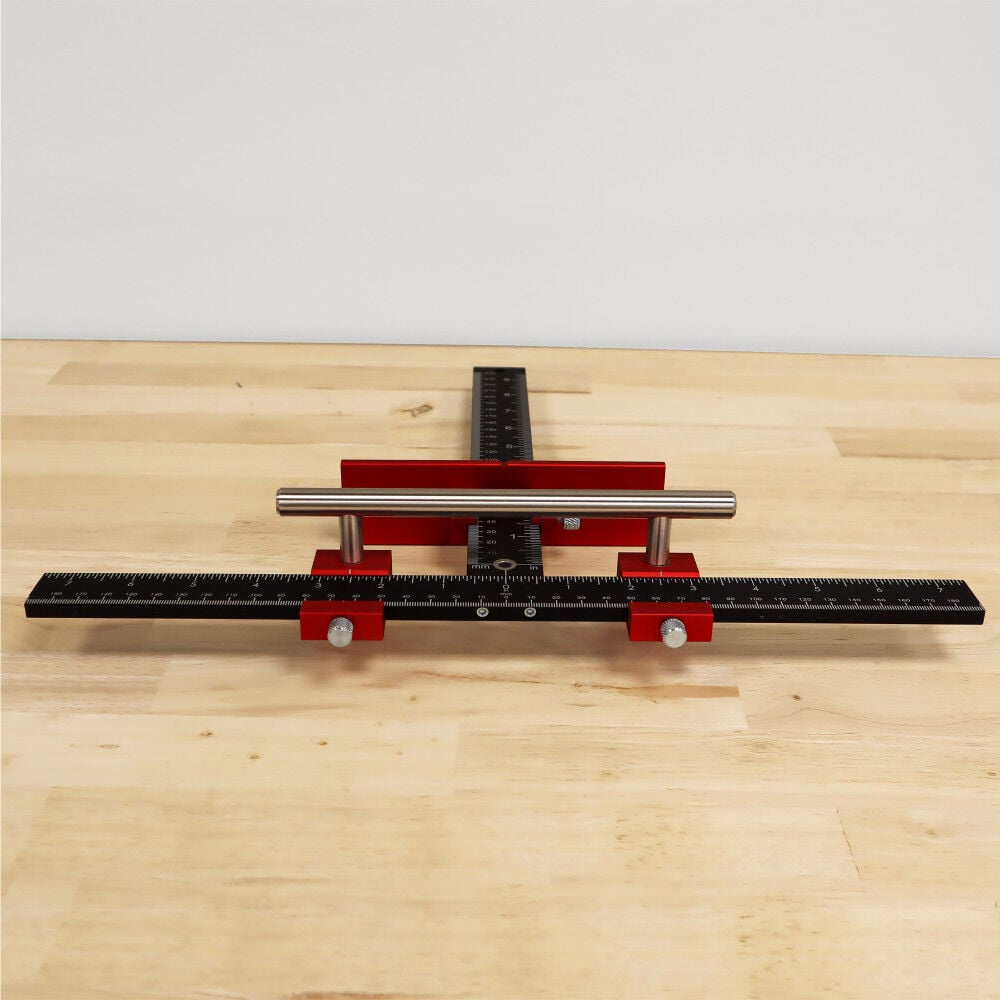

Easy Hardware Spacing - Included accessories automatically set guides to correct width for handles.

Safe Transport & Instant Setup - Rugged, foam lined carrying case provides protection and stores the CabinetPRO™ exactly as you left it the last time it was used. No need to reassemble or reset the settings.

Includes - 5 mm Brad Point, 2 mm Hex Key, 2.5 mm Hex Key, 3x Hardware Spacers
