mec Titan 40-S 40 Foot Rough Terrain Telescopic Boom Lift, Used 2013

mec

Please follow our Community Guidelines and be kind!

Description

mec Titan 40-S 40 Foot Rough Terrain Telescopic Boom Lift, Used 2013

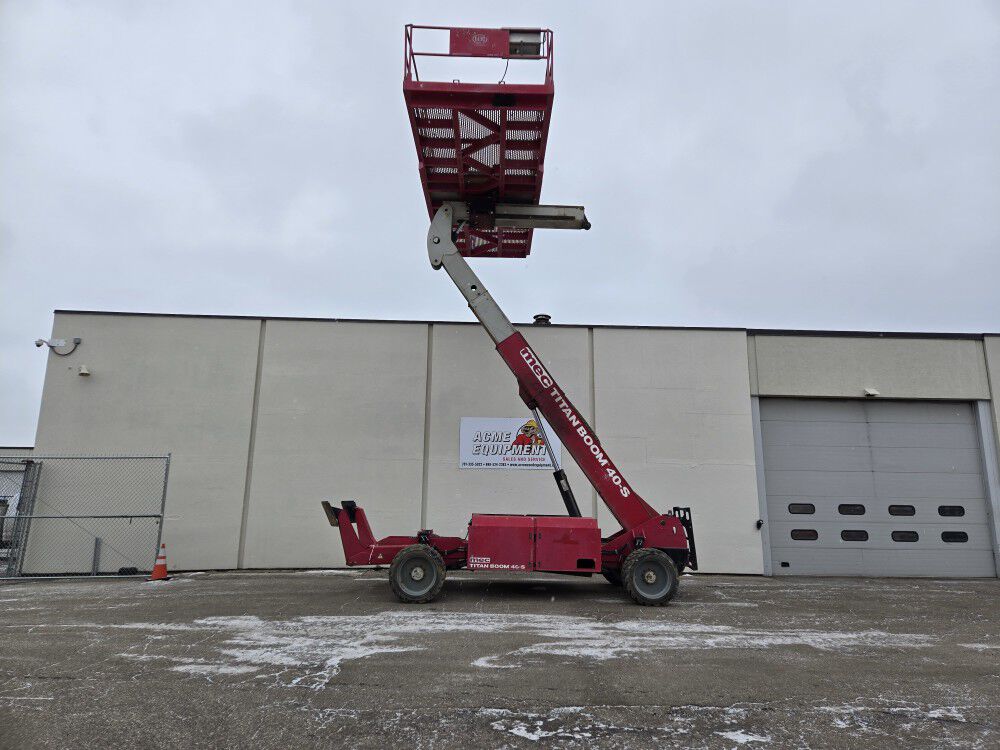

This USED 2013 mec (TITAN 40-S) rough terrain telescopic boom lift has a maximum lift height of 40 feet. It delivers an innovative synthesis between a boom lift, an ultra-scissor lift, and a telehandler. This mec model has a Kubota turbo diesel-powered engine and a 32-gallon fuel tank capacity. The platform offers 180-degree rotation and 18 Inches of ground clearance. The MEC Titan 40S is an award-winning self-propelled telescopic boom lift, providing great flexibility for safely performing various operations at heights. It features 4WD, 4WS, front outriggers, a battery blanket, and foam-filled tires.

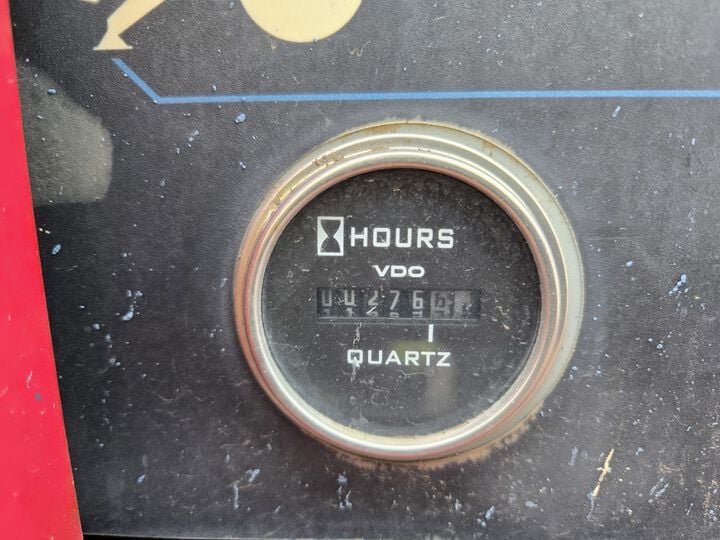

At the time of listing, this unit registered 1,842.6 total usage hours (Subject to Change) and was at our Acme Equipment of Grand Forks, ND 58203, at 3401 Gateway Drive. The hour meter was changed at 1,566 hours. Please call for more information.

California Proposition 65 Warning.

Features

4WD, 4WS, Front out riggers, battery blanket, foam filled tires, Horizontal Reach: Translation 55 Ft. at 22 Ft. elevation, Boom Platform Slider Boom Travel: 5 Ft. 10 In., Boom lift/lower 50/50 seconds, boom extend/ retract 30/30 seconds, rotation platform 180 deg, Personnel & Equipment: 1000 Lbs, Capacity Total: 4000 Lbs, Material Load: 3000 Lbs, Travel Speed Stowed: 4 Mph, Travel Speed Elevated: 0.5 Mph, Loading Height: 69 In., Maximum Drive Height: 30 Ft.

Award-Winning 3 in 1 Design: Designed to deliver 4000 Lbs capacity on a 22 Ft. x 90 In. ultra deck platform with boom outreach and rotation

3 Steering Modes: Gets in close to work areas with 2-wheel steer, 4-wheel steer and crab steer

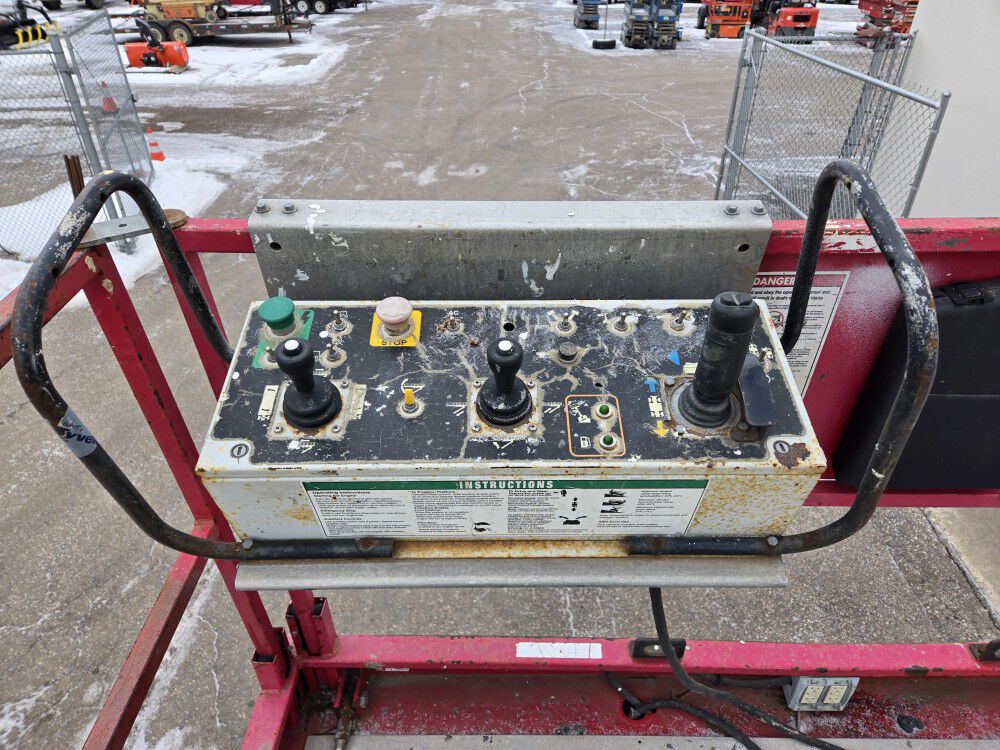

No Footswitch: 3 Proportional joysticks for better maneuverability and visibility in platform. Non-skid metal deck construction

Meets or exceeds the requirements of ANSI A92.20 and CSA B354.6 as applicable

4000 Lbs Combined platform capacity

3000 Lbs Material load zone in center of platform plus

1000 Lbs Distributed load for up to four (4) workers and tools

Easy access sliding side gates for material loading, pinless guardrail system for quick and simple guardrail lowering.

1842.6 Hours, located at Acme Equipment-3401 Gateway Drive, Grand Forks, ND 58203.

Specifications

Brand Name

mec

ANSI Approved

Yes

Assembled Weight (lbs)

24250

Capacity

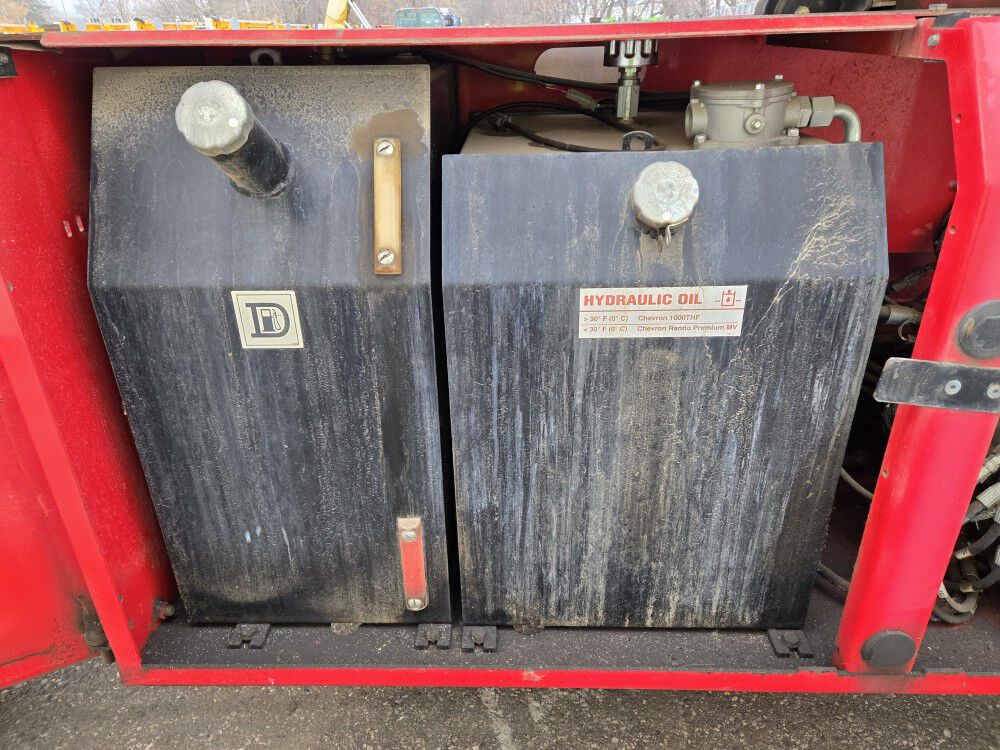

Fuel: 32 Gallon, Hydraulic: 40 Gallon

Country of Origin

United States

Drive Type

All Wheel Drive

Engine

Kubota Tier 4 Final Turbo Diesel

Fuel Type

Diesel

Ground Clearance (in)

Horsepower (hp)

Hours

1566

MFG Part # (OEM)

TITAN 40-S

Meets ANSI or OSHA Standards

Yes

Package Contents

(1) Boom Lift - Used 2013

Platform Length (in)

264

Platform Width (in)

Product Condition

Used

Restrictions

CA Prop 65

Size

40 Ft. Platform Height x 46 Ft. Working Height, 30 Ft. Maximum Drive Height, 26.6 Ft. Maximum Forward Telescope, 11.6 Ft. Maximum Reaward Platform, 5 Ft. 10 In. Platform Slider Boom Travel, 22.6 Ft. Length with Ladder Removed x 74 In. Loading Height x 84 In. Height with Rails Folded

Turning Radius (in)

228 Outside, 96 Inside
