mec 26 Ft. Xtra-Deck Micro Slim Electric Scissor Lift

mec

Please follow our Community Guidelines and be kind!

Description

mec 26 Ft. Xtra-Deck Micro Slim Electric Scissor Lift

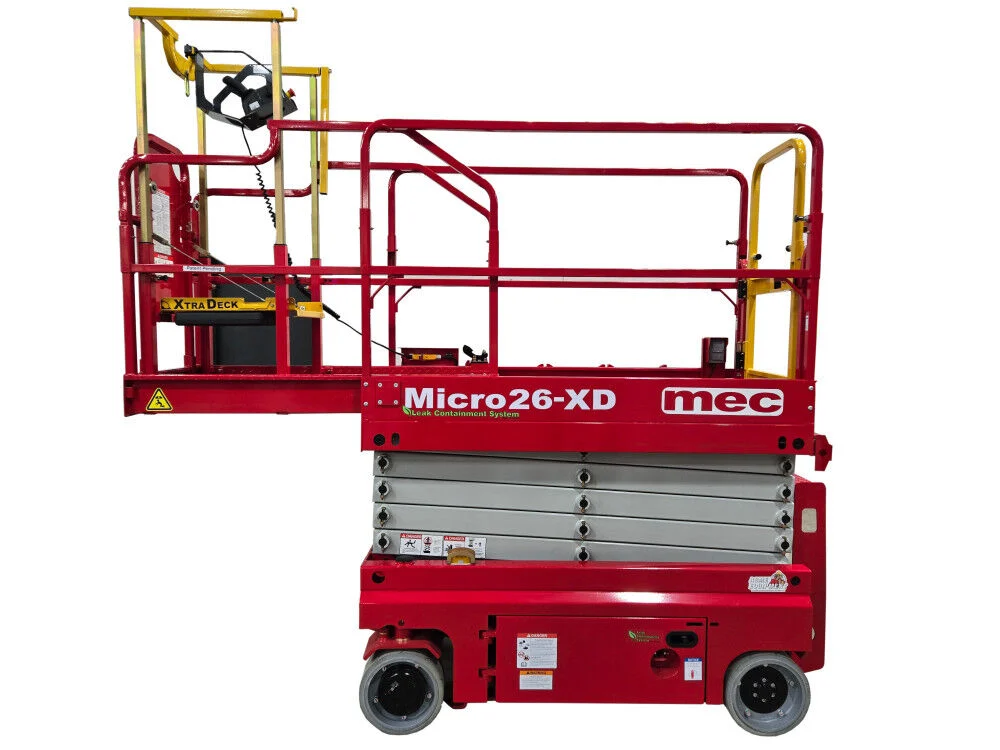

This new Mec Micro26-XD 26 Ft. electric scissor lift is equipped with an Xtra-Deck, a leak containment system, and a Pull-Down Xtra Deck that provides an additional 20 In. (50cm) of height for one person. Its class-leading 550 Lbs lift compliments its ability to maneuver its extremely small frame through small spaces, which more than makes up for it. Consequently, it is able to affect areas that larger lifts could never reach. This model specifically is one of MEC’s Xtra Deck series. This means the platform has an extra vertical extension, allowing operators to safely get a little extra boost where needed. Consequently, this machine can easily get where it needs to go and still have a significant effect. Additionally, like all MEC scissor lifts, this machine comes with the option for MEC’s patented Integrated Leak Containment System. An array of trays within the machine catches any leaking fluid and stops it from spilling. Consequently, it keeps hydraulic fluid, which might otherwise damage flooring, contained. Additionally, this is at no cost to the operator’s safety. It is located at Acme Equipment-3401 GATEWAY DRIVE, Grand Forks, ND 58203.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Specification - PDF

Features

Lightweight - Micro scissor design with true slide-out deck and low floor loading (Uniform pressure: 285 Lbs, Maximum localized pressure: 156 Lbs).

Ultracompact design - Fits on most elevators and into tight work areas.

Spacious 2-Person Platform (Indoors)/1-Person Platform (Outdoors) with 500 lb. (227 kg) Capacity.

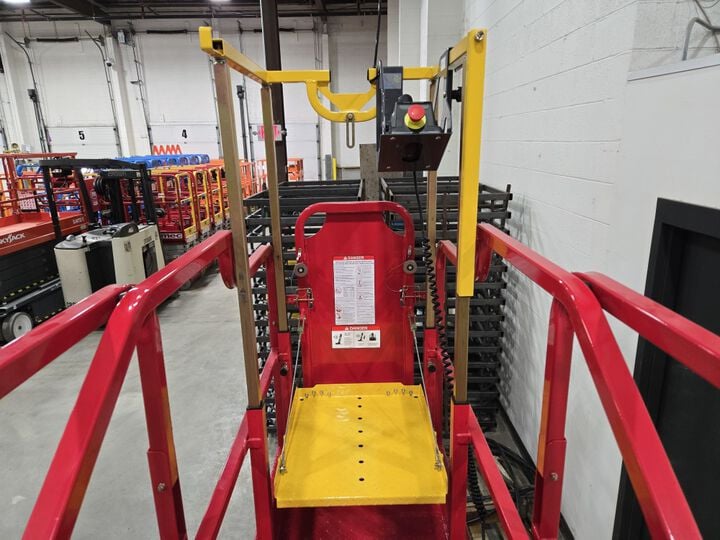

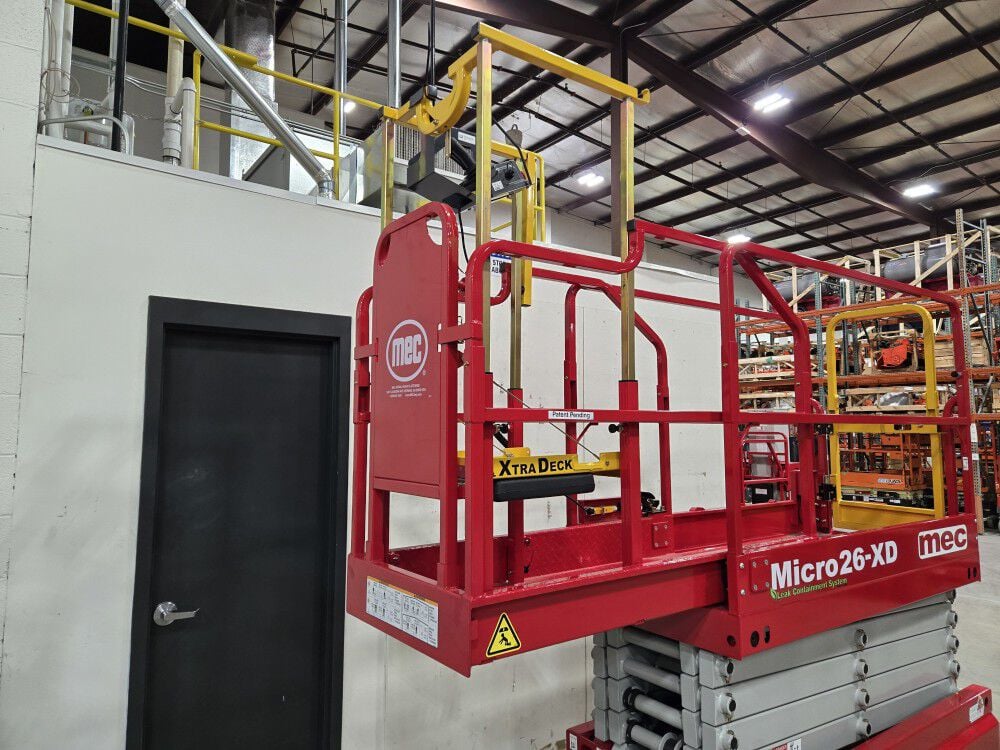

Work area - Roll-out deck extension with incremental locking positions. Standard full-height swing gate. Lanyard attachments (2). Xtra Deck® additional 20 In. height platform. Patent pending.

Performance - AC Electric drive, fully proportional drive, and lift controls. Up to 25% gradability. Power - 240Ah AGM Batteries, battery charge indicator.

Serviceability - Lubrication-free scissor bearings, easy maintenance access to mechanical and electrical components in swing-out trays, and a parking brake release switch for towing.

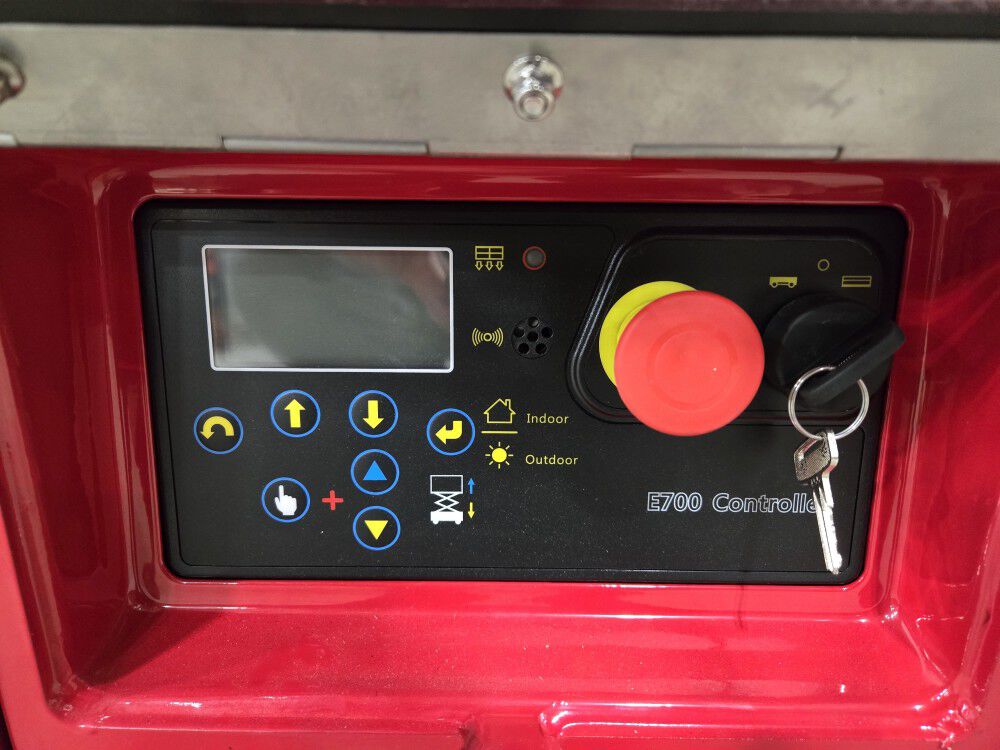

Safety - Lift control orientation designed to mitigate entrapment, dedicated compartments protect electrical and hydraulic components, emergency shut-off at the platform and lower controls, non-skid metal deck construction, descent alarm, drive speed interlock, multi-axis tilt sensor, multiple disk brakes, scissor maintenance lock, automatic parking brakes, automatic pothole protection, and Xtra Deck® solution to standing on the mid rails.

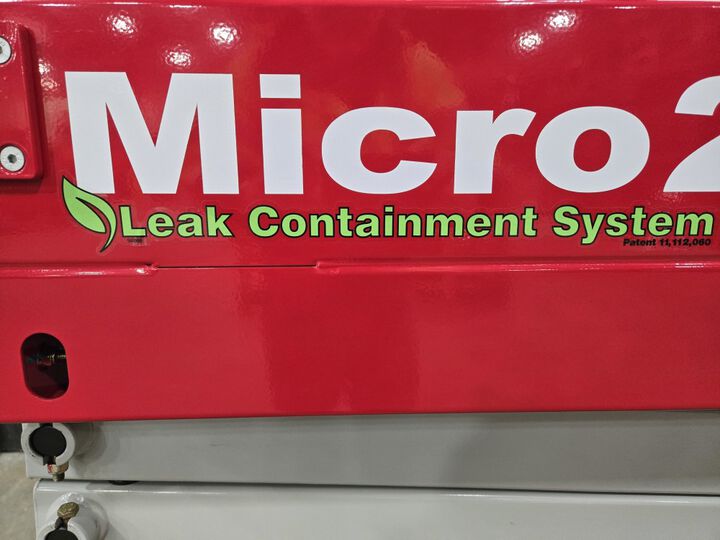

Leak Containment System® (LCS) Patent Number 11,112,060, removable upper controls, voltage-compensating fully automatic battery charger, hour meter, machine tie downs, non-marking tires, all-motion alarm, forklift pockets, flashing beacon.

Indoor working height - 31 Ft., Outdoor working height - 24 Ft., Indoor platform height - 25 Ft., Outdoor platform height - 18 Ft., Guardrail height - 43.5 In., Toeboard height 6 In., Ground clearance (stowed) - 3 In.

Wheelbase - 55 In., Total lift capacity - 550 Lbs, Roll-out deck capacity - 250 Lbs, Raise speed - 30 seconds, Lower speed - 25 seconds, Drive speed (stowed) - 3 Mph, Drive speed (elevated) - 0.5 Mph, Gradeability - 25%, Turning radius (inside) - 6 In.

Specifications

Brand Name

mec

Assembled Weight (lbs)

4450

Battery Ampere-hour (Ah)

240

Country of Origin

United States

Ground Clearance (in)

MFG Part # (OEM)

MICRO26-XD

Package Contents

(1) Scissor Lift

Product Condition

New

Restrictions

CA Prop 65

Size

74 In. Length Stowed, 32 In. Width, 68 In. Length-Stowed (Ladder Removed), 31.9 In. Chassis Width, 103.5 In. Platform Length (Extended), 68 In. Platform Length (Retracted), 35.5 In. Roll-Out Deck Length, 22 In. Xtra-Deck Width

Tire Size

12 In. x 5 In.

Turning Radius (in)

6 (Inside)
