Makita 18V LXT 4.0Ah Lithium-Ion Brushless Cordless 21 Degree Full Round Head 3-1/2 Inch Framing Nailer Kit
Makita

Please follow our Community Guidelines and be kind!

Description

Makita 18V LXT 4.0Ah Lithium-Ion Brushless Cordless 21 Degree Full Round Head 3-1/2 Inch Framing Nailer Kit

The Makita 18V LXT® 21° Full Round Head 3 1/2" Framing Nailer (XNB03) drives full-round head nails into dense engineered lumber with the power of a pneumatic nailer. The XNB03 can drive up to 1,000 framing nails on a single charge of an 18V LXT® 6.0Ah battery. The Framing Nailer is also available as a kit (Framing Nailer (XNB03M1) that features the tool, a No‑Mar Tip (4130T1-3), a Hex Wrench (783202-0), a Belt Hook, XNB03Z, XNB07Z (347C14-9), a Rafter Hook (141X57-7), an 18V LXT® Lithium-Ion 4.0Ah Battery (BL1840B), an 18V LXT® Lithium-Ion Rapid Optimum Charger (DC18RC), and a Tool Case. The 21° Full Round Head 3 1/2" Framing Nailer features a two-mode selector switch that allows the operator to select sequential nailing or bump fire options. It features an anti-slip nose for controlled nailing at almost any angle. The Framing Nailer features a “tool-less" depth adjustment engineered for more precise flush and countersink nailing. The XNB03 is equipped with an anti-dry fire mechanism engineered to help prevent driving blanks, and the Nailer features a rear lock-and-load magazine with 41 nail capacity for maximum efficiency. The Framing Nailer drives 21º plastic collated framing nails from 2" to 3-1/2" in length and .113 to .148 in diameter. It weighs only 11.9 lbs. with an 18V LXT® battery (battery not included) for reduced operator fatigue. Convenience features include a built-in L.E.D. light that illuminates the work area, a belt hook with a retractable extra-wide tool hook that secures the tool when not in use, and an ergonomically designed handle with a rubberized soft grip that provides increased user comfort.

California Proposition 65 Warning.
View Warning Label

Manuals

MSDS - PDF
Instructions / Assembly - PDF

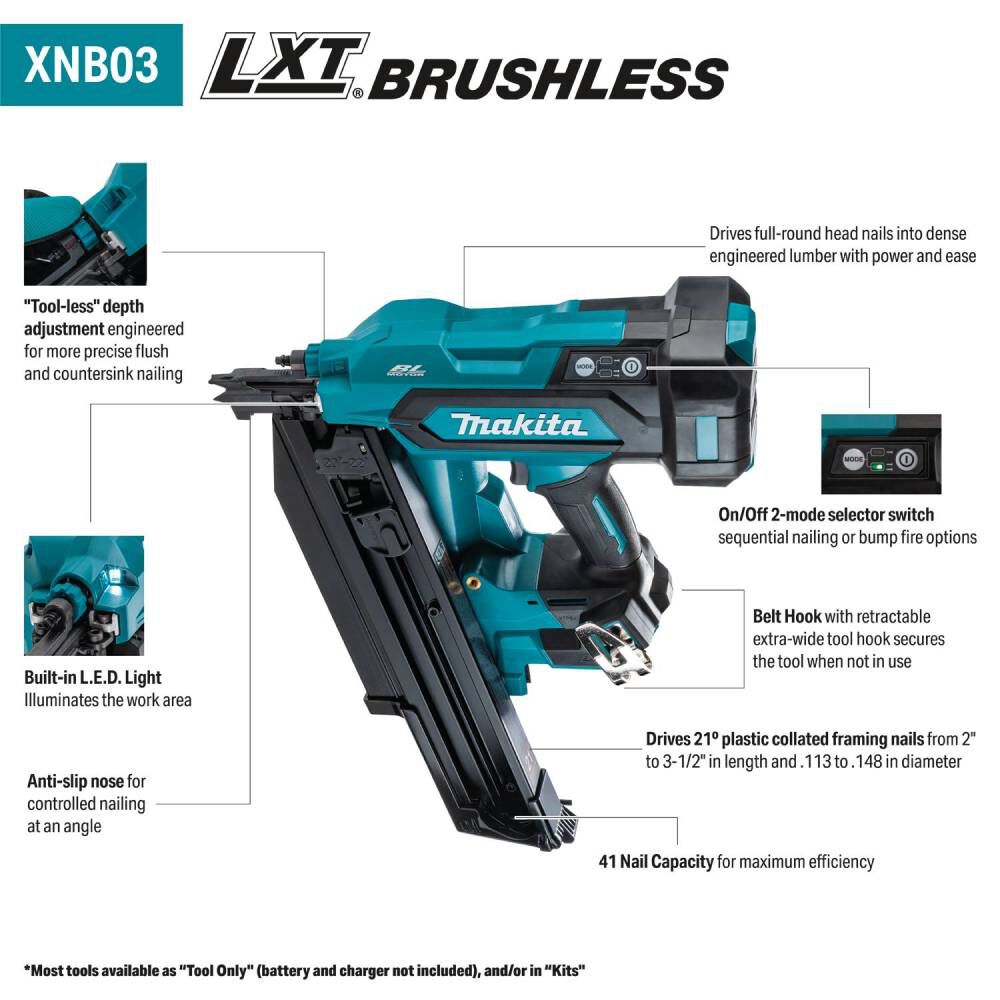

Features

Built-in L.E.D. light illuminates the work area
Rear lock-and-load magazine with 41 nail capacity for maximum efficiency
Weighs only 11.9 lbs. with 18V LXT® for reduced operator fatigue
Anti-dry fire mechanism engineered to help prevent driving blanks
"Tool-less" depth adjustment engineered for more precise flush and countersink nailing
Anti-slip nose for controlled nailing at an angle
2-mode selector switch allows operator to select sequential nailing or bump fire options
Drives up to 1,000 framing nails on a single charge*
Drives full-round head nails into dense engineered lumber with power and ease
Ergonomically designed handle with rubberized soft grip provides increased comfort
Drives 21º plastic collated framing nails from 2" to 3-1/2" in length and .113 to .148 in diameter
Only use genuine Makita batteries and chargers
*Using a 18V LXT® 6.0Ah Battery
Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
Extended Capacity Magazine Set that holds 78 Nails part no.1914P2-4 available (sold separately)
18V LXT® Lithium-Ion 4.0Ah battery BL1840B reaches a full charge in 55 minutes or less
3-year limited warranty on tool, battery and charger
Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
Compatible with Makita 18V Lithium-Ion batteries with a Star symbol

Specifications

Brand Name
Makita
Assembled Weight (lbs)
12.260
California Proposition 65 Warning Required
No
Country of Origin
Japan
Package Contents
(1) 18V LXT® Brushless 21º Full Round Head 3-1/2" Framing Nailer (XNB03Z); (1) 18V LXT® Lithium-Ion 4.0Ah Battery (BL1840B); (1) 18V LXT® Lithium-Ion Rapid Optimum Charger (DC18RC); (1) No‑Mar Tip, XNB03Z, XNB07Z (4130T1-3); (1) Hex Wrench (783202-0); (1) Belt Hook, XNB03Z, XNB07Z (347C14-9); (1) Rafter Hook, XNB03Z, XNB07Z (141X57-7); (1) Tool Case

Product Condition
New
