Makita 1 In. SDS+ Rotary Hammer

SKU# HR2475
Makita 1 In. SDS+ Rotary Hammer, large image number 0
Makita 1 In. SDS+ Rotary Hammer, large image number 1
Makita 1 In. SDS+ Rotary Hammer, large image number 2
Makita 1 In. SDS+ Rotary Hammer, large image number 3
Makita 1 In. SDS+ Rotary Hammer, large image number 4
Makita 1 In. SDS+ Rotary Hammer, large image number 5
Makita 1 In. SDS+ Rotary Hammer, large image number 6
Makita 1 In. SDS+ Rotary Hammer, large image number 7
Makita 1 In. SDS+ Rotary Hammer, large image number 8
Makita 1 In. SDS+ Rotary Hammer, large image number 9
Makita 1 In. SDS+ Rotary Hammer, large image number 10
Makita 1 In. SDS+ Rotary Hammer, large image number 11
Makita 1 In. SDS+ Rotary Hammer, large image number 12
Makita 1 In. SDS+ Rotary Hammer, large image number 13
Makita 1 In. SDS+ Rotary Hammer, large image number 14
Makita 1 In. SDS+ Rotary Hammer, large image number 15
Previous Next
+ 11 more
Discontinued by Manufacturer
Contact for more Information: 877-345-2263

Product Details

Makita 1 In. SDS+ Rotary Hammer
Makita

Please follow our Community Guidelines and be kind!

Description

Makita 1 In. SDS+ Rotary Hammer

The Makita 1 Inch rotary hammer is powered by a 7 Amp motor that delivers up to 2.7 joules of impact energy and 0 to 4500 BPM for most demanding applications. The ergonomically designed D-shaped handle is provided with soft grip so that the user can work for long duration without any fatigue. The 3-mode switch allows for fast mode change between rotation only and hammering with rotation or hammering only suits multiple applications. Torque limiting clutch is designed to minimize gear damage by automatically disengaging gears if bit binds. The 40 bit angle settings allow bit to be set at different positions based on the application requirement. Extended life brushes are longer means more work between service intervals and minimal downtime. Motor advantage engineered with field core interlocking steel laminations, dual ball bearing armature and more copper commutator bars, increases energy transfer efficiency for more power and longer tool life. The variable speed trigger allows user to match the speed to the application. This hammer is perfect for masons, remodelers, electricians, maintenance crews and general contractors. It includes side handle, depth gauge and tool case.

California Proposition 65 Warning.
View Warning Label

Features

Torque limiting clutch engineered to prevent gear damage

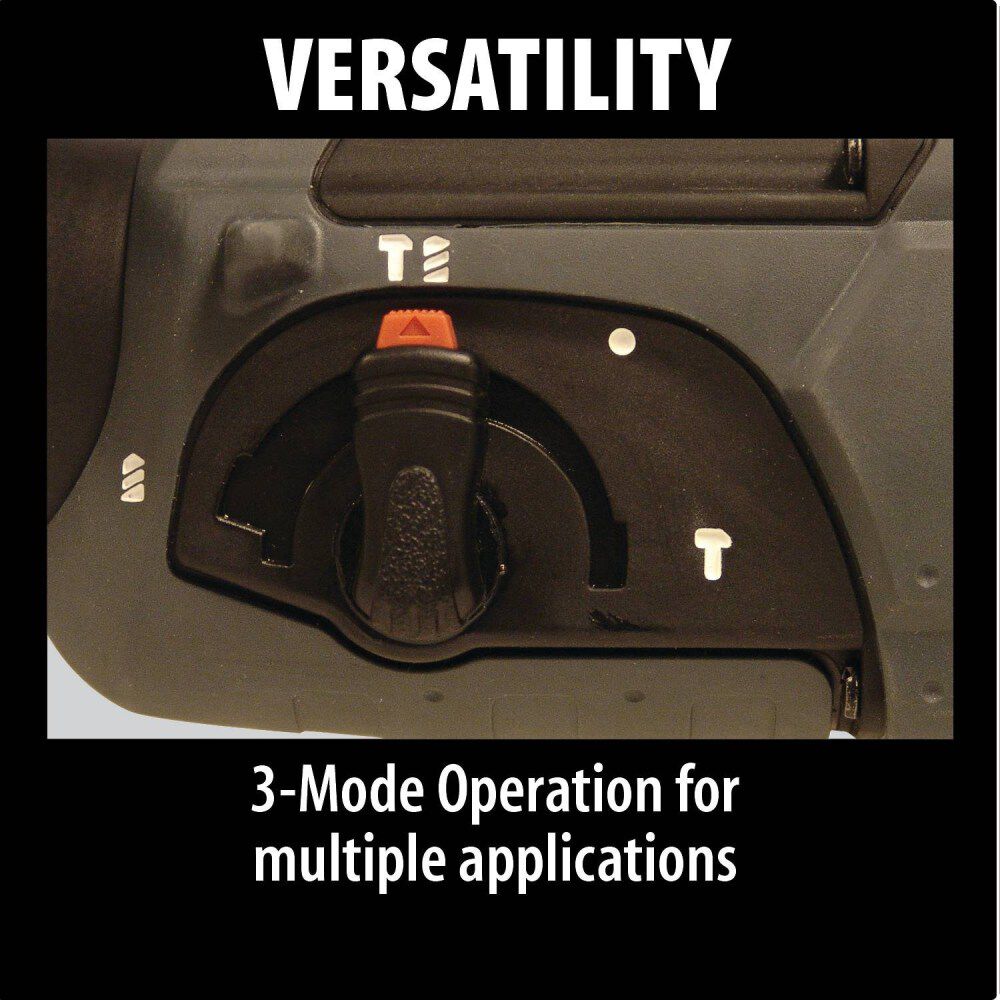

Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts
One touch sliding chuck for quick bit changes
No hammering when idling function extends tool life
Variable speed trigger enables user to match the speed to the application for greater versatility
Ergonomic "D-shaped" handle with rubberized soft grip for increased comfort
Recessed lock-on button for continuous use
40 bit angle settings allow the bit to be set at different positions for operating convenience
Extended life brushes are longer for more work between service intervals and less downtime
Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
Makita Motor Advantage engineered with field core interlocking steel laminations, dual ball bearing armature and more copper commutator bars, increasing energy transfer efficiency for more power and longer tool life

Specifications

Brand Name
Makita
Amperage (A)
7.000000
Assembled Weight (lbs)
6.200000
California Proposition 65 Warning Required
Yes
Capacity
2 1/8 In Core Bit
Chuck Design
Keyless
Chuck Size
SDS-plus
Color
Teal
Country of Origin
China
CSA Certified
No
Electronic Speed Control
Yes
ETL Listed
No
Handle Type
D
Height (in)
13.430000
Length
8 ft

MFG Part # (OEM)
HR2475

Material
Reinforced composite
Maximum RPM
1100.000000
Net Tool Weight (lbs)
6.600000
Package Contents
Side Handle (158057-6); Depth Gauge (324219-0); Tool Case (824695-3)

Product Condition
New

Reversible
Yes
Side Handle
Yes
Thin Wall Core Bit Capacity
Yes
UL Listed
Yes

UPC
088381603508

Variable Speed
Yes
Voltage
120.0
Warranty Type
1 Year Limited
Weight (lbs)
11.9
