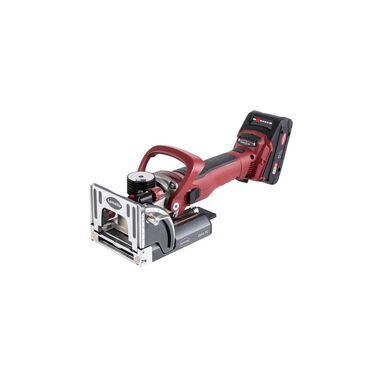

Lamello Zeta P2 Cordless Biscuit Joiner Kit

Item No. SKU# 101801DS
4.3 out of 5 Customer Rating
Lamello Zeta P2 Cordless Biscuit Joiner Kit, large image number 0
Lamello Zeta P2 Cordless Biscuit Joiner Kit, large image number 1
Lamello Zeta P2 Cordless Biscuit Joiner Kit, small
Lamello Zeta P2 Cordless Biscuit Joiner Kit, small
  • In Stock For Store Pick Up
$2,200.00
Delivery to -
43215
- Est. Arrival Sun May 12 - Sun May 19 Edit location
Acme Tools Guarantee
Lamello Zeta P2 Cordless Biscuit Joiner Kit
$2,200.00
Qty
Secure Checkout

Description

Lamello Zeta P2 Cordless Biscuit Joiner Kit

New biscuit joiner with height-adjustable cutter. From the inventor of the tried-and-tested original biscuit system. With fixed, self-clamping and detachable connecting fittings, Lamello products represent the most complete, versatile and innovative wood joining system available. The cordless Zeta P2 is the profile biscuit joiner for even faster joints, suitable for use with P-System connectors. It is used to create the form-locking P-System groove within seconds, and is even more flexible to use thanks to its battery drive. The integrated vertical mechanical drive is automatically triggered at the maximum cutting depth and performs a lateral cutter movement for the P-System groove. Connectors with various functions and different sizes can now be inserted into the form-locking P-System groove without the need for any tools. The ZETA P2 also comes with a range of accessories that make it incredibly versatile. The included guide system allows for precise, repeatable cuts, and the adjustable fence makes it easy to cut slots in any position. Plus, the tool-free depth adjustment lets you quickly and easily set the depth of your cuts.

California Proposition 65 Warning.

Features

Wood elements - Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter
Multifunctional stop square - In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm
P-System vertical mechanical drive - The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement
P-System depth adjuster - Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18
P-System anchorage - Tool-free anchoring of connectors, without adhesive or screws
Swiveling front stop with fixed pivot point - Join reliably with the cutter which is in the exact center between to two application surfaces
Contains: Cordless Zeta P2, (2) 18V LiHD 4.0 Ah batteries, plug type C Euro ASC 55 charger, diamond tipped P-system cutter, stop square, 36 mm suction stub, angle disc, 2 & 4 mm spacer, tool set, P-system drill jig including drill, dust bag
Cutting depth max: 20 mm, Teeth: Z3 (Diamond-cutter), Speed (U/min): 9000 minˉ¹, Power: 1050 W

Specifications

Brand Name
Lamello
Assembled Weight (lbs)
8
Country of Origin
Switzerland
MFG Part # (OEM)
101801DS
Package Contents
Cordless Zeta P2, (2) Batteries, Charger, Diamond Tipped P-System Cutter, Stop Square, 36 mm Suction Stub, Angle Disc, 2 & 4 mm Spacer, Tool set, P-System Drill Jig Including Drill, Dust Bag
Package Depth
24
Package Height
24
Package Weight
12
Product Condition
New
UPC
400018000021
Voltage
18
