Lamello Zeta P2 Corded Biscuit Joiner with Carbide Tipped Cutter & Drill Jig
$1,700.00
Qty
Secure Checkout

Description

Lamello Zeta P2 Corded Biscuit Joiner with Carbide Tipped Cutter & Drill Jig

The Zeta P2 is the biscuit joiner for P-System connectors and is used to create the form locking P-System groove within seconds. The integrated vertical mechanical drive is automatically triggered at the maximum cutting depth and performs a lateral cutter movement for the P-System groove. Connectors with various functions and different sizes can now be inserted into the form-locking P-System groove. The insertion into the groove is quick and without tools.

California Proposition 65 Warning.

Features

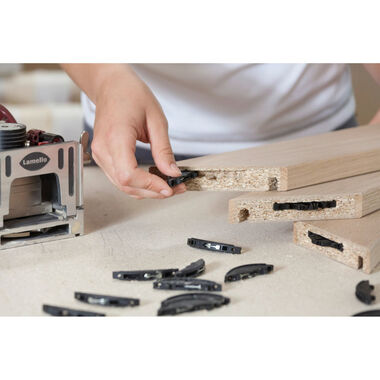

For the fast, form-locking anchorage of all P-System connectors in all angles
The automatic vertical movement creates a profile groove enabling insertion of the connectors by hand
Fast, easy and precise working with the well-known Lamello system
P-System vertical mechanical drive: The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement

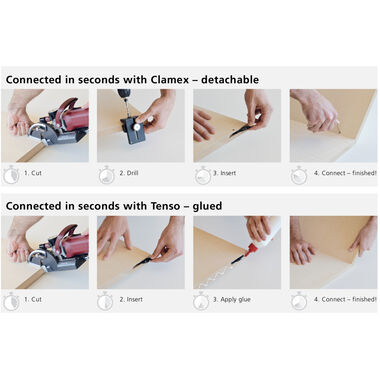

P-System anchorage: Tool-free anchoring of connectors, without adhesive or screws
P-System depth adjuster: Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18

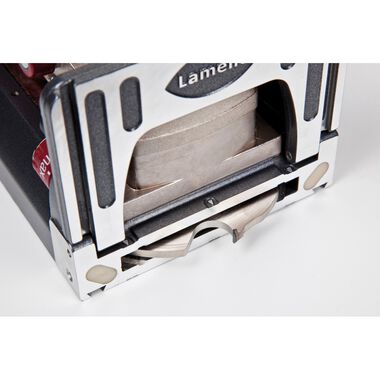

Wood elements: Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter

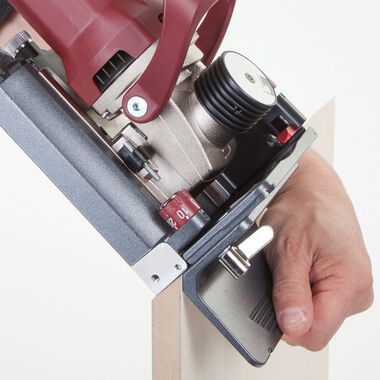

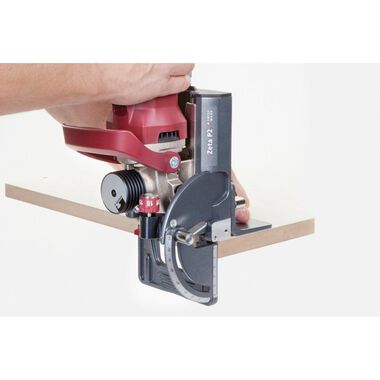

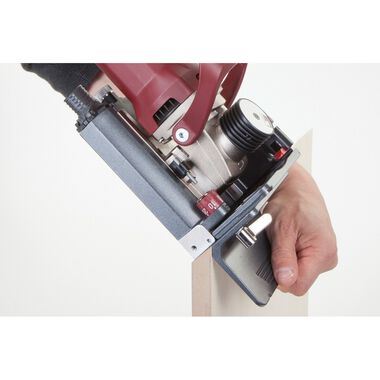

Swiveling front stop with fixed pivot point: Join reliably with the cutter which is in the exact center between to two application surfaces
Multifunctional stop square: In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm

Specifications

Brand Name
Lamello
Assembled Weight (lbs)
2
Country of Origin
Switzerland
MFG Part # (OEM)
101402S
Package Contents
Zeta P2, Carbide Tipped P-System Cutter, Stop Square, Suction Stubs 23 + 36 mm, Angle Disc, 2 & 4 mm Spacer, Tool Set, P-System Drill Jig Including Drill
Package Depth
12
Package Height
12
Package Weight
2
Product Condition
New
UPC
400014001121
Voltage
230
