Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw

Name: Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw
Brand: Laguna Tools
SKU: MPSP12-10-0135
Price: 15299.00 USD
Availability: InStock

SKU# MPSP12-10-0135

Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw, large image number 0

Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw, large image number 1

Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw, large image number 2

Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw, large image number 3

Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw, large image number 4

No Air Shipments

Item requires special handling, additional charges may apply

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw

Laguna Tools

Please follow our Community Guidelines and be kind!

Description

Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw

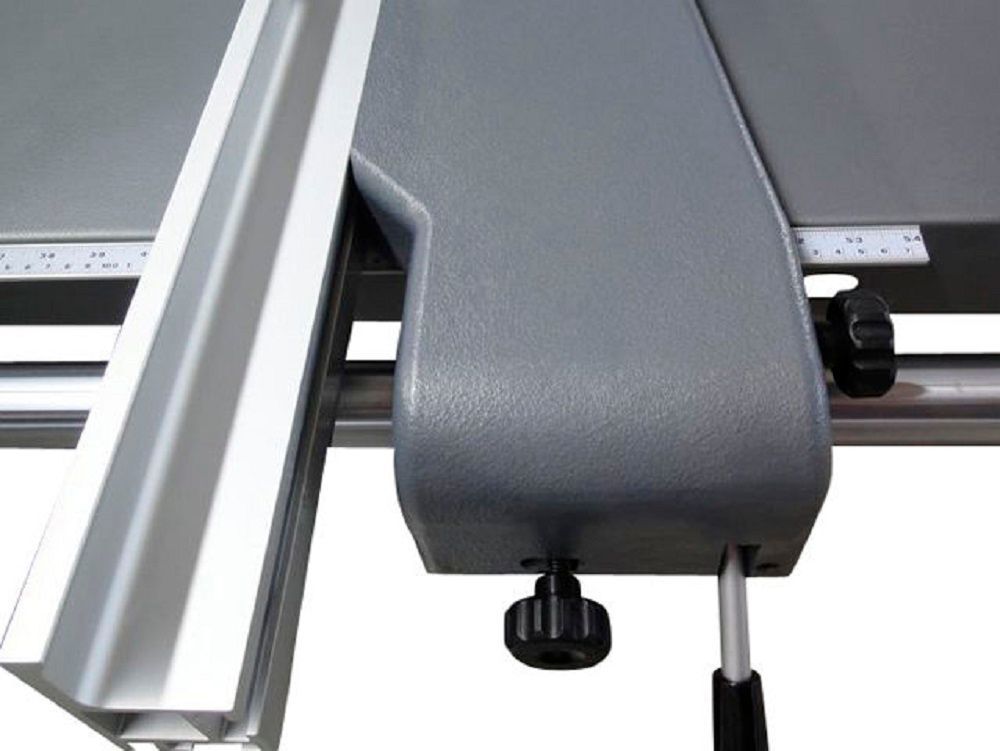

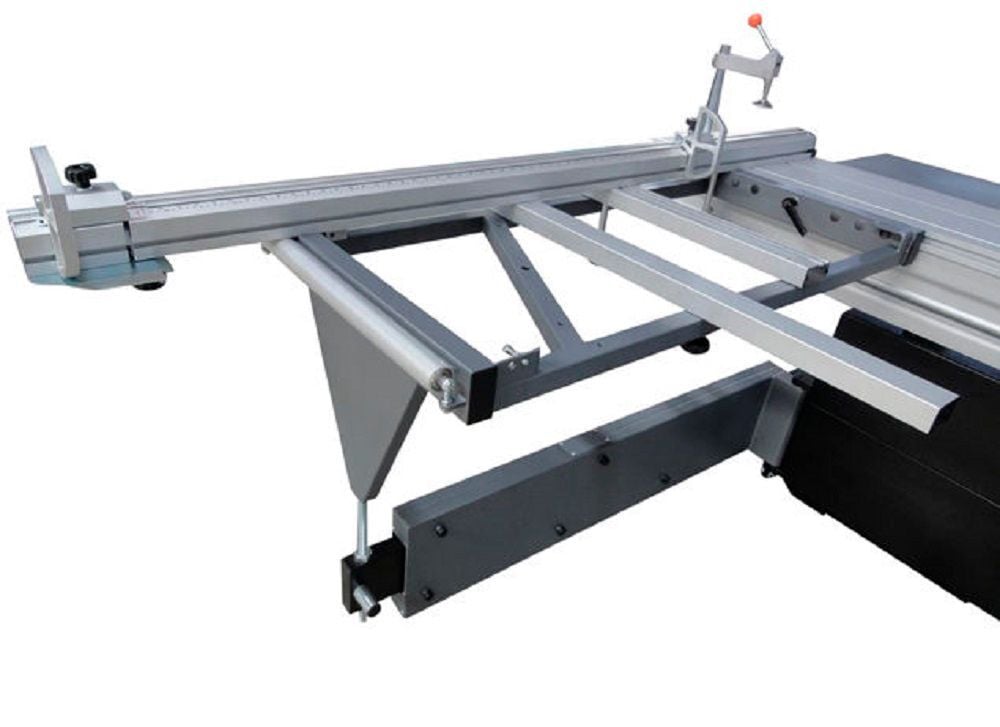

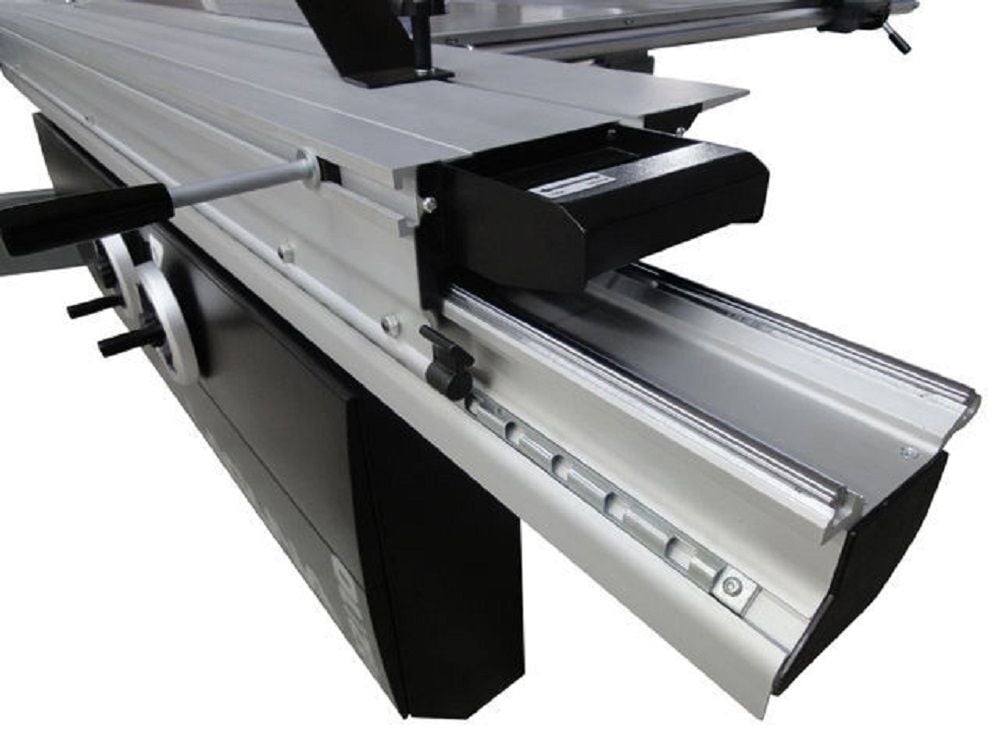

The P12|10 was designed to clear 10 ft. Material using a 12 In. blade. The 126 In. sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European-style 51 In. rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The overhead guard comes standard with quick-change 90 deg and 45 deg guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5 In.). The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 108 In.), 45 deg miter and is ergonomically designed to make it easier to read the tape. Inside the p12|10 you will find the saw unit is moving on micro-polished solid steel rods for ultimate precision. The heavy duty motor is equipped with soft start to minimize initial amperage draw. The p12|10 comes standard with hold-down clamp, rip shoe and push handle.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Features

Automatic

T-handle through cast top scoring adjustment

Overhead guard with swing-away

Crosscut fence 2 x flip-stops

Crosscut Fence-90 deg and 45 deg quick position design for a precise crosscutting operation

Double roller carriage with steel bar guidance for smoothly cutting, precise sliding guides the workpiece through the blade

Specifications

Brand Name

Laguna Tools

Amperage (A)

0.0

Assembled Depth (in)

Assembled Weight (lbs)

1815

Assembled Width (in)

Bench or Stationary

Stationary

California Proposition 65 Warning Required

Yes

Country of Origin

China

Diameter

16 in

Dust Port

Yes

Dust Port Outside Diameter (in)

4.72 Saw, 3.93 Guard

Height (in)

Horsepower (hp)

7.5

MFG Part # (OEM)

MPSP12-10-0135

Material

Steel

Maximum Dado Diameter (In)

Package Contents

Rip Fence Micro Adjust, Push Handle, Rip Shoe, Hold Down Clamp, 32 In. x 12 In. Steel Extension Table,Fence

Phase

Product Condition

New

Restrictions

CA Prop 65

Table Length (in)

126

Table Width (in)

14.88

UPC

195444075643

Warranty Type

2 Years

Weight (lbs)

Laguna Tools P12|10 7.5HP 220V Automatic Horizontal Table/Panel Saw
