Laguna Tools JX|8 QUADTEC: I Jointer 1.75HP 110V 1PH

Item No. SKU# MJ8X72E-0130
5 out of 5 Customer Rating

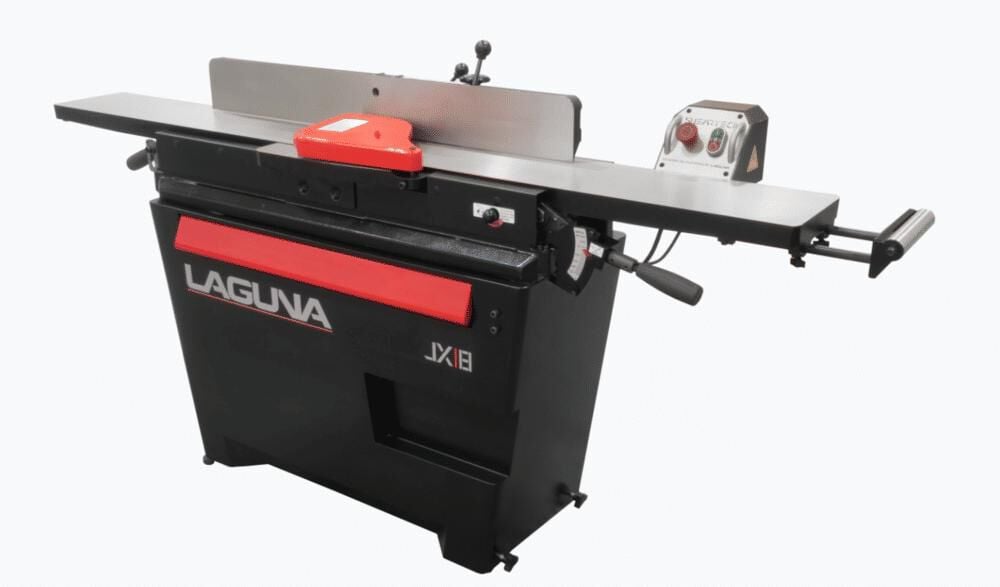

Laguna Tools JX|8 QUADTEC: I Jointer 1.75HP 110V 1PH, large image number 0

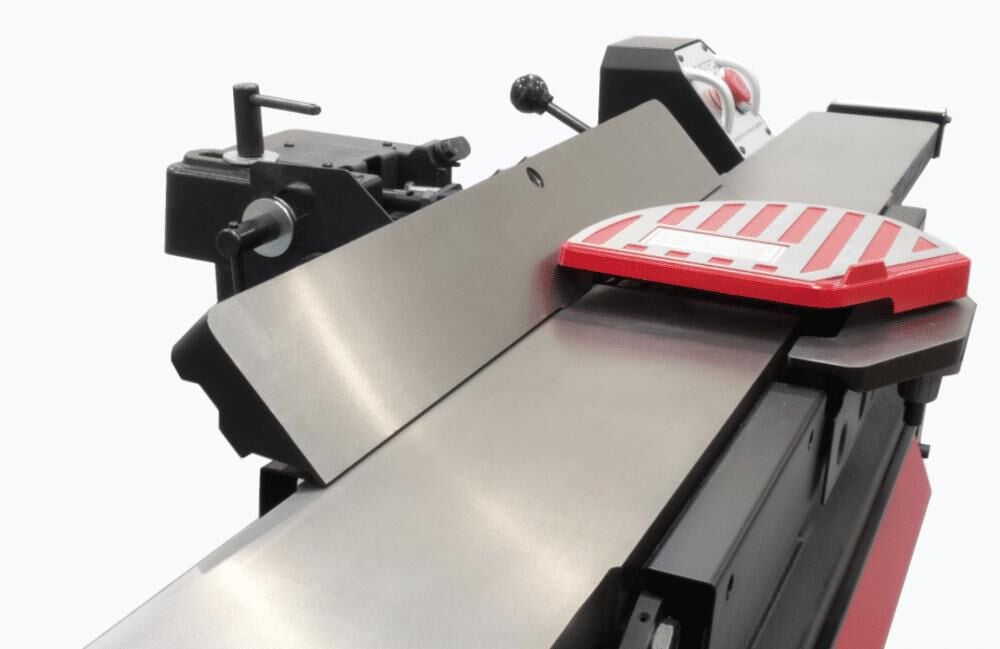

Laguna Tools JX|8 QUADTEC: I Jointer 1.75HP 110V 1PH, large image number 1
Laguna Tools JX|8 QUADTEC: I Jointer 1.75HP 110V 1PH, small
Laguna Tools JX|8 QUADTEC: I Jointer 1.75HP 110V 1PH, small
  • In Stock (Ships in 3-5 business days)
$2,599.00
Delivery to -
43215
- Est. Arrival Fri May 3 - Sat May 4 Edit location
  Free Freight  Shipping  (Truck freight shipping to lower 48)
Item requires special handling, additional charges may apply
Acme Tools Guarantee

Lift Gate Service (freight lowered to ground)
Laguna Tools JX|8 QUADTEC: I Jointer 1.75HP 110V 1PH
$2,599.00
Qty
Secure Checkout

Description

Laguna Tools JX|8 QUADTEC: I Jointer 1.75HP 110V 1PH

The Laguna JX|8 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 has adjustable table depths and in-feed support rollers for longer materials being used. This JX Jointer also has an emergency knee-stop that allows the operator to stop the machine quickly at any position without having to let go of their work piece which allows operating this machine to have an extra safety feature. The JX-8 also comes with an all new QuadTec I cutterhead which uses 4-sided carbide insert knives that are quieter and more durable than straight HSS knives.

California Proposition 65 Warning.

Features

Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
The all-new QuadTec I cuttherhead comes as standard equipment on the new JX-8. The QuadTec I produces an amazing surface finish on all woods including difficult hardwoods. The QuadTec I uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
In-feed Support Roller - Infeed tables are now fitted with pull out support roller to help support longer materials
Cast-Iron Tables and Fence

Specifications

Brand Name
Laguna Tools
Amperage (A)
15
Assembled Depth (in)
75.5
Assembled Weight (lbs)
380
Assembled Width (in)
26.5
Blade Width (in)
8
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
Height (in)
31
Horsepower (hp)
1.75
MFG Part # (OEM)
MJ8X72E-0130
Package Contents
1 JX|8 QUADTEC: I Jointer
Package Depth
76
Package Height
41
Package Weight
495
Phase
1
Product Condition
New
Table Length (in)
72
UL Listed
No
UPC
195444047732
Voltage
110
