Kubota 17' 1in Trailed Tedder

Name: Kubota 17' 1in Trailed Tedder
Brand: Kubota
SKU: TE4052T
Price: 14500.00 USD
Availability: InStock

SKU# TE4052T

Kubota 17' 1in Trailed Tedder, large image number 0

Kubota 17' 1in Trailed Tedder, large image number 1

Flatbed Trucking Rates Apply

Calculated Delivery Rate at Checkout

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Need more information ?

Product Details

Kubota 17' 1in Trailed Tedder

Kubota

Please follow our Community Guidelines and be kind!

Description

Kubota 17' 1in Trailed Tedder

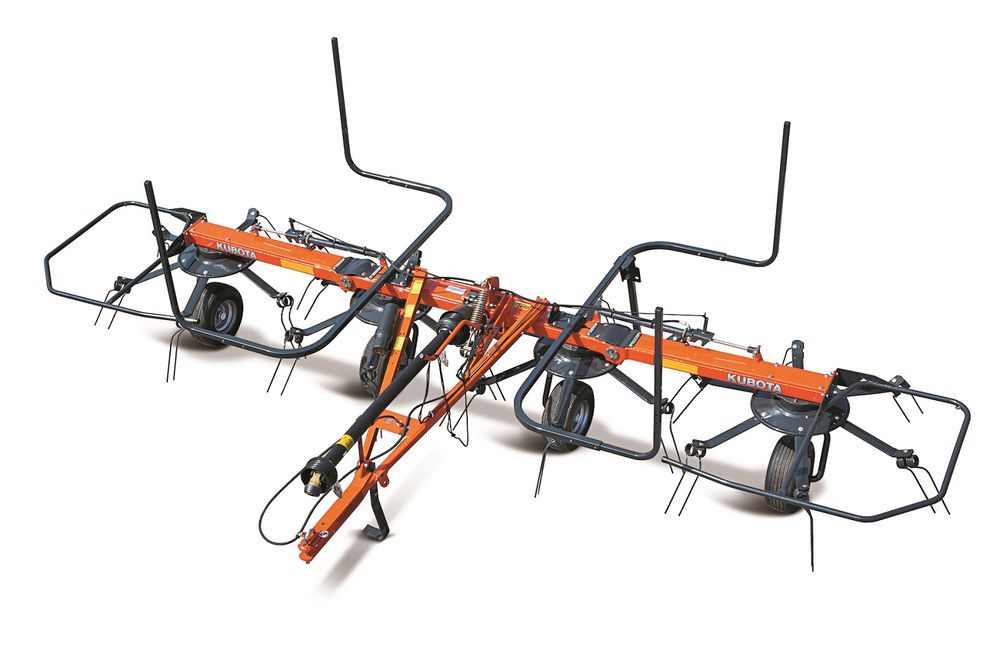

Kubota's TE4052T pull-type rotary tedder features a 17'1" working width and a strong, one-piece metal chassis for outstanding longevity. The four rotors, in combination with a wide overlap, ensure smooth forage pickup and even distribution.

California Proposition 65 Warning.

Manuals

Specification - PDF

Features

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

Pull-type design with low weight and power requirements. The low weight of 904 lbs. is ideal for applications with small tractors, or in hilly terrain.

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.
