Kubota 13 Ft. 9 In. Single Rotor Hay Rake

Name: Kubota 13 Ft. 9 In. Single Rotor Hay Rake
Brand: Kubota
SKU: RA1042T
Price: 15300.00 USD
Availability: InStock

SKU# RA1042T

Kubota 13 Ft. 9 In. Single Rotor Hay Rake, large image number 0

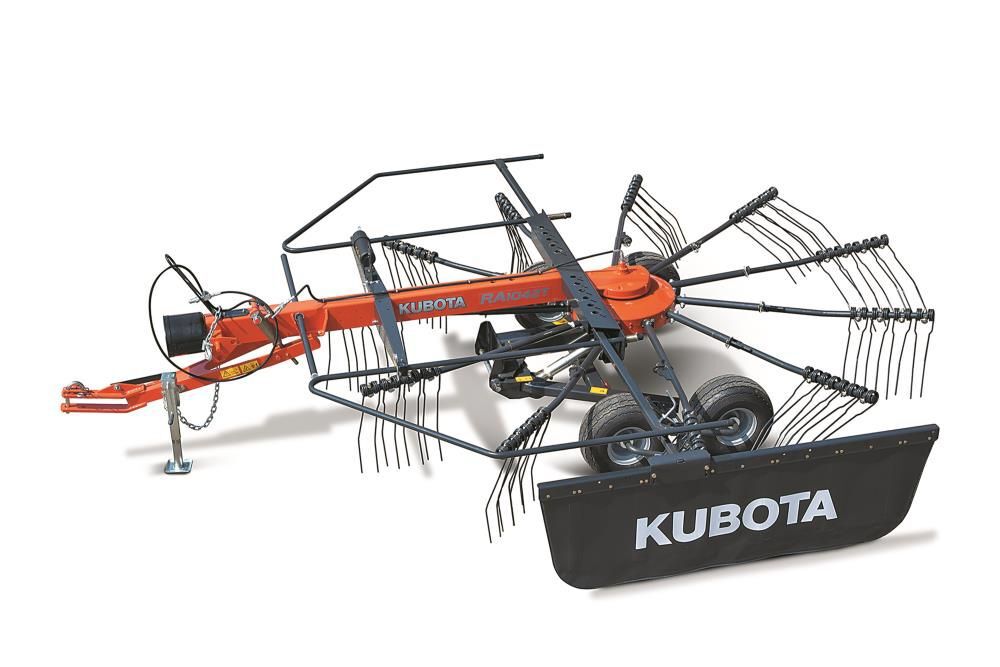

Kubota 13 Ft. 9 In. Single Rotor Hay Rake, large image number 1

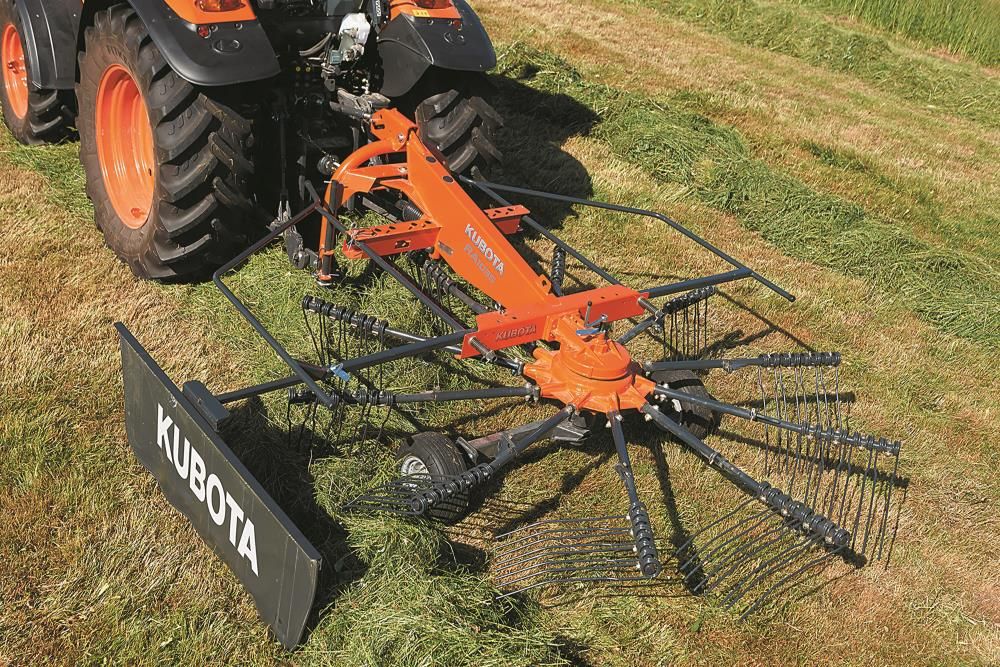

Kubota 13 Ft. 9 In. Single Rotor Hay Rake, large image number 2

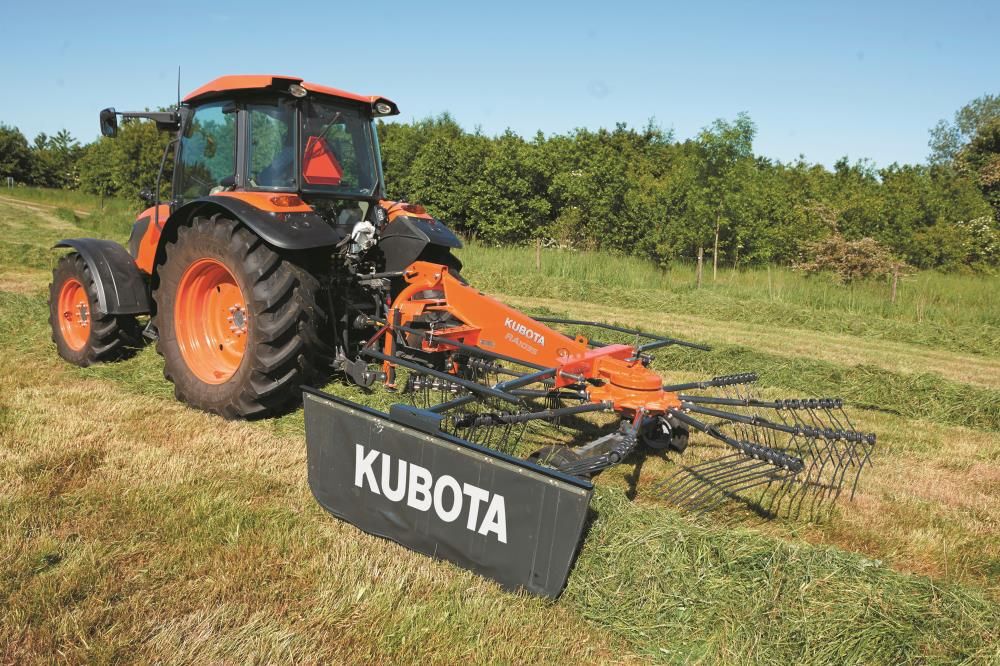

Kubota 13 Ft. 9 In. Single Rotor Hay Rake, large image number 3

Made In USA

Flatbed Trucking Rates Apply

Calculated Delivery Rate at Checkout

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Need more information ?

Product Details

Kubota 13 Ft. 9 In. Single Rotor Hay Rake

Kubota

Please follow our Community Guidelines and be kind!

Description

Kubota 13 Ft. 9 In. Single Rotor Hay Rake

Featuring curved tine arms to handle high capacity crops, these rakes offer cleaner raking performance and optimized swath formation while maintaining the same strength and durability of the larger models.

California Proposition 65 Warning.

Manuals

Specification - PDF

Features

The Kubota RA1035 width can be reduced to 5'9" for transport and storage by placing the tine arms on the carrier frame - the Kubota RA1042T can be easily converted to 6’7” for transport and entering into smaller fields or narrow gates

Up to eleven tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance in all types and volumes of crops

All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation

This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath

The Kubota rakes are equipped for maximum raking performance - the FarmLine rakes all feature 9mm wire diameter tines for outstanding durability

The Kubota RA1035 and RA1042T single rotary rakes are designed for low power requirements, while still delivering considerable working width of 9’2” & 11'6" with swath and 10’2” on the RA1042T & 13’9” including swath, respectively

With a pivoting three point linkage machine (RA1035) as well as a trailed version (RA1042T), there is a model to meet any field or crop needs

The rotor is grease lubricated within a fully enclosed housing - the maintenance-free cam track, cam followers, as well as the bearings of the rotor star axles, are permanently running in an oil bath

Kubota's FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance - all rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions

Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath
