Kubota 13 Ft. 1 In. Disc Mower Conditioner - Roller

Name: Kubota 13 Ft. 1 In. Disc Mower Conditioner - Roller
Brand: Kubota
SKU: DMC8540R
Price: 59560.00 USD
Availability: InStock

SKU# DMC8540R

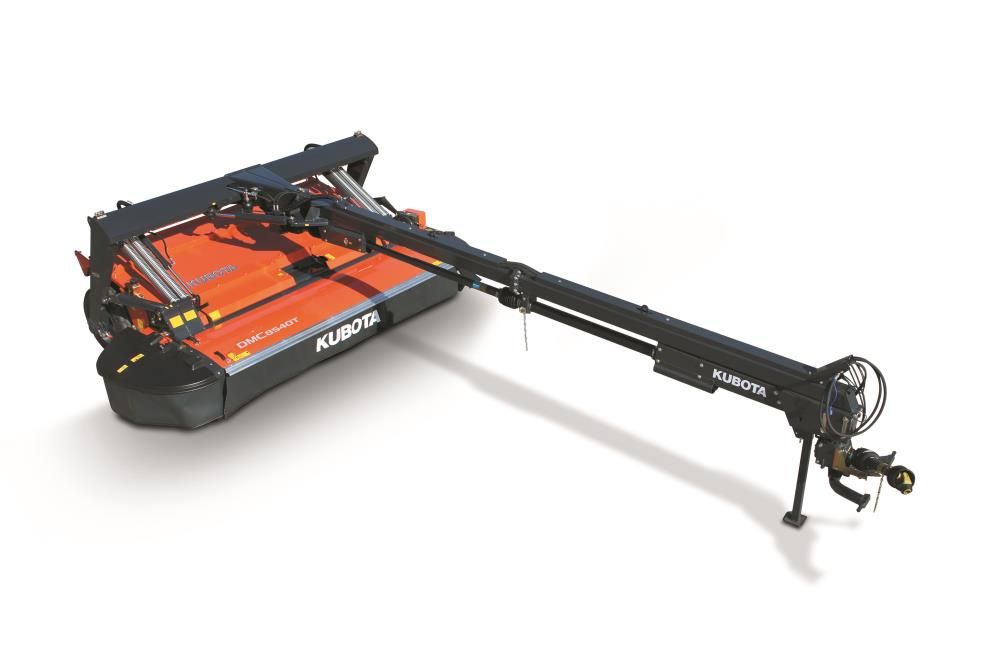

Kubota 13 Ft. 1 In. Disc Mower Conditioner - Roller, large image number 0

Kubota 13 Ft. 1 In. Disc Mower Conditioner - Roller, large image number 1

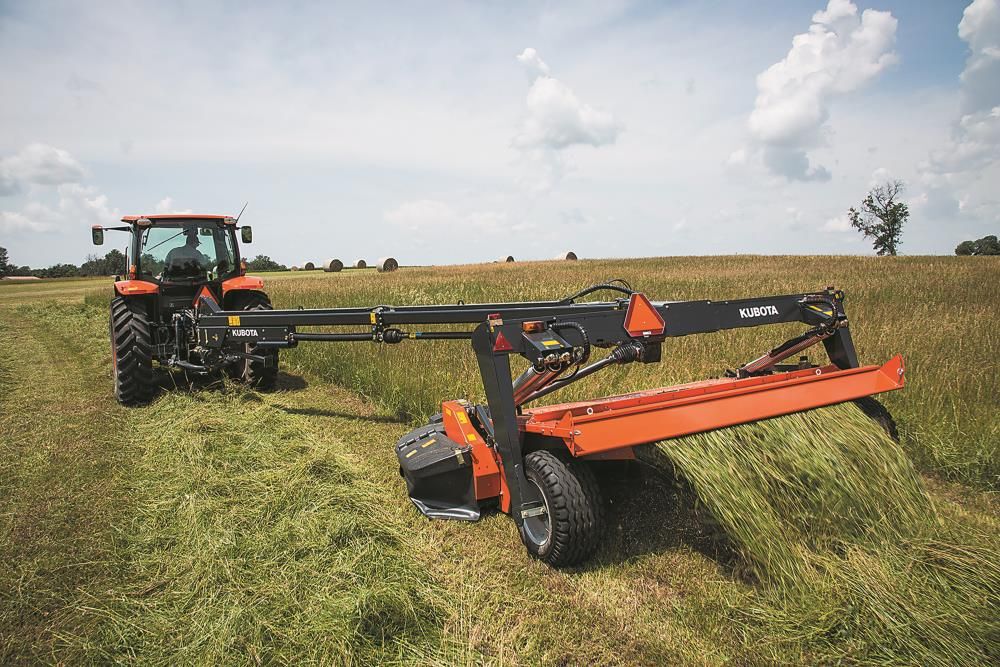

Kubota 13 Ft. 1 In. Disc Mower Conditioner - Roller, large image number 2

Made In USA

Flatbed Trucking Rates Apply

Calculated Delivery Rate at Checkout

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Need more information ?

Product Details

Kubota 13 Ft. 1 In. Disc Mower Conditioner - Roller

Kubota

Please follow our Community Guidelines and be kind!

Description

Kubota 13 Ft. 1 In. Disc Mower Conditioner - Roller

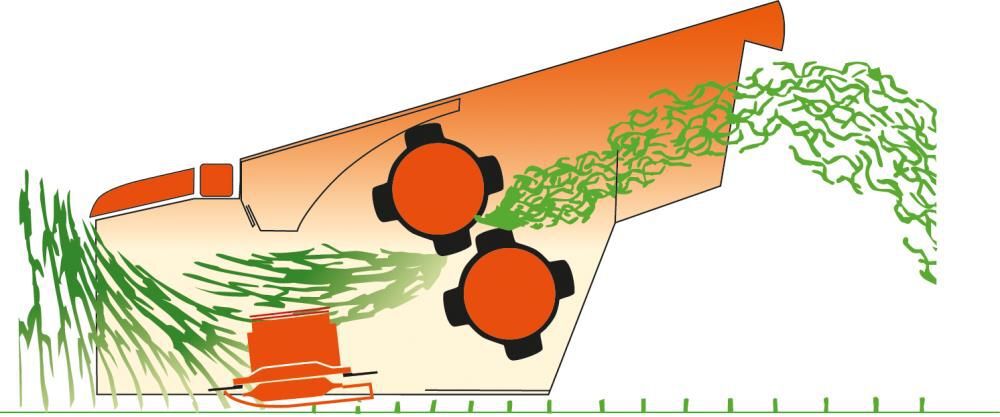

The DMC8500 series center pivot disc mower conditioners are available in two wide cutting widths and feature a fully welded in your choice of SemiSwing or Chevron roller conditioners. They feature a durable suspension system designed to reliably produce consistent windrows and evenly conditioned crops in a wide variety of conditions.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Specification - PDF

Features

The complete mowing section, including the conditioner, is suspended independently from the main chassis by either two or four long adjustable suspension springs, allowing it to follow the field contour

DMC8500 series models have a lifting height of 1'6" to ensure excellent ground clearance for transport and during headland turning

Mowers can be fitted with the express system for quick and easy changing of knives - simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one

13 ft. 1 in. working width

The DMC8500 series offers a secure and convenient transport solution, including an integrated lighting kit for excellent road visibility - the transport width for DMC8536T and DMC8536R is 11'2" and the transport width for DMC8540T and DMC8540R is 12'6"

All models can be fitted with an optional easy-to-use wide spreading kit - this enables crop to be cut and spread in one operation, saving both time and resources

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability

The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar

With three blades per disc, Kubota mowers are constantly cutting - this means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble

A simple crank adjusts the whole cutterbar assembly up or down to a desired stubble height. Additional skids are available to increase cutting height
