Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG

SKU# 12 12 14
5 out of 5 Customer Rating
Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG, large image number 0
Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG, large image number 1
Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG, large image number 2
Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG, large image number 3
Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG, large image number 4
Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG, large image number 5
Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG, large image number 6
Previous Next
+ 2 more
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Qty
Secure Checkout
Affirm
Pay as low as $19/mo.
with Affirm

Product Details

Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG
Knipex

Please follow our Community Guidelines and be kind!

Description

Knipex Wire Stripper Precision Insulation 195mm 16-26 AWG

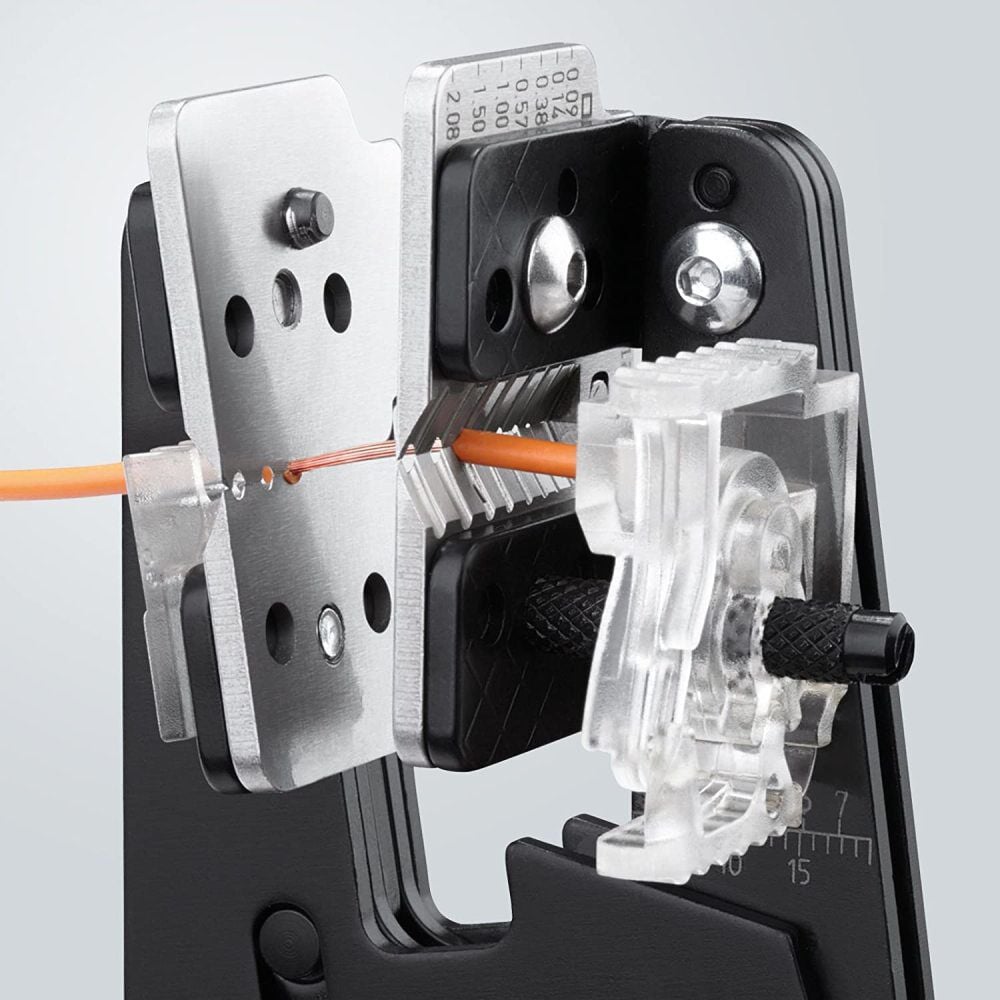

The Knipex 12 12 14 wire strippers have been specially developed for very tough and hard insulation materials which need to almost be cut through entirely so that they can be pulled off. Two pairs of blades cut into the entire circumference of the cable insulation. The blades have been shaped and ground so that the cut gets very close to the conductor. After scoring, one of the pairs of blades remains still and secures the insulation that has been cut into. The other pair of blades strips the insulation from the cable. The precision wire strippers have a length stop for consistent wire stripping results, which can be easily pushed together with your fingers to slide and adjust it. This enables wire stripping results to be achieved even in the case of demanding insulation materials, meeting high requirements in terms of consistent quality - also for the US market. The work saved by these wire strippers is immense. After inserting the cable, the entire wire stripping process takes place as if by itself with one press of the hand. Even insulation materials that are difficult to process are reliably removed with precise and, thanks to the length stop, accurate repeat measurements: an advantage for fitters who use cable corresponding to the American specification AWG (16, 18, 20, 22, 24, 26) in the areas of energy technology, plant and automotive engineering. They offer good everyday benefits, even with non-everyday insulation materials that are difficult to strip.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Especially for cables in accordance with the American specification (AWG)
Form-fit stripping also of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber; multi-layer too
A second pair of blades holds the remaining insulation reliably in place
Replaceable shaped blade adapted precisely to the respective conductor cross-section
With length stop for constant stripping length during repetitive work
Two pairs of blades cut parallel into the insulation, and remove it with a separating movement
Handles with multi-component grips
Length stop that can be easily adjusted by pressing and sliding for accurately repeated wire stripping
Pliers body: steel

Specifications

Brand Name
Knipex
Assembled Weight (lbs)
0.99
Blade Material
Steel
Blade Type
Adapted
Color
Multiple
Country of Origin
Germany
Cutting Capacity
NA
Electrical Accessory Type
Tool
Handle Material
plastic
Knife / Blade/ Scraper Type
Adapted Blade
Material
Steel
Net Tool Weight (lbs)
0.99
Package Contents
Wire Stripper with Adapted Blades,2 Blades Included

Product Condition
New

Restrictions
CA Prop 65
Size
7.7 in
Warranty Type
Lifetime against Manufacturer's Defects
Weight (lbs)
0.99
