Knipex Wire Rope Cutter Forged 190mm

Name: Knipex Wire Rope Cutter Forged 190mm
Brand: Knipex
SKU: 95 61 190 SBA
Price: 65.57 USD
Availability: InStock

SKU# 95 61 190 SBA

Knipex Wire Rope Cutter Forged 190mm, large image number 0

Knipex Wire Rope Cutter Forged 190mm, large image number 1

Knipex Wire Rope Cutter Forged 190mm, large image number 2

Knipex Wire Rope Cutter Forged 190mm, large image number 3

Knipex Wire Rope Cutter Forged 190mm, large image number 4

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Knipex Wire Rope Cutter Forged 190mm

Knipex

Please follow our Community Guidelines and be kind!

Description

Knipex Wire Rope Cutter Forged 190mm

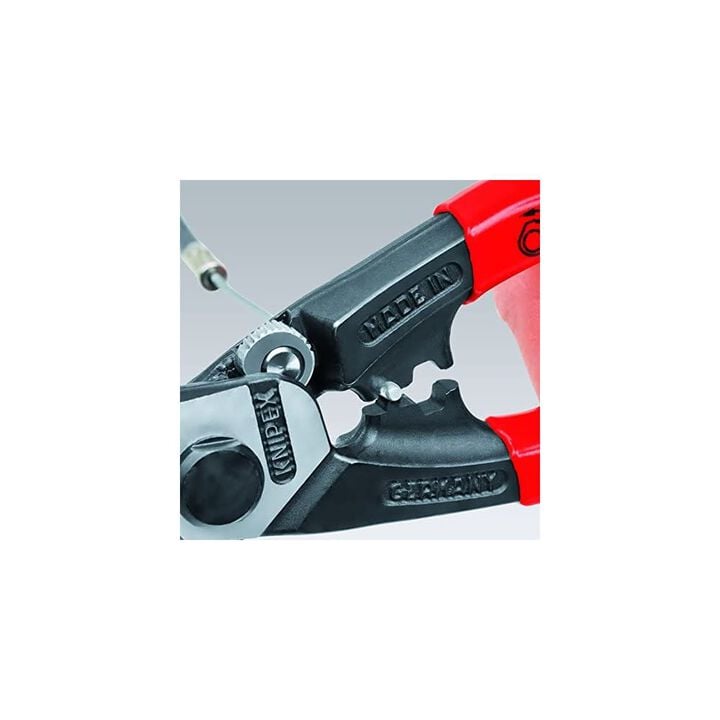

Typical application areas of the Knipex wire rope cutters include the following: the broken clutch cable of the classic car is replicated because no original parts are available. New handbrake cables on truck trailers are produced from cable sold by the meter. These wire rope cutters from Knipex are the ideal tool in these and many other cases. With cutting capacities of upto Ø 7 mm in the case of stranded Cu cable and upto Ø 5 mm with wire rope, they are suitable for all installation work and work in workshops. The space-saving, inset opening spring provides added comfort, saving the user one hand movement during each cutting operation. As soon as manual force is withdrawn, the spring opens the pliers automatically. Those who cut wire rope frequently will quickly learn to value this feature. For transport, the wire rope cutters are secured using the pawl to prevent inadvertent opening. The adjustable bolted joint permits accurate, permanently zero backlash operation. Two valuable additional functions on the Knipex wire rope cutters replace two tools. With the accurately shaped crimping dies for end sleeves and end caps, Bowden cables and Bowden cable sleeves can be directly assembled after cutting. After shortening, end sleeves are pressed on to Bowden cable sleeves to prevent the risk of injuries. The wire rope cutters from Knipex are a cutting tool with special additional functions for assembling Bowden cables and are, for example, suitable for structural steelwork (railings, suspensions etc.), trade fair construction, agriculture, the motor trade, horticulture, apparatus engineering, servicing and repair work. Those who work professionally with tools every day expect a quality that permits simple and safe work.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Neat cutting, precise crimping

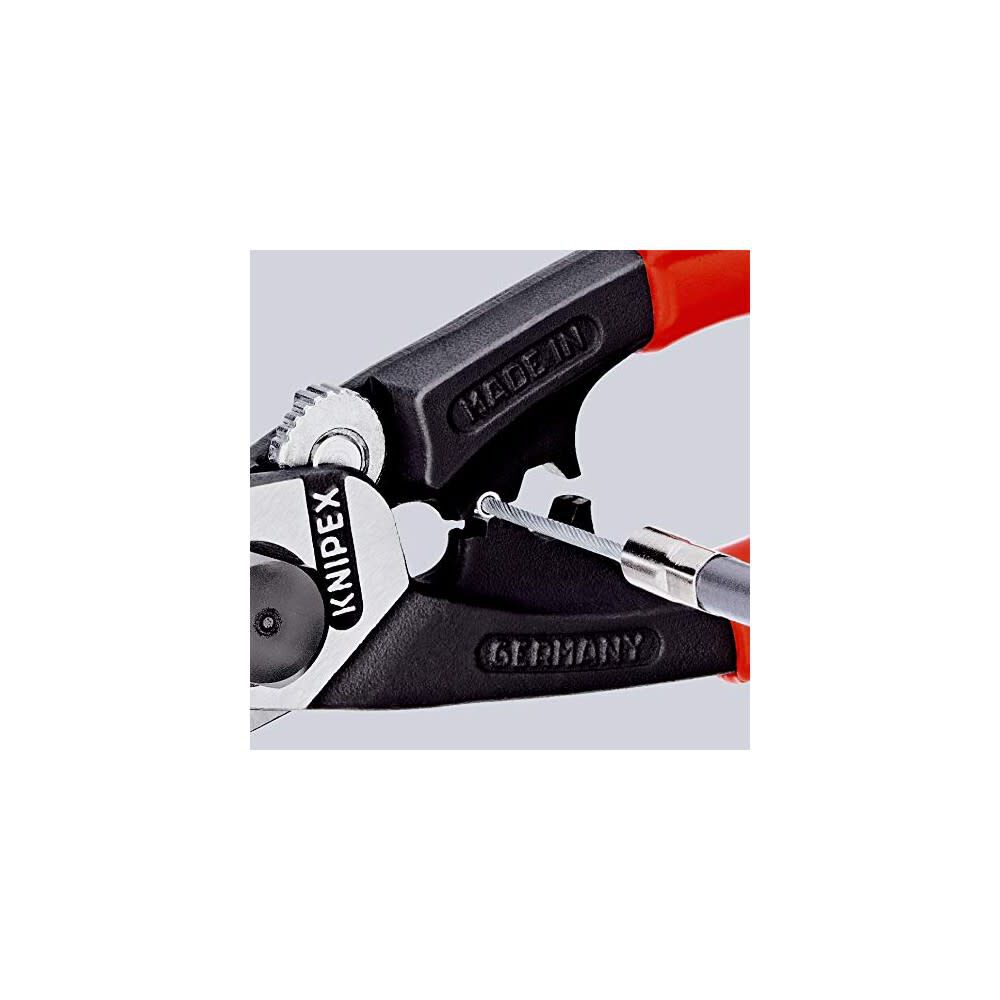

With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

Comfortable work thanks to handy, slim design and internal opening spring

Bolted joint for precise blade guidance, re-adjustable

High leverage for reduced effort

Cutting edge hardness approx. 64 HRC

Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened

Comfortable work due to manageable, slim design and inset opening spring

Screwed joint for accurate blade guidance, adjustable

Energy-saving work due to very high transmission ratio

Specifications

Brand Name

Knipex

Application

For End Caps on Bowden Cable Sheaths & End Ferrules for Traction Cables

Assembled Weight (lbs)

10.8

Blade Length (in)

0.25

Blade Material

Chrome Vanadium

Color

Multiple

Country of Origin

Germany

Cutting Capacity

10 mm2 Multiple-Stranded Copper Cable, 7 mm Multiple-Stranded Copper Cable Diameter, 6 mm2 Fine-Stranded Copper Cable Diameter, 5 mm Wire Rope Diameter, 4 mm Medium Hard Wire Diameter, 2.5 mm Piano Wire Diameter, 4 mm Iron Diameter

Electrical Accessory Type

Tool

Handle Material

plastic

Insulated
