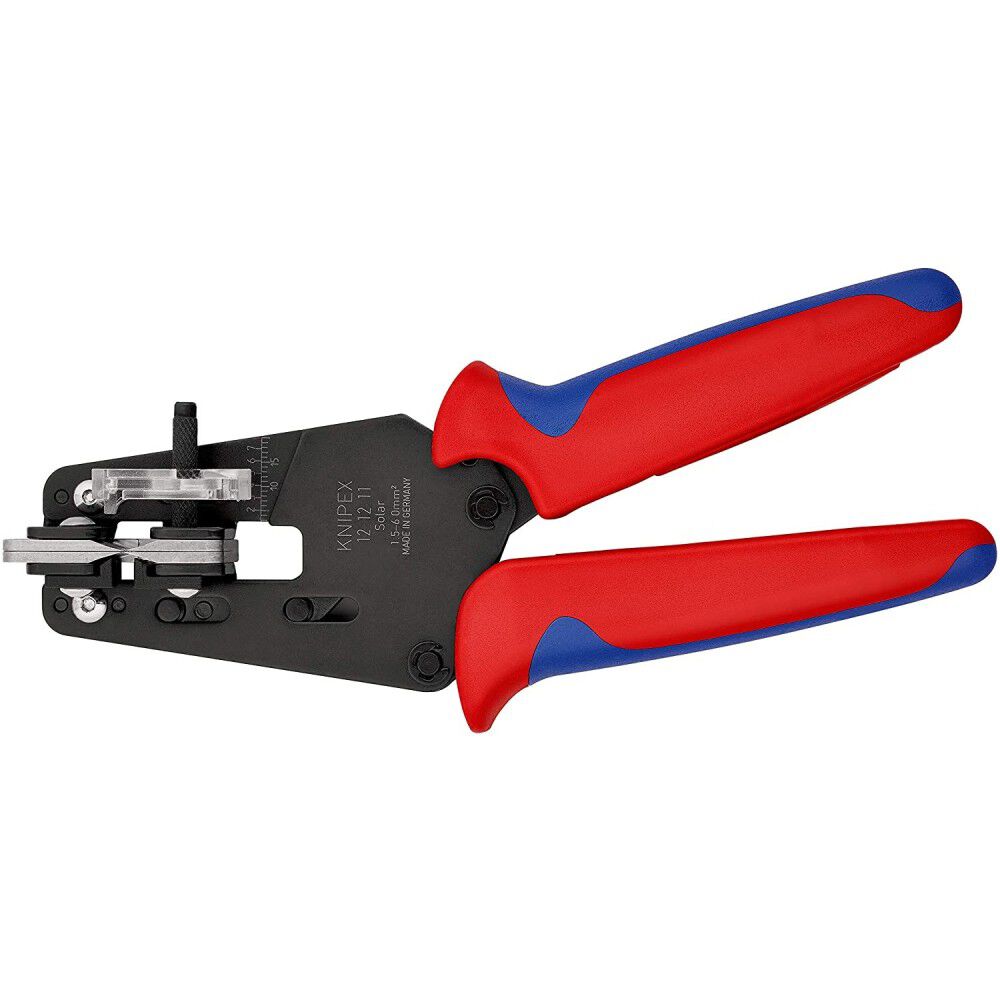

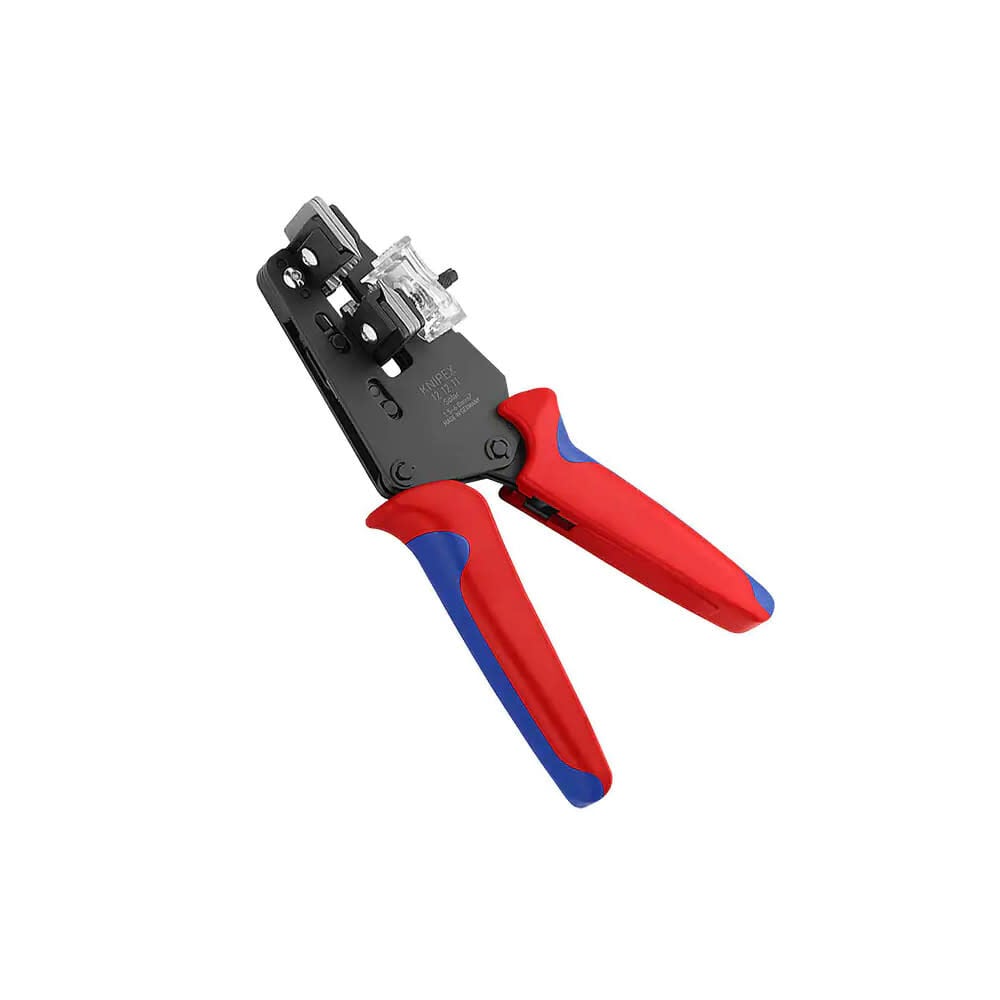

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG

Name: Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG
Brand: Knipex
SKU: 12 12 11
Price: 203.99 USD
Availability: InStock

SKU# 12 12 11

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG, large image number 0

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG, large image number 1

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG, large image number 2

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG, large image number 3

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG, large image number 4

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG, large image number 5

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG

Knipex

Please follow our Community Guidelines and be kind!

Description

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG

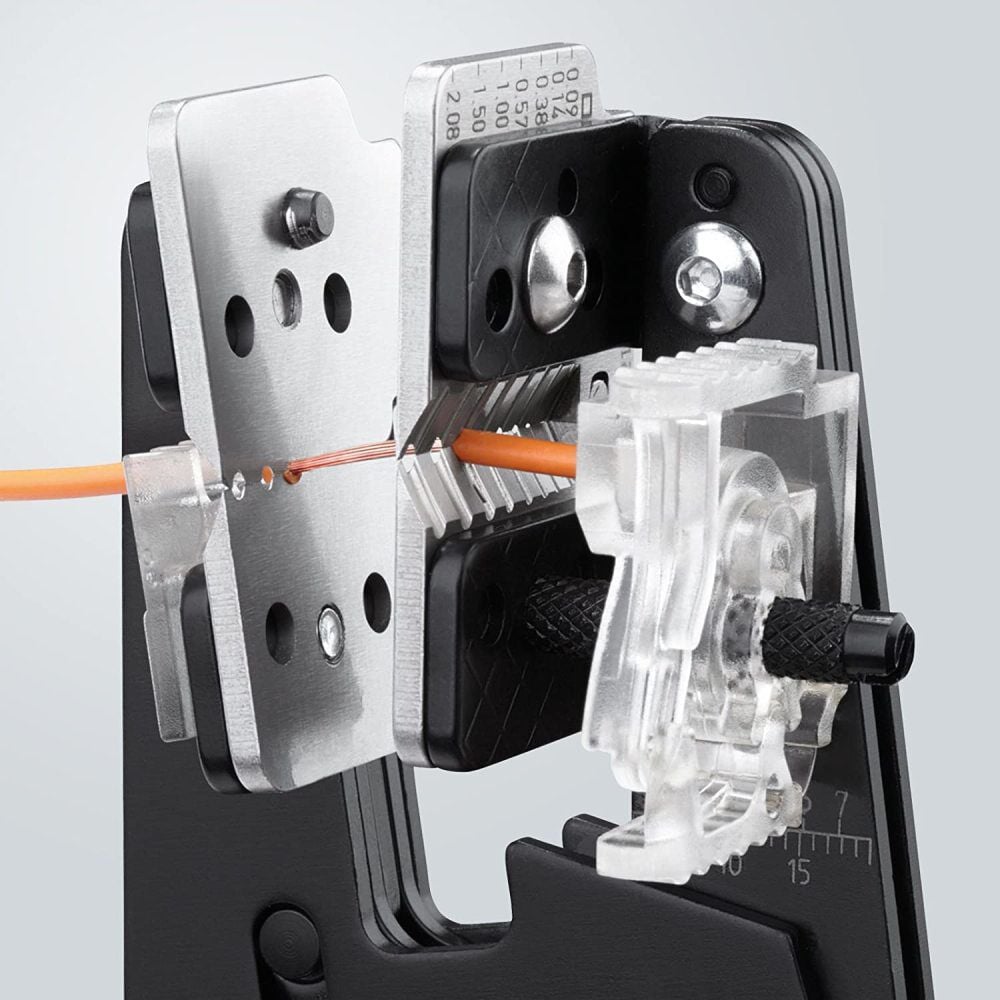

The Knipex 12 12 11 wire strippers have been specially developed for very tough and hard insulation materials on solar cables which need to almost be cut through entirely so that they can be pulled off. Two pairs of blades cut into the entire circumference of the cable insulation. The blades have been shaped and ground so that the cut gets very close to the conductor. After scoring, one of the pairs of blades remains still and secures the insulation that has been cut into. The other pair of blades strips the insulation from the cable. The precision wire strippers have a length stop for consistent wire stripping results, which can be easily pushed together with your fingers to slide and adjust it. This enables wire stripping results to be achieved even in the case of demanding insulation materials, meeting high requirements in terms of consistent quality. The work saved by these wire strippers is immense. After inserting the solar cable, the entire wire stripping process takes place as if by itself with one press of the hand. Even insulation materials that are difficult to process are reliably removed with precise and, thanks to the length stop, accurate repeat measurements: a time and quality gain for companies and fitters who specialize in building solar power equipment. They offer good everyday benefits, even with non-everyday insulation materials that are difficult to strip, e.g. as are used for solar cable. Precision wire strippers from Knipex protect the conductor in the cable during stripping and, due to their ergonomics and high functionality, make work easier for the user. The great benefits of the tools and their safe, comfortable use are the results of decades of experience making pliers, continuous development and Knipex commitment to high quality standards.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

For solar cables, specially adapted to multi-layered and RADOX® insulations

With additional cable support for a better centering of multi-layer insulated conductors in the stripping profiles

Form-fit stripping also of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber, multi-layer too

A second pair of blades holds the remaining insulation reliably in place

Replaceable shaped blade adapted precisely to the respective conductor cross-section

With length stop for constant stripping length during repetitive work

Handles with multi-component grips

Length stop that can be easily adjusted by pressing and sliding for accurately repeated wire stripping

Pliers body: steel

Specifications

Brand Name

Knipex

Assembled Weight (lbs)

0.98

Blade Material

Steel

Blade Type

Adapted

Color

Multiple

Country of Origin

Germany

Cutting Capacity

Electrical Accessory Type

Tool

Handle Material

plastic

Knife / Blade/ Scraper Type

Adapted Blade

Material

Steel

Net Tool Weight (lbs)

0.98

Package Contents

Wire Stripper with Adapted Blades,2 Blades Included

Product Condition

New

Restrictions

CA Prop 65

Size

7.7 in

Warranty Type

Lifetime against Manufacturer's Defects

Weight (lbs)

0.98

Knipex Precision Insulation Wire Stripper 195mm 10-15 AWG
