Knipex Plastic & Carbon Fiber Replaceable ESD Pointed Tip for 92 81 05
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay over time
with Affirm on orders over $150

Product Details

Knipex Plastic & Carbon Fiber Replaceable ESD Pointed Tip for 92 81 05
Knipex

Please follow our Community Guidelines and be kind!

Description

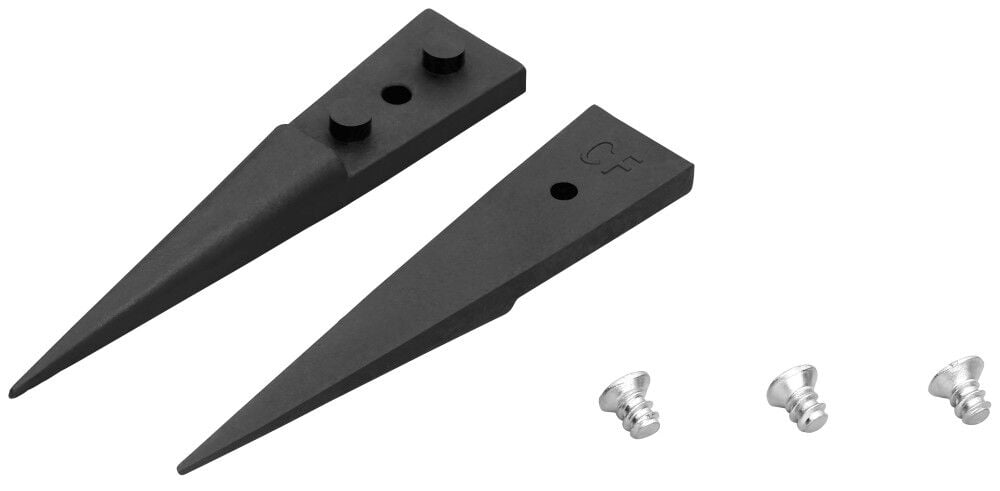

Knipex Plastic & Carbon Fiber Replaceable ESD Pointed Tip for 92 81 05

Plastic and carbon fiber tips. Straight tips. Pointed tips. Smooth gripping surface. For use with tweezers 92 81 05. For use in the electronics industry, watchmaking and jewellery. The tips have good chemical resistance to most oils, lubricants, fuels and nonpolar solvents. The plastic and carbon fiber tips are flexible, fatigue-resistant, vibration-dampening and water-repellent. Tips are ESD. Pointed tips offer precise gripping of fine components.

California Proposition 65 Warning.

Manuals

Warranty - PDF
Specification - PDF

Features

For particularly demanding precision work: tough and highly resistant to corrosion
Maximum surface protection when handling sensitive electronic components, micro-mechanical parts, as well as glass and ceramic components
Handcrafted body: polished edges and an excellent matt, scratch-free and non-reflective surface
High-quality premium stainless steel body: high temperature resistance and excellent corrosion resistance to most chemicals, salts and acids
The interchangeable, carbon fiber reinforced plastic tips have a surface resistance between 10^2 and 10^4 ohms to compensate in a controlled manner the differences in potential between the operator and electronic components
The interchangeable tips are permanently temperature stable up to 130 deg C, and up to 190 deg C for short periods
The carbon fiber reinforced plastic tips are extremely flexible, fatigue-resistant, vibration-dampening and water-repellent
The same accuracy and stability as regular tweezers: the plastic tips have a 3-point connection with zero backlash (2 fixed points on the arms, one screw), which guarantee the user perfect attachment to the body with zero backlash
The tips have good chemical resistance to most oils, lubricants, fuels and nonpolar solvents. Acid resistance: Very good, Behavior: Electrically dissipative, Tip type: Pointed
Warning: Do not use on live circuits. Always switch off power. Always wear approved eye protection

Specifications

Brand Name
Knipex
Assembled Weight (lbs)
0.006
Compatibility
For 92 81 05 Gripping Tweezer
Country of Origin
Switzerland

MFG Part # (OEM)
92 89 05

Package Contents
(2) ESD Tip

Product Condition
New

Restrictions
CA Prop 65
Size
1.5 In. Tool Length x 0.31 In. Tool Width x 0.125 In. Tool Height

UPC
843221028084

Warranty Type
Lifetime against Manufacturer's Defects
Weight (lbs)
0.006
