Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm

SKU# 83 10 030
3.7 out of 5 Customer Rating
Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm, large image number 0
Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm, large image number 1
Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm, large image number 2
Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm, large image number 3
Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm, large image number 4
Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm, large image number 5
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Qty
Secure Checkout
Affirm
Pay as low as $21/mo.
with Affirm

Product Details

Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm
Knipex

Please follow our Community Guidelines and be kind!

Description

Knipex Pipe Wrench Swedish Pattern 90 Deg Angled 650 mm

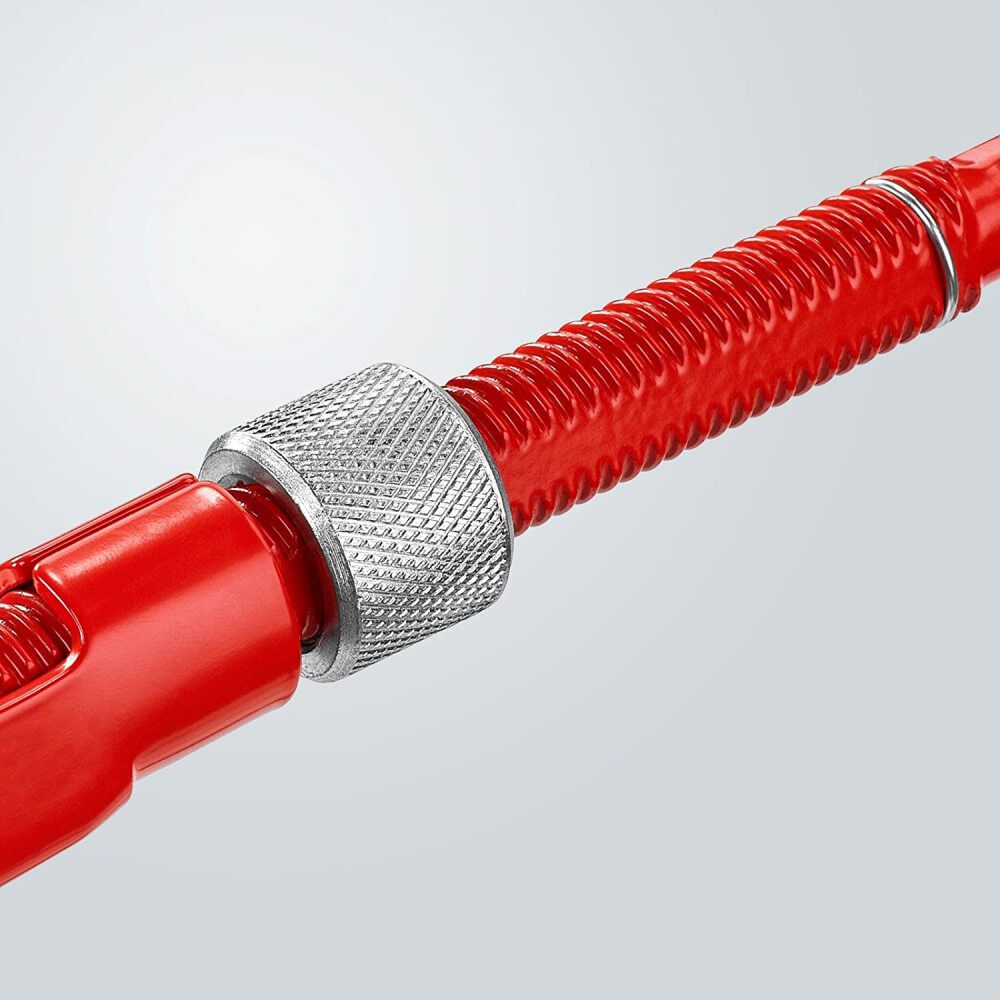

Knipex pipe wrench 83 10 030 is adjusted on the workpiece: twist the knurled screw to open the jaws, place the outer handle over the workpiece, press down the inner handle, turn the knurled screw - done. These corner pipe wrenches are infinitely adjustable, allowing the tool to be adjusted to the user's hand whatever the workpiece dimensions in the capacity range. It takes just a gentle pressure on the handle for the wrench to lock onto the workpiece in the direction of rotation. This very useful self-locking action greatly facilitates the application of high torques with Knipex pipe wrenches. When the direction of rotation changes, the wrench is reversed to maintain the self-locking action. With the overall length of 650 mm, the Knipex 83 10 030 pipe pliers apply enormous gripping force via the pliers head - whether using one hand or two. The S-shape of the jaw of the Knipex 83 10 030 establishes a stable three-point grip on the pipe. The double T-profiled handle gives the pliers very high stability and allows for a firm grip. Knipex 83 10 030 pipe pliers are heavy industry tools with lasting qualities. They were designed according to all the rules of physics & ergonomic efficiency. They are forged from high-grade chrome vanadium steel, oil-hardened & powder-coated. Teeth with additional inductive hardening. This makes the corner pipe pliers suitable for long-term heavy duty use.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Swedish pattern
90 Deg angled jaws
Jaws with offset teeth in opposite direction
Teeth additionally induction-hardened
I-beam handle design
Captive adjusting nut
Red powder-coated, jaws bright ground
Chrome vanadium electric steel, forged, multi stage oil-hardened
DIN 5234 standard
Clamping width 110 mm, capacities for pipes (diameter) 4-3/8 In., capacities for nuts 105 mm, inner diameter 3 In.

Specifications

Brand Name
Knipex
Assembled Weight (lbs)
7.56
Capacity
4.375 In Max Opening
Color
Multiple
Country of Origin
Germany

MFG Part # (OEM)
83 10 030

Material
Chrome Vanadium Electric Steel
Maximum Pipe / Tube Diameter (in)
4.375
Package Contents
Pipe Wrench

Product Condition
New

Restrictions
CA Prop 65

UPC
4003773022329

Warranty Type
Lifetime against Manufacturer's Defects
Weight (lbs)
7.56
Wrench Style
Pipe
Wrench Type
Pipe
