Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern

Name: Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern
Brand: Knipex
SKU: 83 10 015
Price: 86.99 USD
Availability: InStock

SKU# 83 10 015

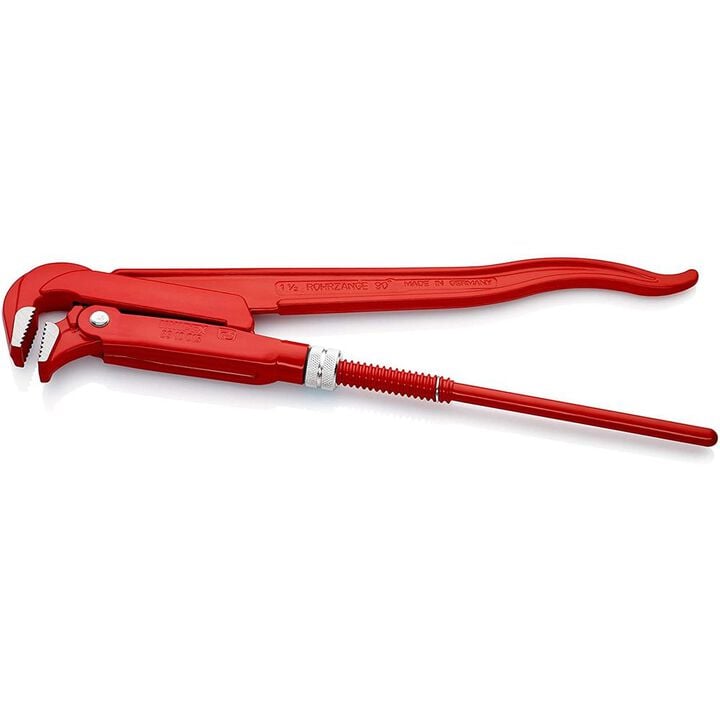

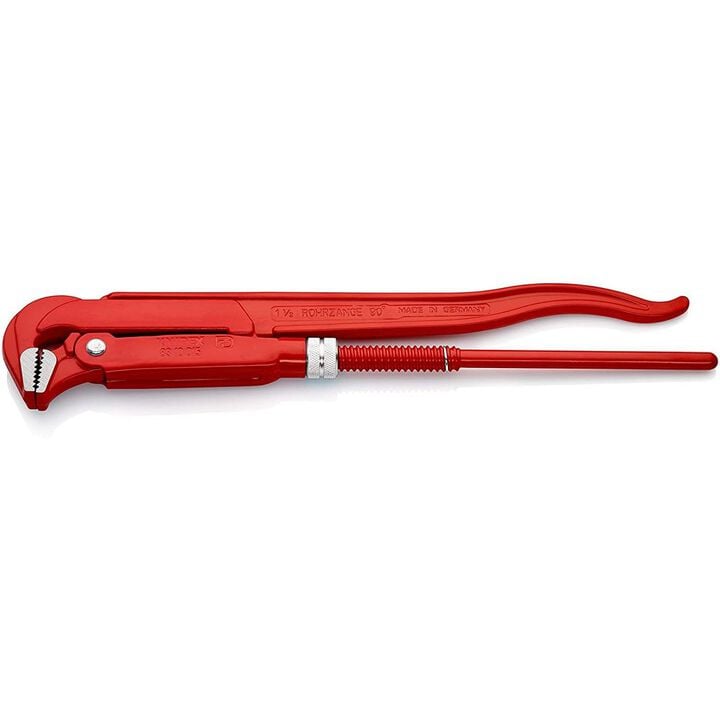

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern, large image number 0

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern, large image number 1

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern, large image number 2

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern, large image number 3

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern, large image number 4

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern, large image number 5

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern, large image number 6

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern, large image number 7

+ 3 more

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern

Knipex

Please follow our Community Guidelines and be kind!

Description

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern

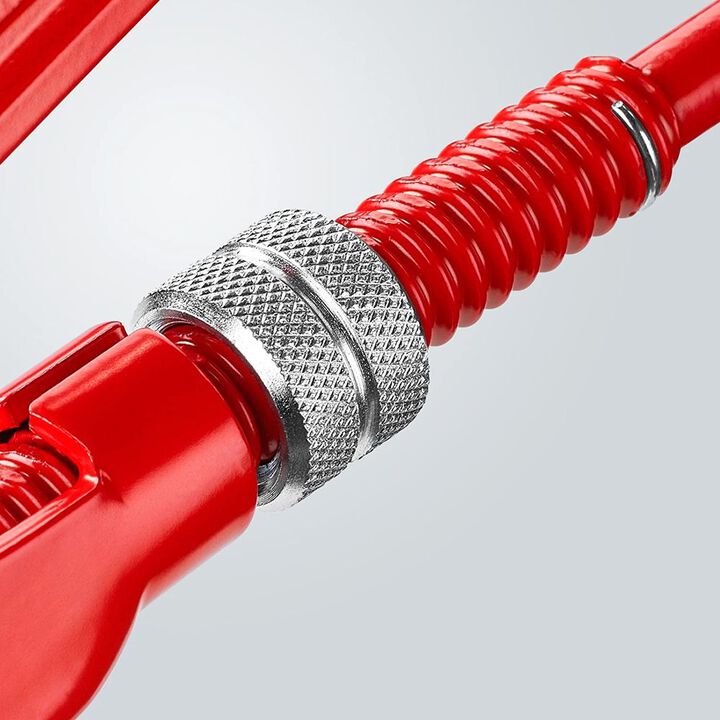

Knipex pipe wrench 83 10 015 is adjusted on the workpiece: twist the knurled screw to open the jaws, place the outer handle over the workpiece, press down the inner handle, turn the knurled screw - done. These corner pipe wrenches are infinitely adjustable, allowing the tool to be adjusted to the user's hand whatever the workpiece dimensions in the capacity range. It takes just a gentle pressure on the handle for the wrench to lock onto the workpiece in the direction of rotation. This very useful self-locking action greatly facilitates the application of high torques with Knipex pipe wrenches. When the direction of rotation changes, the wrench is reversed to maintain the self-locking action. With the overall length of 420 mm, the Knipex 83 10 015 pipe pliers apply enormous gripping force via the pliers head - whether using one hand or two. The S-shape of the jaw of the Knipex 83 10 015 establishes a stable three-point grip on the pipe. The double T-profiled handle gives the pliers very high stability and allows for a firm grip. Knipex 83 10 015 pipe pliers are heavy industry tools with lasting qualities. They were designed according to all the rules of physics & ergonomic efficiency. They are forged from high-grade chrome vanadium steel, oil-hardened & powder-coated. Teeth with additional inductive hardening. This makes the corner pipe pliers suitable for long-term heavy duty use.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Swedish pattern

90 Deg angled jaws

Jaws with offset teeth in opposite direction

Teeth additionally induction-hardened

I-beam handle design

Captive adjusting nut

Red powder-coated, jaws bright ground

Chrome vanadium electric steel, forged, multi stage oil-hardened

DIN 5234 standard

Clamping width 62 mm, capacities for pipes (diameter) 2-3/8 In., capacities for nuts 60 mm, inner diameter 1 In.

Specifications

Brand Name

Knipex

Assembled Weight (lbs)

3.11

Capacity

2.375 In Max Opening

Color

Multiple

Country of Origin

Germany

MFG Part # (OEM)

83 10 015

Material

Chrome Vanadium Electric Steel

Maximum Pipe / Tube Diameter (in)

2.375

Package Contents

Pipe Wrench

Product Condition

New

Restrictions

CA Prop 65

UPC

4003773014195

Warranty Type

Lifetime against Manufacturer's Defects

Weight (lbs)

3.11

Wrench Style

Pipe

Wrench Type

Pipe

Knipex Pipe Wrench 90 Degree Angled 420 mm Swedish Pattern
