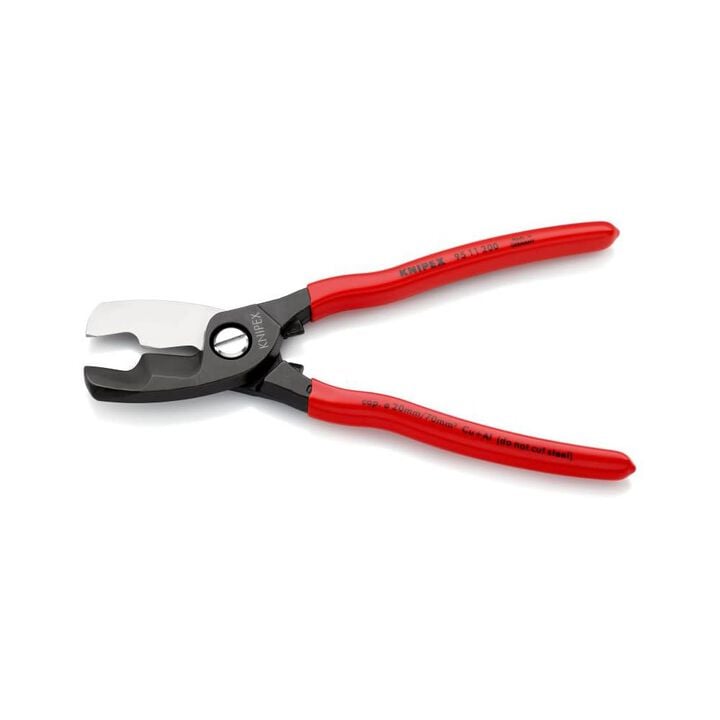

Knipex Cable Shear with Twin Cutting Edge 200mm

SKU# 95 11 200 SBA
4.5 out of 5 Customer Rating
Knipex Cable Shear with Twin Cutting Edge 200mm, large image number 0
Knipex Cable Shear with Twin Cutting Edge 200mm, large image number 1
Knipex Cable Shear with Twin Cutting Edge 200mm, large image number 2
Knipex Cable Shear with Twin Cutting Edge 200mm, large image number 3
Knipex Cable Shear with Twin Cutting Edge 200mm, large image number 4
Knipex Cable Shear with Twin Cutting Edge 200mm, large image number 5
Knipex Cable Shear with Twin Cutting Edge 200mm, large image number 6
Knipex Cable Shear with Twin Cutting Edge 200mm, large image number 7
Previous Next
+ 3 more
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

Knipex Cable Shear with Twin Cutting Edge 200mm
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay over time
with Affirm on orders over $150

Product Details

Knipex Cable Shear with Twin Cutting Edge 200mm
Knipex

Please follow our Community Guidelines and be kind!

Description

Knipex Cable Shear with Twin Cutting Edge 200mm

In the front cutter profile of the Knipex 95 11 200 there is an initial cut into the insulating sheath on larger cable cross-sections; the metal conductors are subsequently cut in the back cutter profile. This division of work on the twin cutting edge makes work easier for the user. The initial cut in the front profile also provides a hand-friendly grip position for large cross-sections. Knipex 95 11 200 cable shears cut with the twin cutting edge using a scissors action, and therefore cut very smoothly and cleanly. Diagonal cutters, with blades that meet at an obtuse angle, and which crush cable insulation and deform cable ends are not really suitable for cutting cable. The Knipex 95 11 200 cable shears demonstrate their qualities when shortening stranded and finely stranded Cu and Al cables, also with large cross-sections. For reasons of design, the cable shears must not be used to cut steel wire or hard drawn copper conductors. Thanks to the precision ground twin cutting edge, the cable shears with twin cutting edge deliver a lasting clean, even cutting result. Comparatively little effort is required due to the favorable transmission ratio, thereby conserving the manual force of the fitter. The precisely running bolted joint also contributes to comfortable work using these cable shears. The bolted joint is self-locking and can be adjusted where necessary. Knipex cable shears with the twin cutting edge are a tool for electrical installation. Those who use tools a lot and professionally every day expect a quality that permits simple and safe work as well as a tool that lasts for many years of hard use. We forge our tools from quality materials, machine them with high precision on modern machinery and harden them with careful multiple stage heat treatment.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

For cutting copper and aluminum cables
Not suitable for steel wire and hard drawn copper conductors
Precision-ground, hardened blades
Clean and smooth cut without crushing and deformation
By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables upto 20 mm diameter can be cut in one-hand operation
Low hand force required due to favorable lever ratio and special blade geometry
Pinch guard prevents operators' fingers being pinched
Adjustable bolted joint, self-retaining screw
High-grade special tool steel, forged, oil-hardened
Plastic-coated handles

Specifications

Brand Name
Knipex
Application
For Cutting Copper & Aluminum Cables
Assembled Weight (lbs)
0.55
Blade Material
Steel
Color
Multiple
Country of Origin
Germany
Cutting Capacity
70 mm2 Multiple-Stranded Copper Cable, 20 mm Multiple-Stranded Copper Cable Diameter
Electrical Accessory Type
Tool
Handle Material
plastic
Insulated
No

MFG Part # (OEM)
95 11 200 SBA

Material
Burnished High-Grade Special Tool Steel
Package Contents
Cable Shear with Twin Cutting Edge Retail Packaging

Product Condition
New

Restrictions
CA Prop 65

UPC
843221000332

Warranty Type
Lifetime against Manufacturer's Defects
Weight (lbs)
0.55
