Industrial Air Compressor 80 Gallon 5 HP Single Phase 230V Two Stage

SKU# IV5048055
4.9 out of 5 Customer Rating
Industrial Air Compressor 80 Gallon 5 HP Single Phase 230V Two Stage, large image number 0
Industrial Air Compressor 80 Gallon 5 HP Single Phase 230V Two Stage, large image number 1
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  No Air Shipments

Freight Shipping Rates Apply
Industrial Air Compressor 80 Gallon 5 HP Single Phase 230V Two Stage
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Freight Delivery
Freight Delivery
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $97/mo.
with Affirm

Product Details

Industrial Air Compressor 80 Gallon 5 HP Single Phase 230V Two Stage
Industrial Air

Please follow our Community Guidelines and be kind!

Description

Industrial Air Compressor 80 Gallon 5 HP Single Phase 230V Two Stage

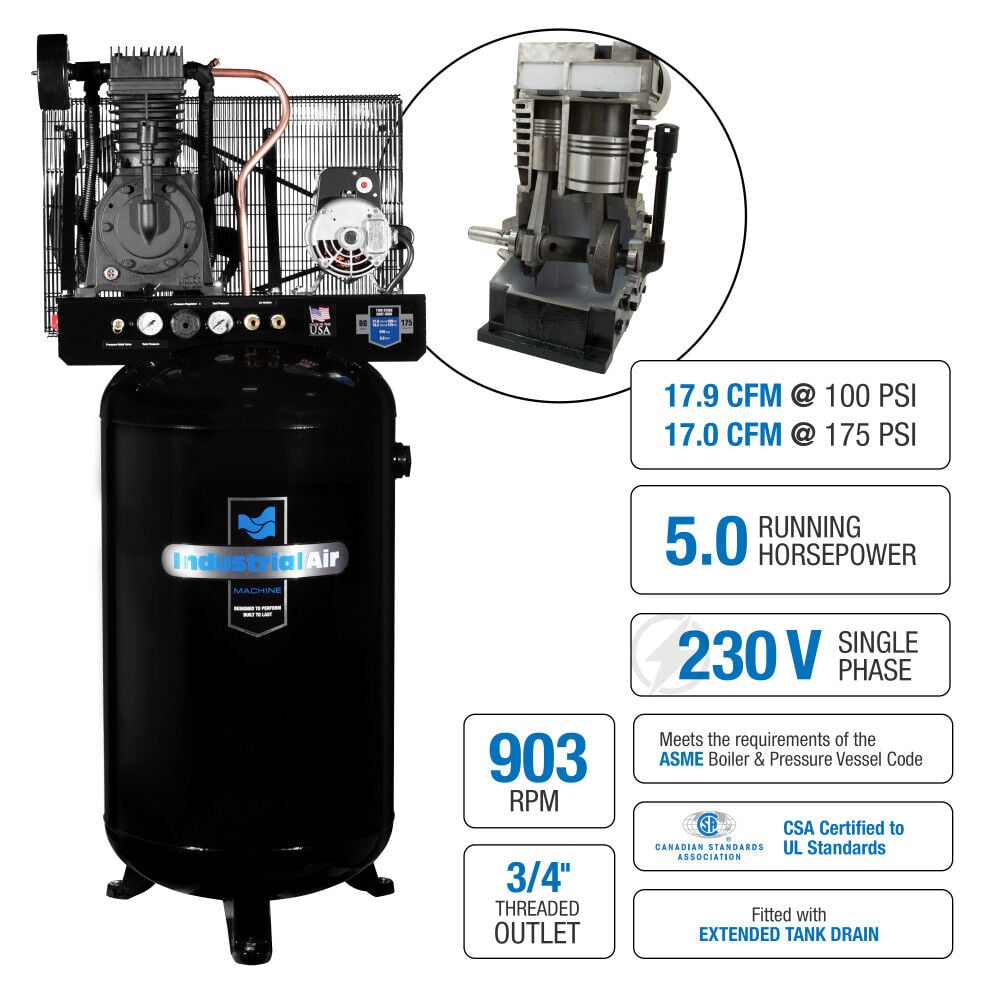

The Industrial Air 80 Gallon Stationary Compressor delivers optimal air flow of up to 17.0 CFM at 175 PSI, offering plenty of air power to operate multiple air tools or devices at a time. No magnetic starter is needed thanks to a thermal overload protection system (TOPS) motor which helps protect the 5 HP motor from voltage fluctuations. The patented cast iron, oil lubricated pump provides improved compression efficiency and low pump RPM. This unit also features a convenient integrated control panel fitted with couplers and pressure gauges for easy operation, as well as a 3/4 in. threaded side outlet, and extended tank drain.

California Proposition 65 Warning.
View Warning Label

Manuals

Use and Care Manual - PDF

Features

Heavy-duty, 5.0 HP motor operates on 230 Volt
Maximum pressure of 175 PSI to operate more than one tool at once
Delivers 17.9 CFM at 100 PSI and 17.0 CFM at 175 PSI
Large-capacity, 80 gallon ASME certified receiver tank
2-stage, cast-iron, oil-lubricated compressor pump
Equipped with integrated control panel for added user control and convenience
Features 3/4 inch air outlet
Fitted with extended tank drain for easier maintenance
Made in USA of domestic and global components

Specifications

Brand Name
Industrial Air
Air Compressor Pump Design
Oil Lubricated
Air Volume (CFM)
18 CFM @ 90 PSI; 17.9 CFM @ 100 PSI; 17 CFM @ 175 PSI
Amperage (A)
22
Application
Bolting, Drilling, Grinding, Sanding, Spraying, Surface Prep, Wrenching, Air Brushing, Cutting, Nailing, Inflation, Fastening/Tightening
Assembled Weight (lbs)
475
California Proposition 65 Warning Required
Yes
Color
Black
Compressor Design
Vertical
Country of Origin
United States
CSA Certified
Yes
Decibel Rating (dB)
86
ETL Listed
Yes
Fuel Type
Electric
Handle Included
No
Height (in)
77
Horsepower (hp)
5
Length
31.5 in

MFG Part # (OEM)
IV5048055

Maximum Air Pressure (psi)
175
Maximum Pressure Rating (psi)
175
Operating Position
Vertical
Package Contents
compressor, manual
Phase
1
Pressure Rating (psi)
175

Product Condition
New

Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
UL Listed
Yes

UPC
846212008669

Voltage
230
Warranty Type
2 Years Limited
Weight (lbs)
475
Wheeled
No
