Hobart Handler 210MP 115/230VAC Wire Feed MIG Welder (Reconditioned)

Hobart

Please follow our Community Guidelines and be kind!

Description

Hobart Handler 210MP 115/230VAC Wire Feed MIG Welder (Reconditioned)

Factory reconditioned Handler 140 wire welder. All refurbished Hobart equipment has been reconditioned to like new condition and retested to the same standards as new equipment. A versatile wire feed welder capable of operating on either 115V or 230V input power. Welds up to 3/8Iin. mild steel, spool gun ready for aluminum, and is flux-cored or MIG ready. The Handler 210MVP is one of the most powerful and versatile machines. Dual voltage input power gives you the flexibility to weld on either 115 or 230 volts. Connect to common 115V input power or 230V without the use of any tools. Simply choose the plug that fits the receptacle. Weld as thin as 24 gauge up to 3/8 In. in a single pass with a broad output range of 25-210A. Easily run thicker materials with multiple passes. Quick and easy setup with Quick Select™ drive rolls, which offer three grooves -two for different sizes of solid wire and a third for flux-cored wire. Easy to set and adjust for different materials and thicknesses, it features seven output voltage settings for finer control, less spatter, and cleaner welds.

California Proposition 65 Warning.

Manuals

Specification - PDF

Features

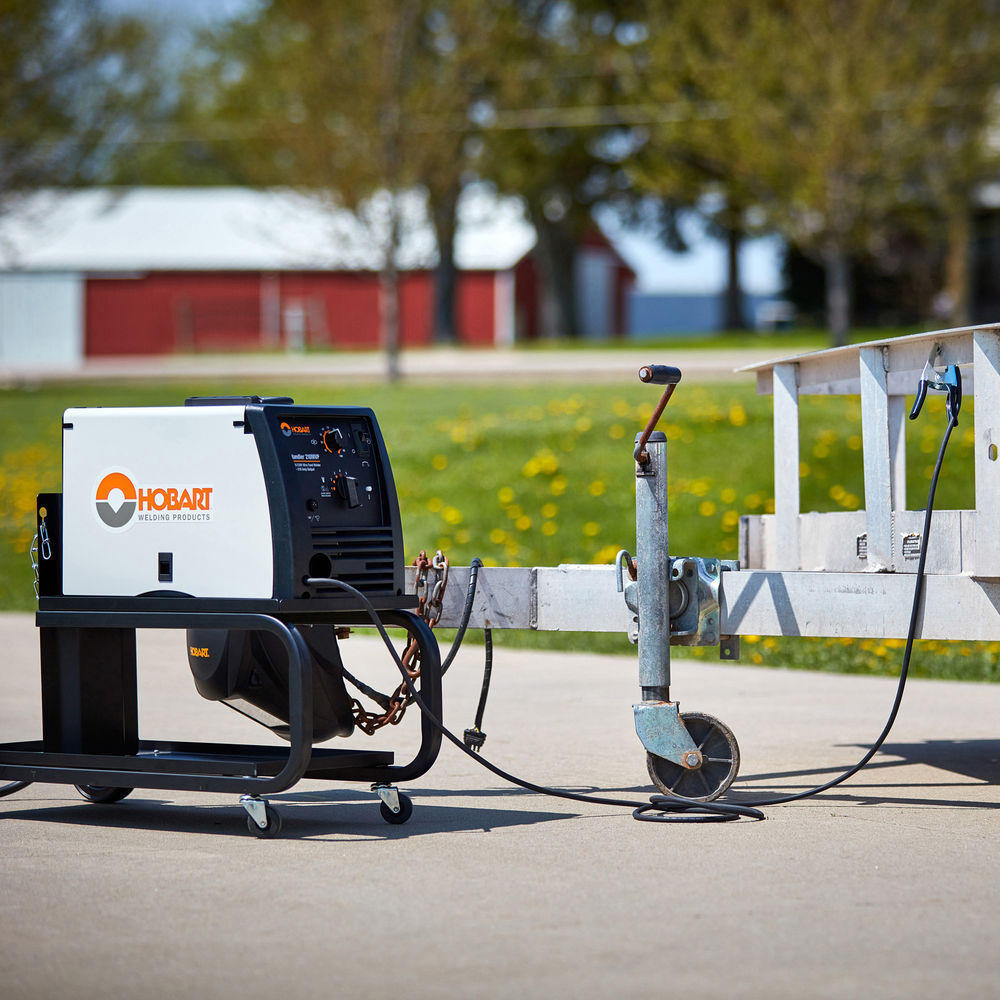

Max 210A in small portable case - Sized for you to easily transport the unit to the jobsite with the power to weld 3/8 In. mild steel. 7 (230 V) and 4 (115V) voltage settings, with infinite wire feed speed control - Allows you to fine control the output parameters for improved arc performance with less spatter for a better bead appearance and less clean-up.

Integrated spool gun control circuitry is standard - Eliminates your need for an additional control box or adaptor to connect the SpoolRunner 100 spool gun. Dual-voltage capability with MVP (multi-voltage plug) - Allows you to connect to common 115 or 230V power receptacles without the use of any tools - simply choose the plug that fits the receptacle.

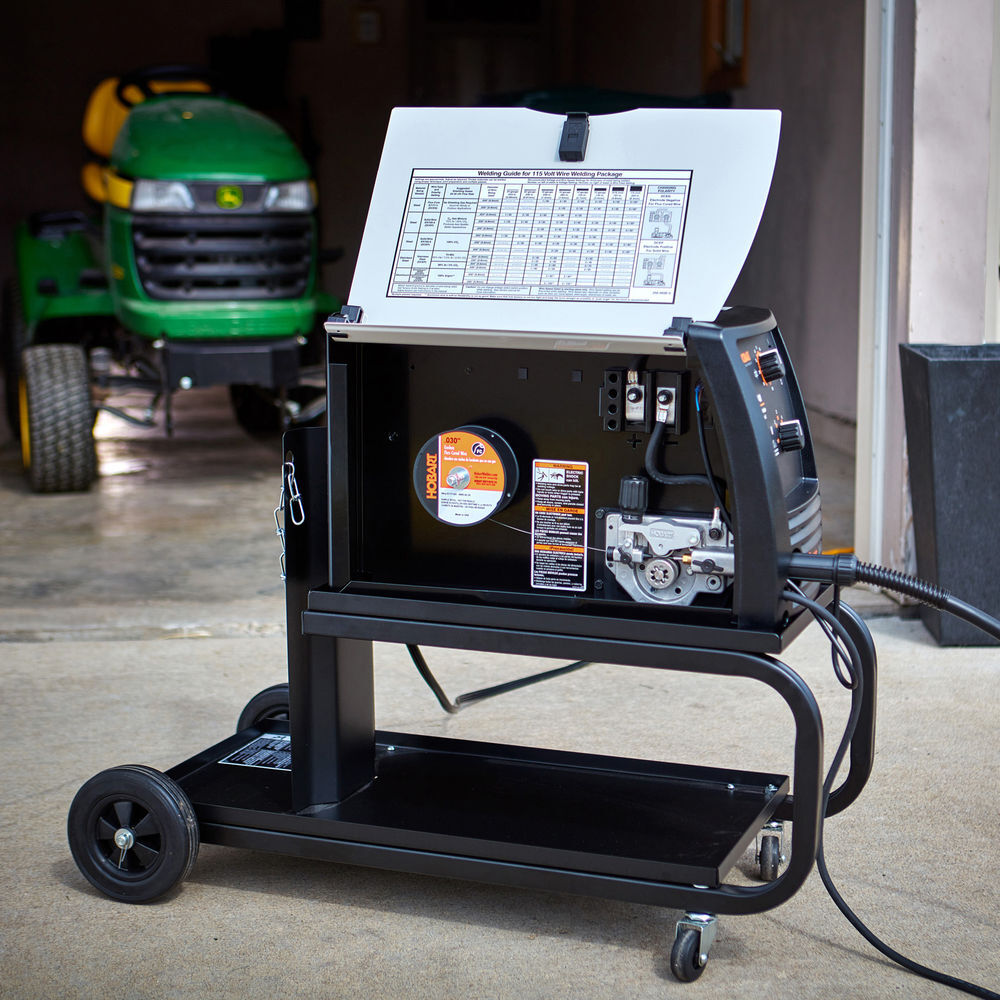

Door Chart with initial settings - You can quickly reference initial settings for different wires, gases, materials, and thicknesses. It provides you with a quick starting point whether you are a novice or a professional. Built-in contactor - Keeps wire electrically "cold" until the trigger is pulled, which makes it easy to use and keeps you safe.

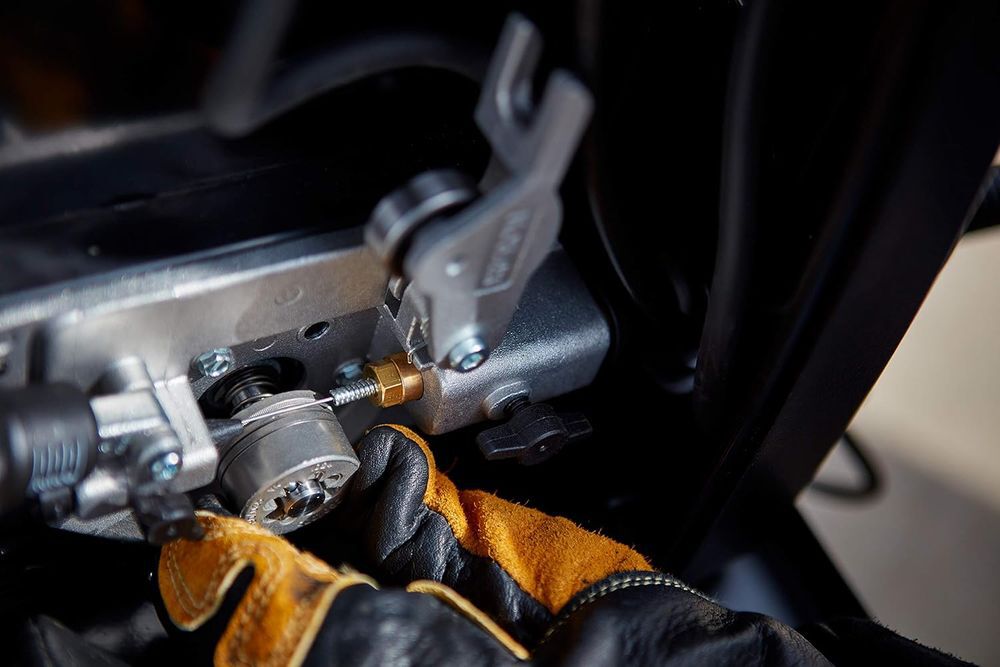

Industrial cast aluminum wire drive system - Durable wire feed provides you with professional performance. Convenient polarity changeover - Easier and quicker for you to change polarity between solid or tubular wire.

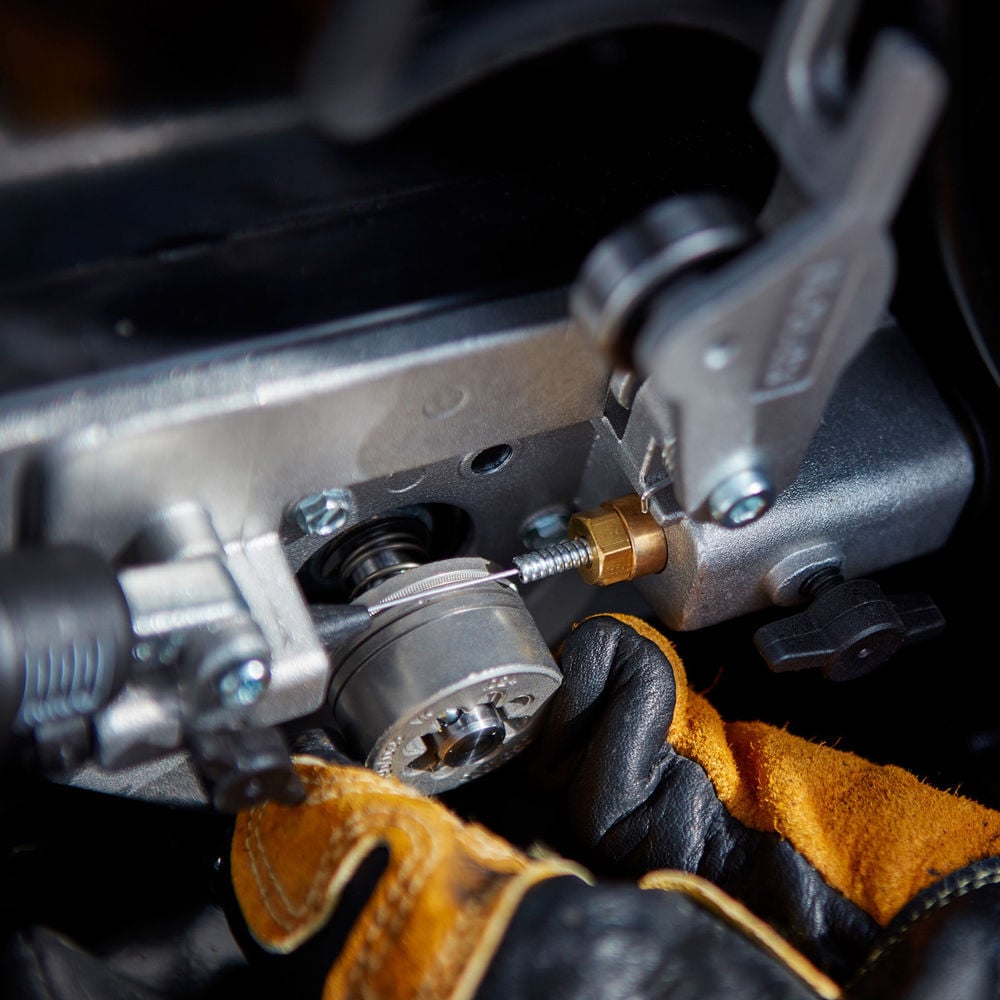

Quick Select drive roll - Less of your time consumed in setup by offering three grooves - two for different size solid wire and a third for flux-cored wire.

Short circuit protection protects the unit against current overload. Self-resetting thermal overload protection protects the power transformer from thermal overload to provide maximum reliability.

Current-limited motor protection - Protects wire feed system from overload, you won't need to change or reset the circuit breaker button.

Accepts uncomplicated, easy-to-install direct plug-in Spool Runner 100 spool gun - Spool guns enhance feedability and reduce "bird-nesting" associated with soft aluminum wires.

Portability - Handle, Input voltage - 110/115/120/220/230/240V, Input phase - 1-Phase, Frequency - 60 Hz, Warranty - 2 Years - Parts and Labor: Original main power rectifiers only to include SCRs, diodes, and discrete rectifier modules reactors, stabilizers, transformers, 1 Years - Parts and Labor: Drive Systems, Idle Module, PC Boards, Rotors, Stators and Brushes, Solenoid Valves, Spot Welder Transformer, Switches and Controls, 90 days - Parts and Labor: Motorized guns.

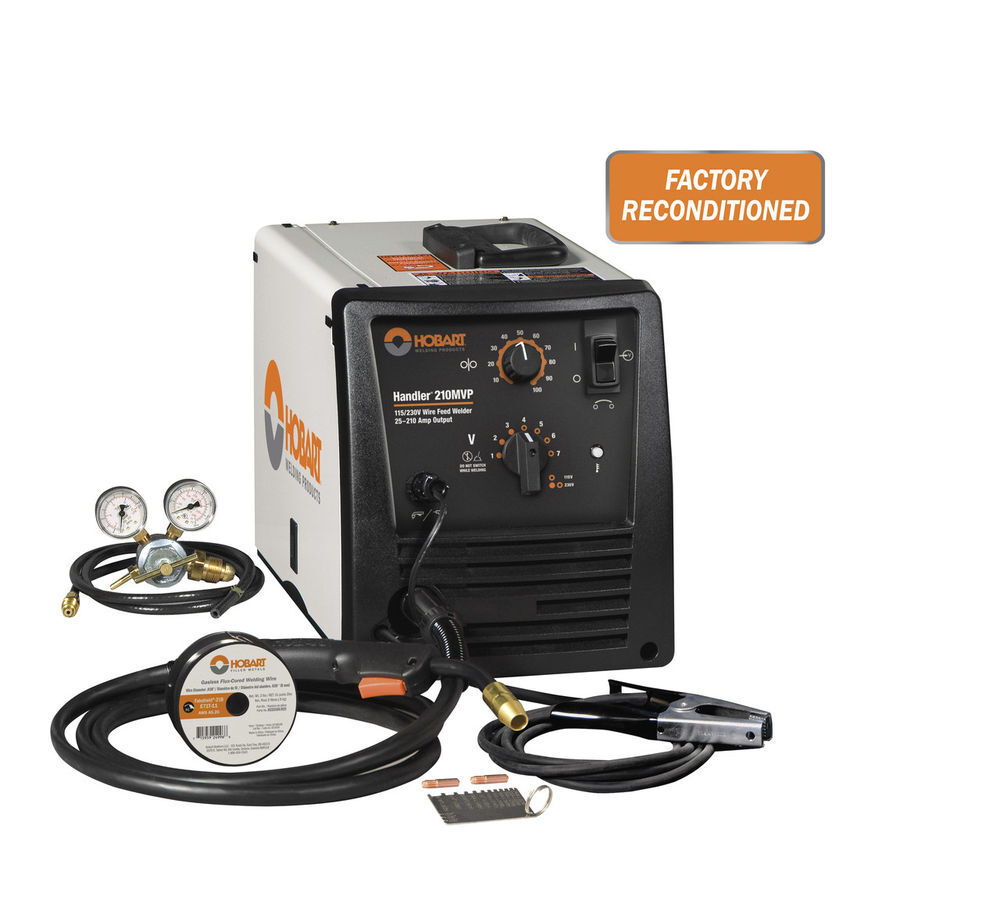

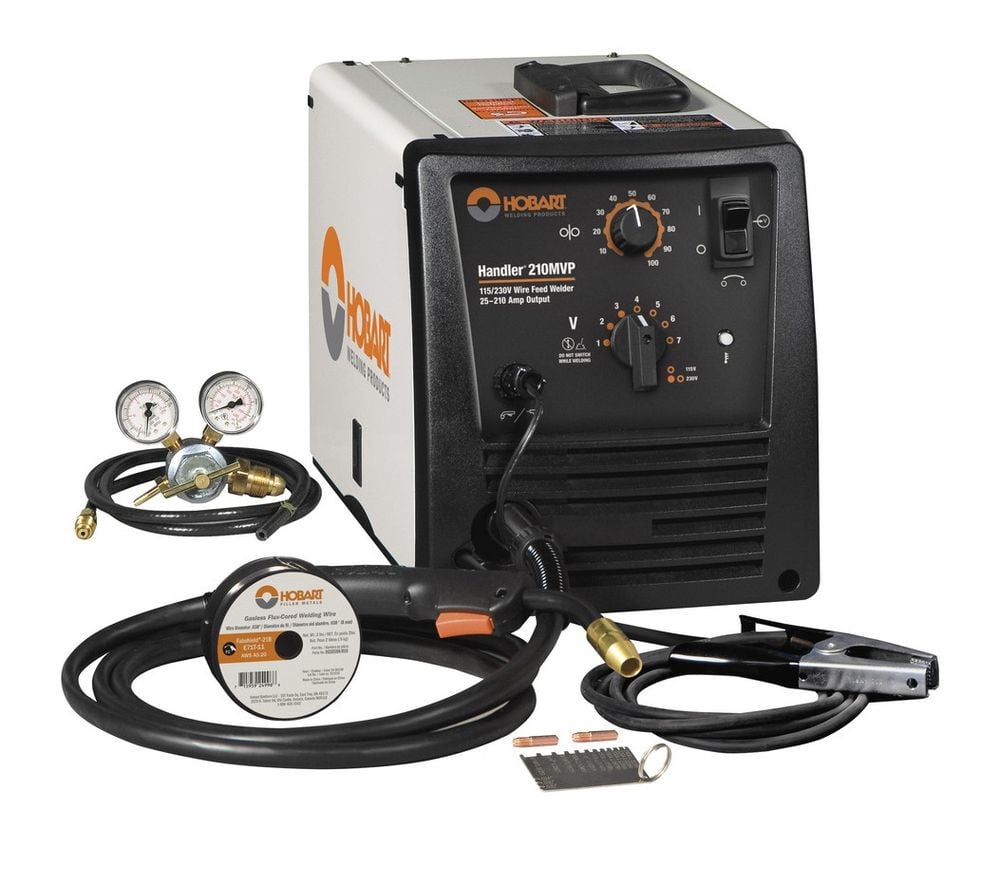

Includes - Comfortable 10 Ft. (3 m) HR-100 gun, Owner's manual with installation, operation and maintenance guidelines, 10 Ft.(3 m) work cable with clamp, Built-in gas solenoid value and dual-gauge regulator with gas hose, Spool hub assembly accommodates 4 or 8 In. spools, Sample spool of 0.03 In. self-shielding flux-cored wire, 0.03 In. (0.8 mm) contact tips, Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 In., Power cord with 5-15 P (115V, 15A) and 6-50 P (230V, 50A) MVP (TM) plugs, Welding guide and material thickness gauge.

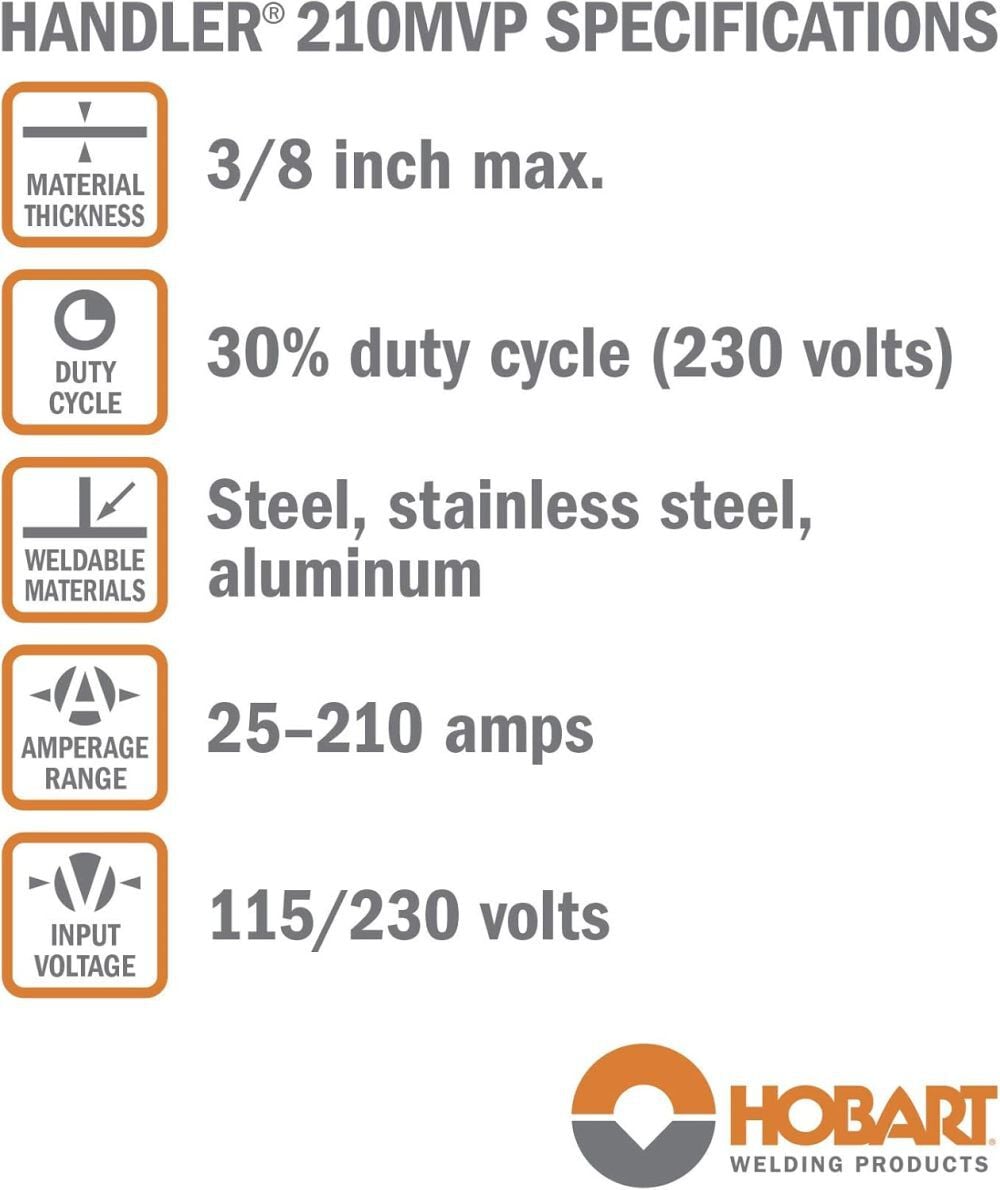

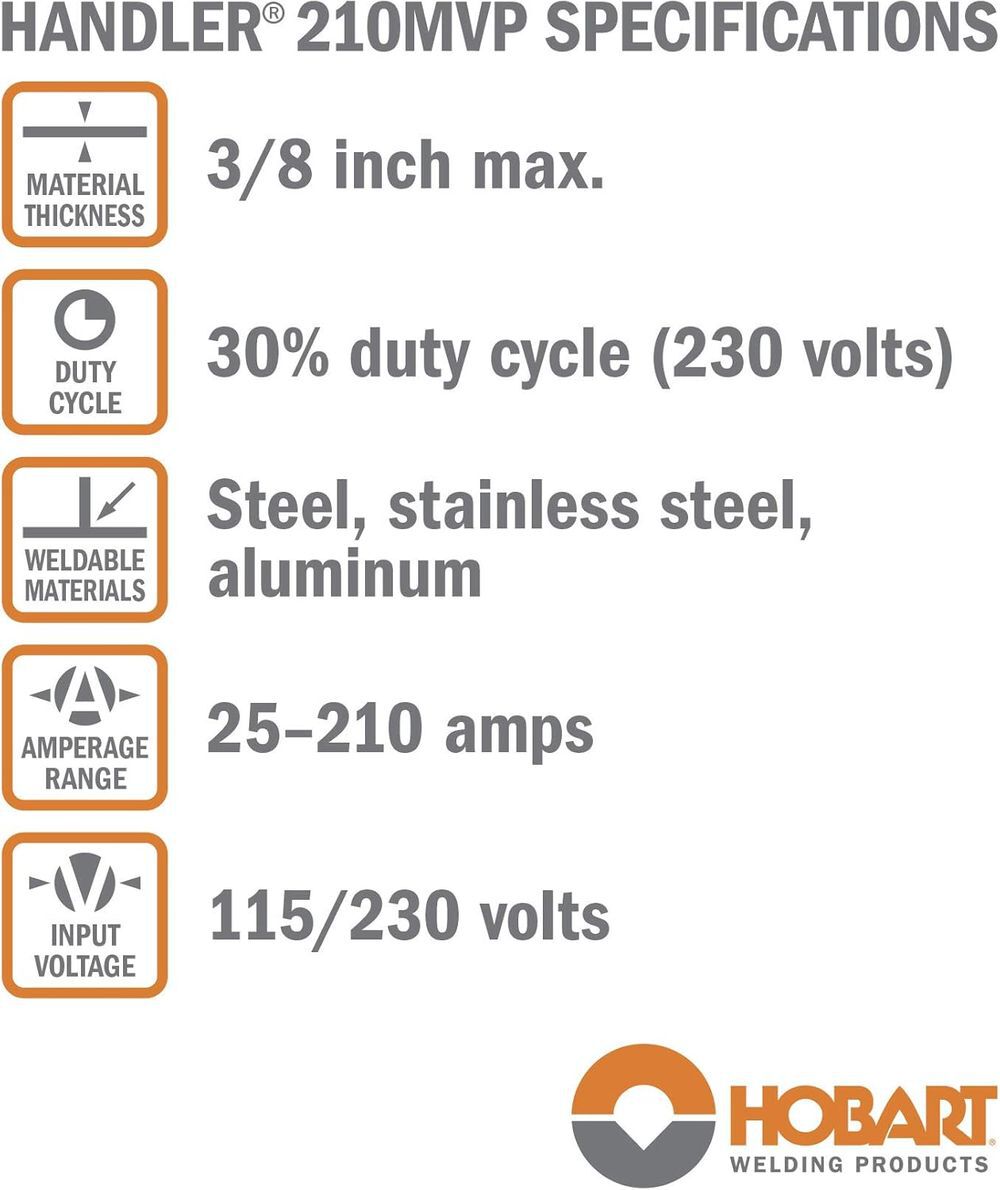

Specifications

Brand Name

Hobart

Application

For Welding Materials - Aluminum, Stainless Steel, Steel

Assembled Weight (lbs)

Compatibility

For Material Thickness - Mild Steel 24 gauge (0.5 mm) - 3/8 In. (9.5 mm)

Country of Origin

China

MFG Part # (OEM)

500553R

Maximum Amperage (A)

140

Package Contents

(1) Welder (1) Gun, Work Cable with Clamp, (1) Solenoid Valve and Dual Gauge-Regulator with Hose, (1) Spool Hub Assembly, (1) Sample Spool, (1) Contact Tips, (1) Drive Roll, (1) Power Cord, (1) Welding Guide and Material Thickness Gauge, (1) Manual
