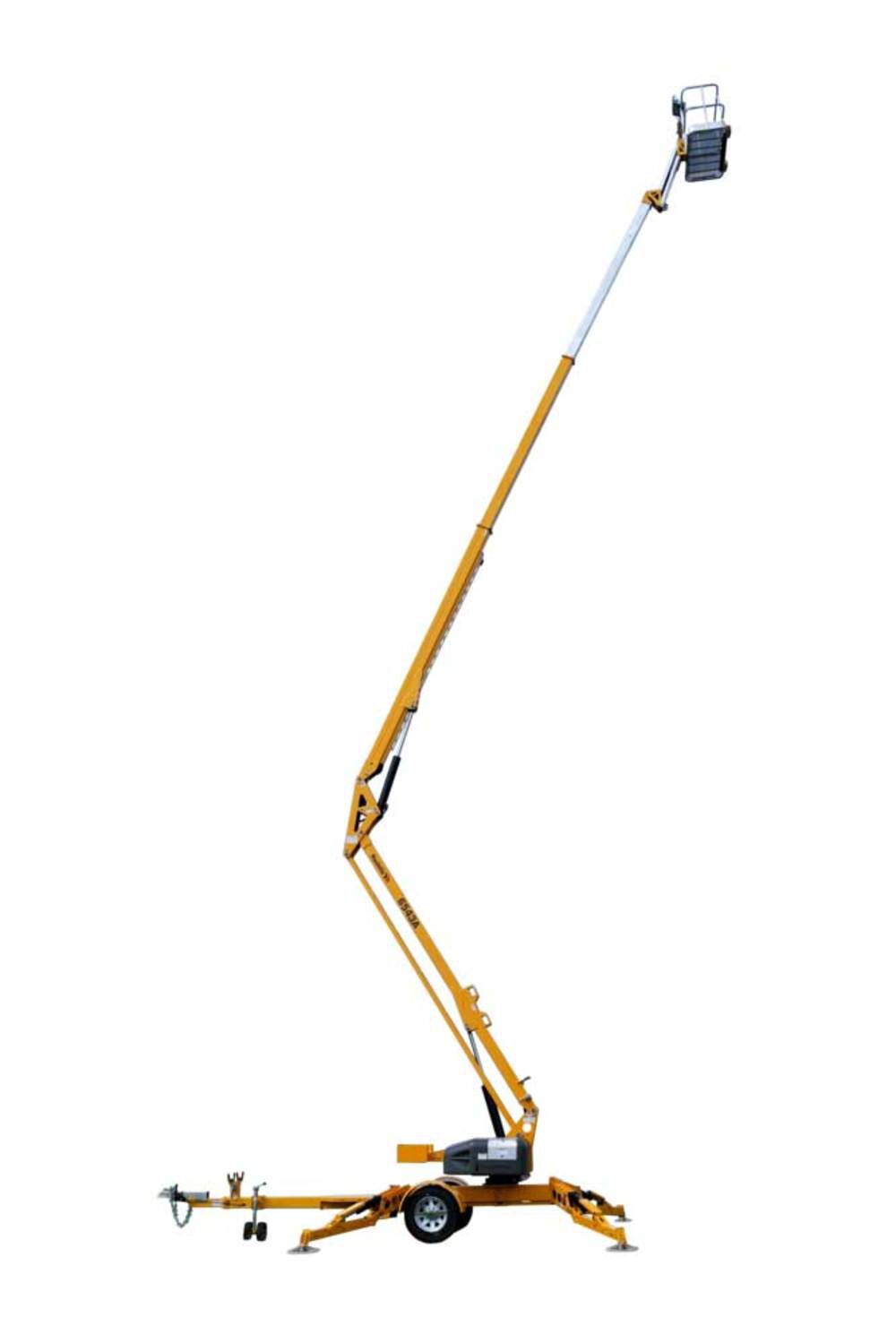

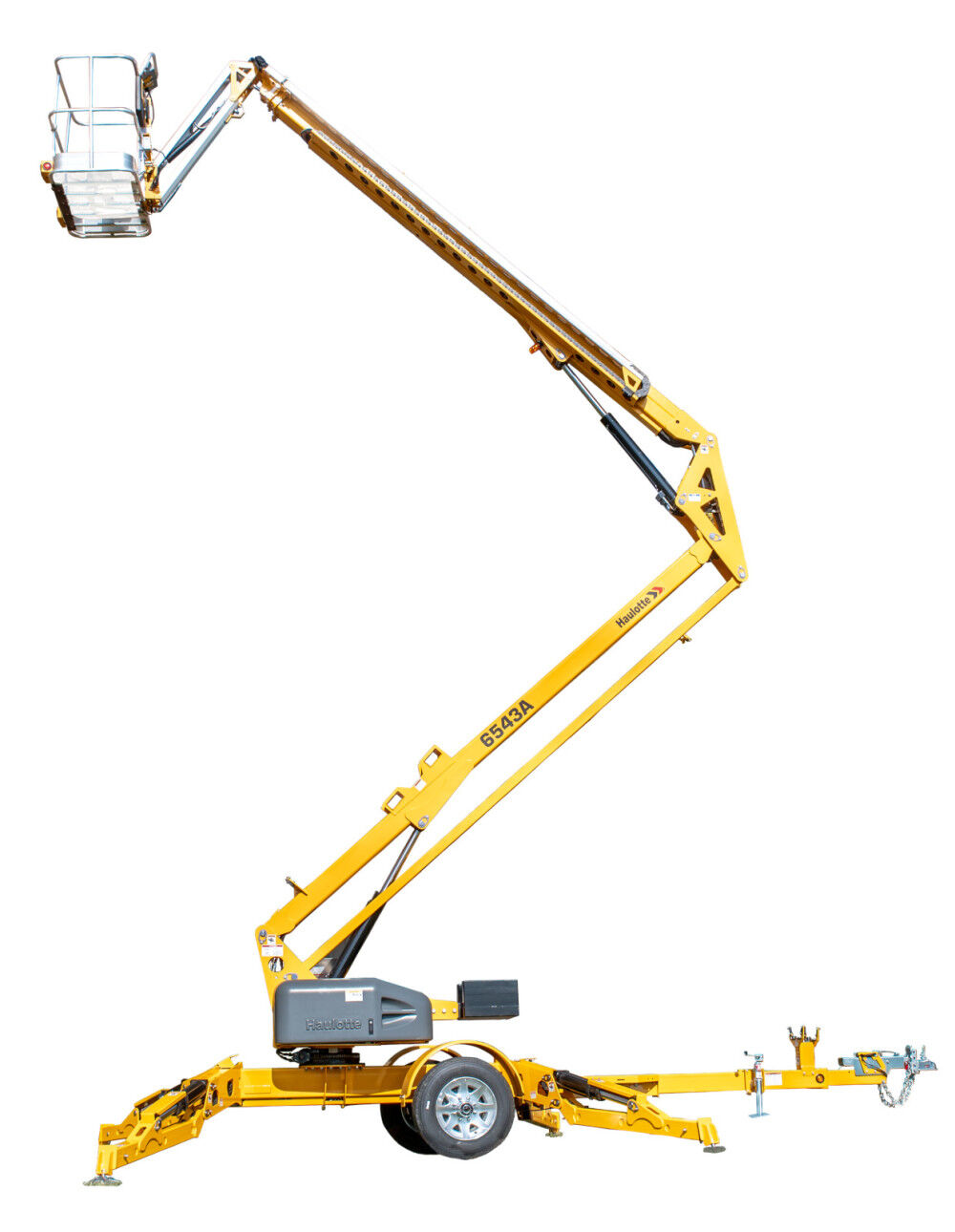

Haulotte 6543A Tow Behind Boom Lift 65'

Item No. SKU# 6543a
5 out of 5 Customer Rating
Haulotte 6543A Tow Behind Boom Lift 65', large image number 0
Haulotte 6543A Tow Behind Boom Lift 65', large image number 1
Haulotte 6543A Tow Behind Boom Lift 65', large image number 2
Haulotte 6543A Tow Behind Boom Lift 65', large image number 3
Haulotte 6543A Tow Behind Boom Lift 65', large image number 4
Haulotte 6543A Tow Behind Boom Lift 65', large image number 5
Haulotte 6543A Tow Behind Boom Lift 65', small
Haulotte 6543A Tow Behind Boom Lift 65', small
Haulotte 6543A Tow Behind Boom Lift 65', small
Haulotte 6543A Tow Behind Boom Lift 65', small
Haulotte 6543A Tow Behind Boom Lift 65', small
Haulotte 6543A Tow Behind Boom Lift 65', small
Call for Pricing Information: 833-860-7137
Made In USA
Oversized Shipping Rates Apply
Ships Truck or Local Pickup
Close
This item is shipped via "truck freight" (common carrier or flat-bed, not FedEx). On average, shipping can cost $3 per loaded mile. Call 833-860-7137 for an exact freight quote, which is extra. The truck must be able to have road and turn around access at the place of delivery. The product will require special equipment for offloading (forklifts, telehandlers, etc.). A signature will be required at the time of delivery.

Acme Tools Guarantee
Need more information ?

Description

Haulotte 6543A Tow Behind Boom Lift 65'

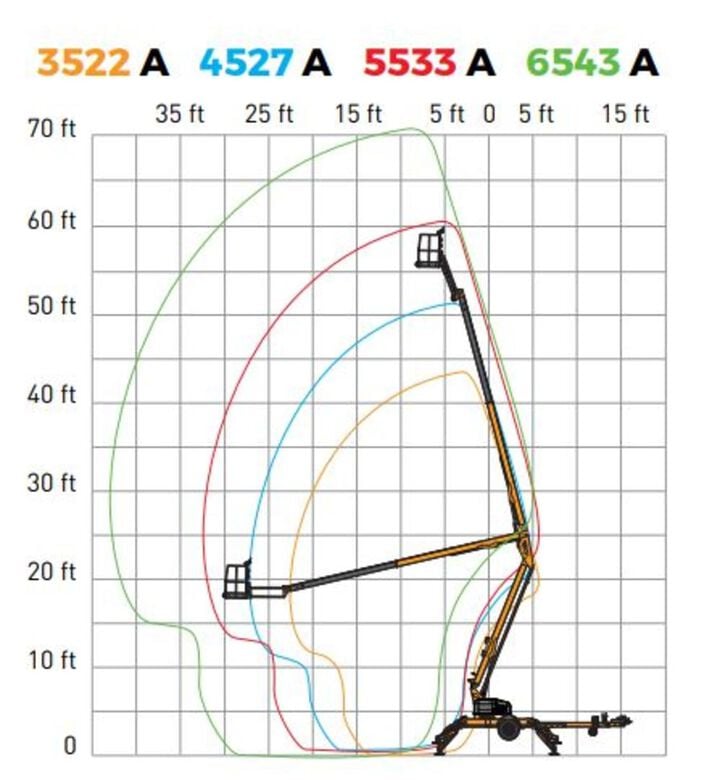

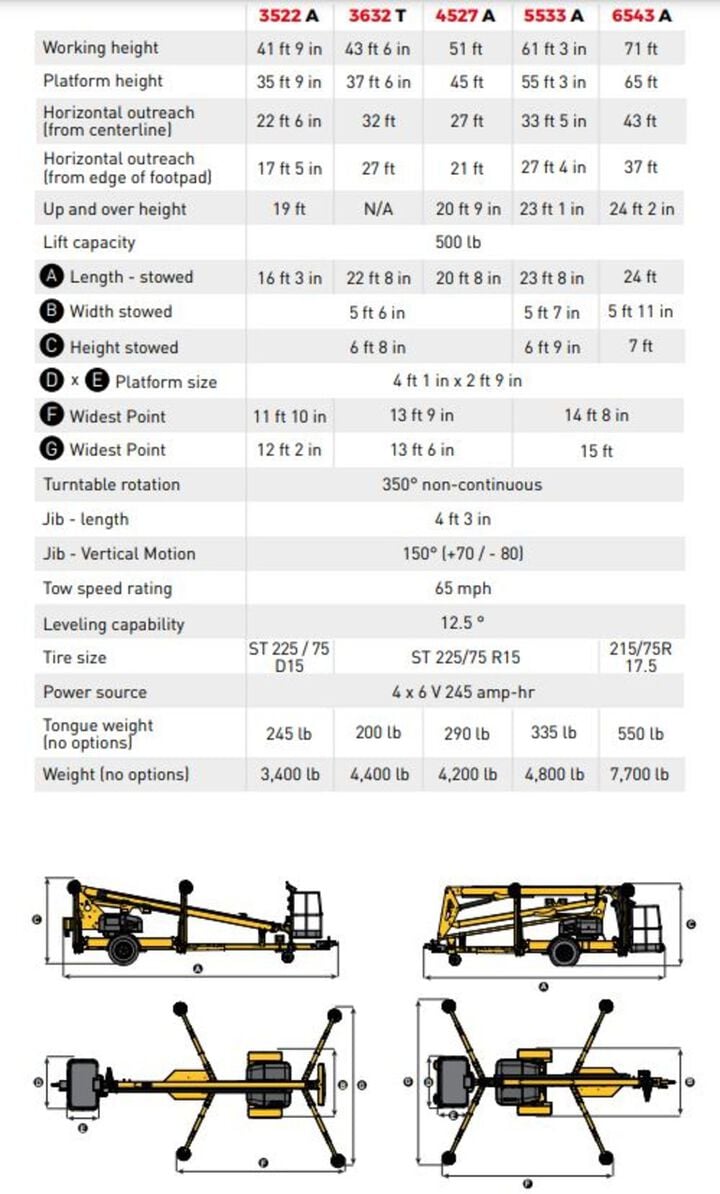

STK# 6543A New HAULOTTE 6543A 65' Electric Articulated and Telescopic Trailer Boom Lift, Hydraulic Auto-Leveling Outriggers. Haulotte Features Hydraulic outriggers and automatic leveling allow operation in under 30 seconds Can be towed by a standard half-ton pickup truck. Air/Water lines and 110V GFI protected power to the platform. Specifications Model 6543A Power Source Battery Working Height 71' Platform Height 65' Horizontal Outreach 43' Up and Over Height 24' 2" Length Stowed 24' Width Stowed 5' 11" Height Stowed 7' Platform Size 4' 1" X 2' 9" Turntable Rotation 350 Degrees Non-Continuous Jib Length 4' 3" Tow Speed Rating 65 mph Leveling Capability 12.5 Degrees Acme Equipment is here to provide you all of the information you need to make an educated purchase, as well as support you after the sale with parts, service, and warranty. Let us help you make a great investment. *** We Ship To All 50 States. We Have a Loading Dock, Forklift and Loading Personnel ***

California Proposition 65 Warning.

Features

Acme Equipment | 3401 GATEWAY DRIVE | Grand Forks | North Dakota | 58203 | USA
Dealer Owned
New
Lifts - Boom Lifts - Towable
Includes a charger
Hour meter and battery condition indicator
110V GFI protected power to the platform
Easy to use controls with logically positioned buttons
Electric powered
Exceptional productivity

Specifications

Brand Name
Haulotte
ANSI Approved
Yes
Assembled Depth (in)
100
Assembled Weight (lbs)
500
Assembled Width (in)
100
Base Length (in)
288
Base Width (in)
70.80000000000001
Battery Ampere-hour (Ah)
245
California Proposition 65 Warning Required
Yes
Color
Yellow
Country of Origin
United States
Height (in)
100
Horsepower (hp)
0
Hour Meter
Yes
MFG Part # (OEM)
6543a
Meets ANSI or OSHA Standards
Yes
Number of Batteries Required
4
Package Contents
6543A Tow Behind Boom Lift 65'
Package Depth
100
Package Height
100
Package Weight
500
Package Weight (lbs)
7700
Platform Length (in)
48
Platform Width (in)
33
Product Condition
New
Tire Size
ST218/75R17.5
UPC
400543000022
Weight (lbs)
7700
