Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch

Name: Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch
Brand: Generac
SKU: RXSW200A3
Price: 869.00 USD
Availability: OutOfStock

SKU# RXSW200A3

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch, large image number 0

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch, large image number 1

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch, large image number 2

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch, large image number 3

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch, large image number 4

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch, large image number 5

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch, large image number 6

+ 2 more

Discontinued by Manufacturer

Contact for more Information: 877-345-2263

Need more information ?

Product Details

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch

Generac

Please follow our Community Guidelines and be kind!

Description

Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch

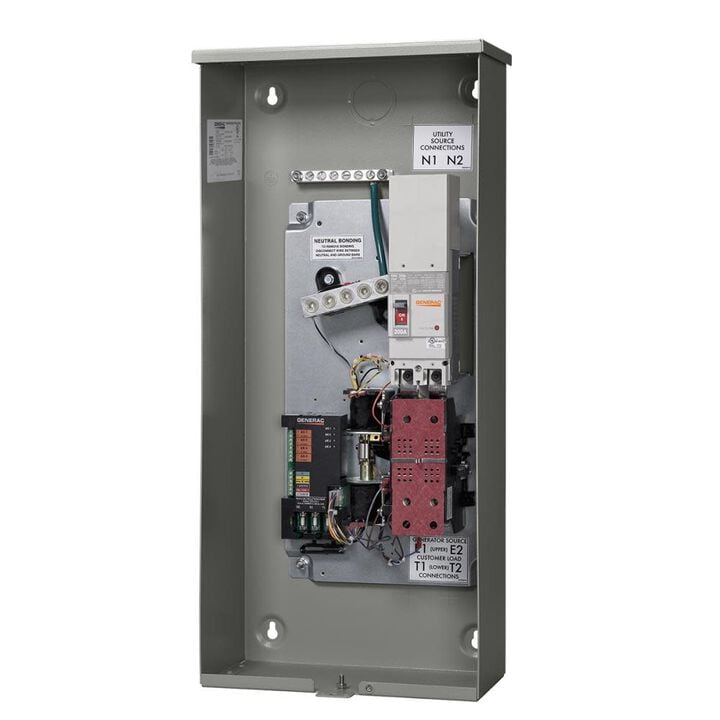

This 200 amp automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. Transfer of electrical loads occurs automatically when the utility power source has failed or is substantially reduced and the generator source voltage and frequency have reached an acceptable level. The transfer switch prevents electrical feedback between two different power sources (such as the utility and generator sources) and, for that reason, codes require it in all standby electric system installations. The transfer switch consists of a transfer mechanism, utility service disconnect circuit breaker and a Smart A/C module incorporating fuses and two terminal blocks for transfer switch connections.

California Proposition 65 Warning.

View Warning Label

Features

Through the use of digital power technology, Generac's singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware

Designed for use with single-phase generators that utilize an Evolution or Nexus Controller

Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection

Simplify installation with a board that combines load management and transfer switch hardware

Decreases transfer switch complexity

Smaller fuses integrated into the control board

Gain even more flexibility when used in tandem with Smart Management Module

The Smart A/C Module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload)

Single-phase, 120/240-volt; UL listed transfer switch
