Generac 100 Amp Service Rated 120/240 Single Phase NEMA 3R Smart Transfer Switch

Item No. SKU# RXSW100A3
3.3 out of 5 Customer Rating
  • Available to Order
$579.00
Delivery to -
43215
- Est. Arrival Sat May 11 - Sat May 18 Edit location
Made In USA
  Free Shipping (Ground shipping to lower 48)
Acme Tools Guarantee
Generac 100 Amp Service Rated 120/240 Single Phase NEMA 3R Smart Transfer Switch
$579.00
Qty
Secure Checkout

Description

Generac 100 Amp Service Rated 120/240 Single Phase NEMA 3R Smart Transfer Switch

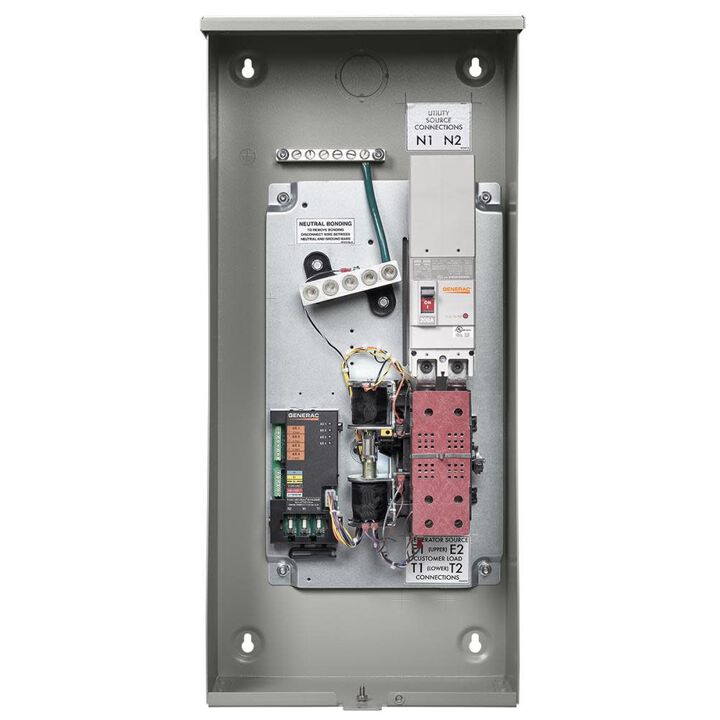

This 100 amp automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. Transfer of electrical loads occurs automatically when the utility power source has failed or is substantially reduced and the generator source voltage and frequency have reached an acceptable level. The transfer switch prevents electrical feedback between two different power sources (such as the utility and generator sources) and, for that reason, codes require it in all standby electric system installations. The transfer switch consists of a transfer mechanism, utility service disconnect circuit breaker and a Smart A/C module incorporating fuses and two terminal blocks for transfer switch connections.

View Warning Label

Features

Through the use of digital power technology, Generac's singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware
Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
Aluminum ENEMA/UL type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
Simplify installation with a board that combines load management and transfer switch hardware
Decreases transfer switch complexity
Smaller fuses integrated into the control board
Gain even more flexibility when used in tandem with Smart Management Module
100 Amp Service Rated 120/240 Single Phase NEMA 3R Smart Transfer Switch
Single-phase, 120/240-volt; UL listed transfer switch

Specifications

Brand Name
Generac
Assembled Weight (lbs)
22.5
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Depth (in)
9
Height (in)
21
MFG Part # (OEM)
RXSW100A3
Maximum Wattage (W)
16000
Package Contents
transfer switch
Package Depth
16.0
Package Height
9.0
Package Weight
20.0
Package Weight (lbs)
22.5
Product Condition
New
UPC
696471069648
Weight (lbs)
20
