Product Details

Gardner Bender Sperry Instruments HGT6520 Stop Shock II GFCI Outlet Circuit Analyzer Tester Detects Low Resistance Single LED Indication of Wiring Error 1/Ea

Gardner Bender

Please follow our Community Guidelines and be kind!

Description

Gardner Bender Sperry Instruments HGT6520 Stop Shock II GFCI Outlet Circuit Analyzer Tester Detects Low Resistance Single LED Indication of Wiring Error 1/Ea

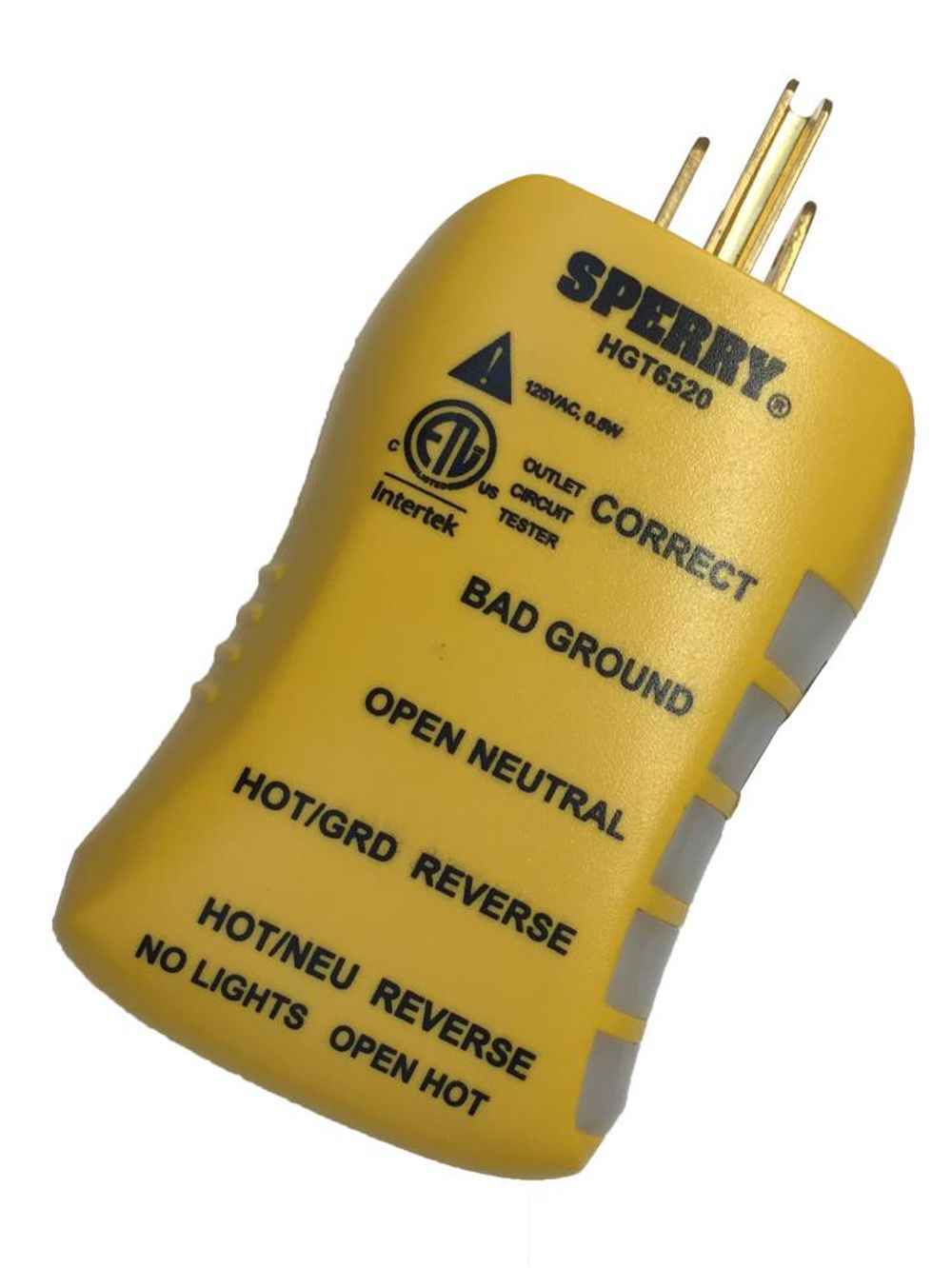

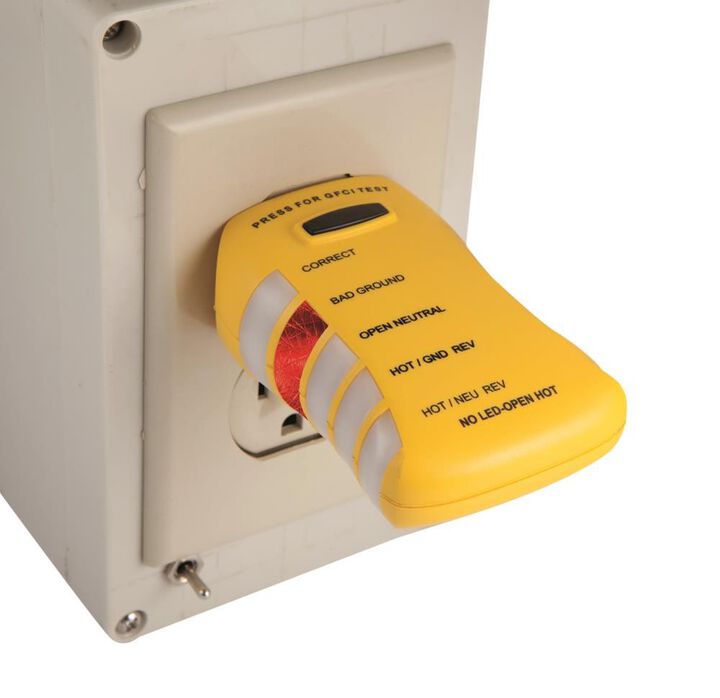

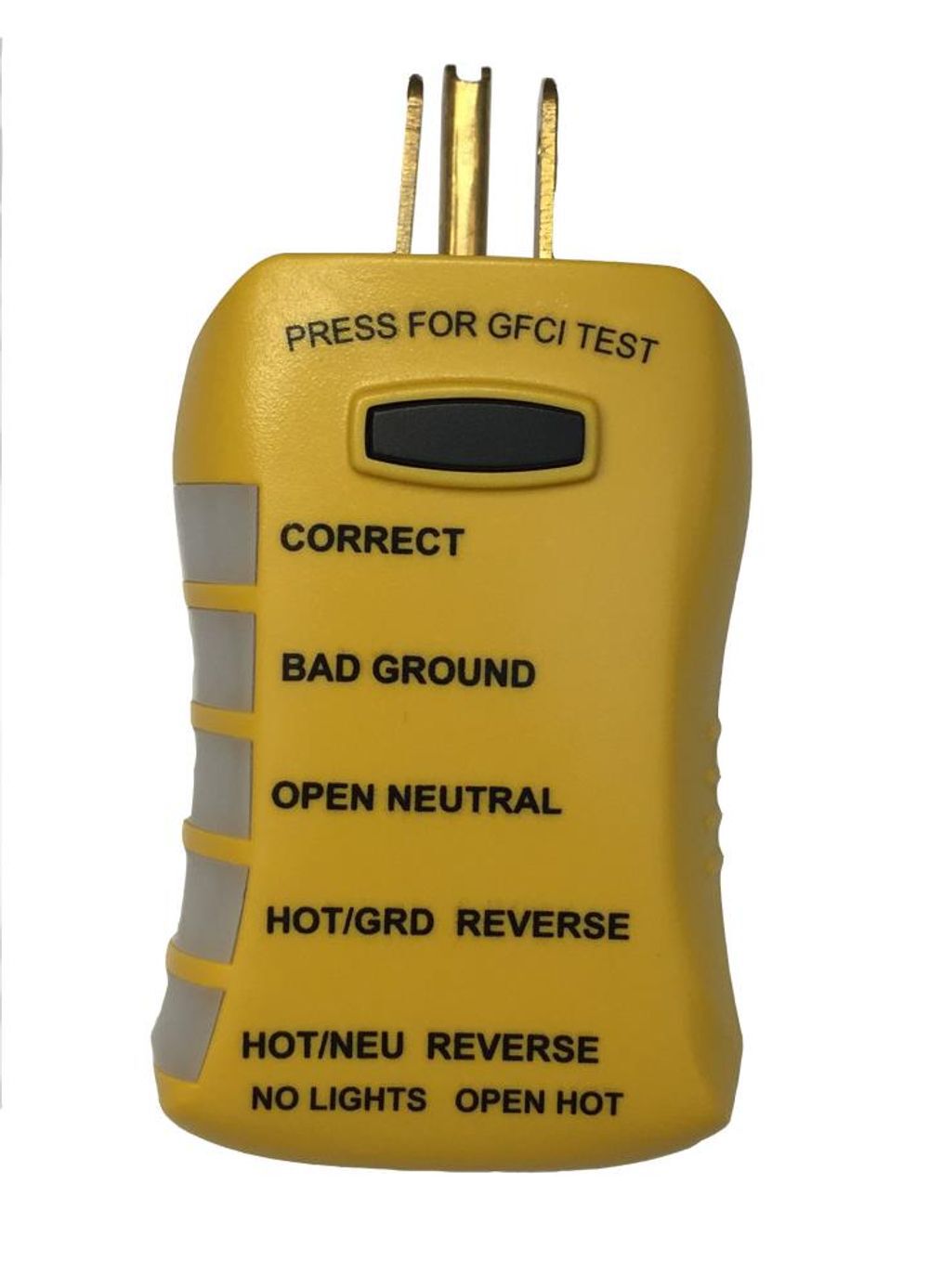

The Stop Shock II Circuit Analyzer makes it easy to test GFCI receptacles and determine the appropriate wiring correction needed. This GFCI tester uses advanced circuitry and a patent-pending proprietary design to precisely detect the required low resistance (less than 10ohms) on ground wire and provides a clear and easy-to understand single LED readout indication for correct wiring or bad ground, open neutral, hot/GND reverse, hot/nu reverse and open hot wiring errors without the need to memorize or decipher a dual-indication chart. The Stop Shock II includes a GFCI test function to test outlets wired in parallel to GFCI circuits (bathroom, kitchen and outdoor receptacles require GFCI protection). Designed for the jobsite this tester features hi-impact ABS housing with a 250 lb crush rating and the ability to withstand drops of up to 10 feet. Backed by a lifetime warranty this tool will speed up the testing process and increase your productivity for years to come.

California Proposition 65 Warning.

View Warning Label

Features

Bright 360° viewable LED indicator light

Single LED provides immediate indication of the wiring error, no need for a chart to carry, memorize or interpret

Beeping audible indicator confirms test completion

Advanced ground testing circuitry precisely detects the required low resistance values

Hi-impact ABS housing withstands a 10 ft drop and offers a 250 Lb. crush rating

Limited lifetime warranty

Sperry Instruments HGT6520 Stop Shock II GFCI Outlet Circuit Analyzer Tester, Detects Low Resistance, Single LED Indication of Wiring Error, 1/Ea

Specifications

Brand Name

Gardner Bender

Application

GFCI outlet receptacle tester detects resistance on ground wire instantly and tests for bad ground, open neutral, hot/ground reversed, hot/neutral reversed and open hot wiring

Assembled Weight (lbs)

0.25

Battery Size

No Battery Required

California Proposition 65 Warning Required

Yes

Color

Yellow

Country of Origin

China

DC Polarity Indicator

DC Voltage
